Huge discount for expandable container house

September promotion discount for our expandable container house.



The ADIDRF-5 model is with two bedrooms,one bathroom,one kitchen



one 40HC container can load 2 sets (MOQ) .



the price is USD 9,299/SET EXW(previous price is $10,301/set)



specification is as follows



1)openable size 5850mm*6085mm*2500mm Closed size: 5850mm*2250mm*2500mm)

2)75mm eps sandwich panel for wall and roof

3)16mm reinforced MGO board+1.6mm pvc tile for floor

4)with 1 aluminum double glazed hinged door(W1260*H2000mm), 8 pvc double glazed sliding windows(930*930mm), 1 bathroom exhaust fan ;

5)with electricity, DB box, switch, sockets, A/C sockets, wires, etc.;

6)with bathroom(shower ,shower tray,seat toilet,wash basin,plumbing)

7)with two bedrooms

8)with 1.8m long kitchen

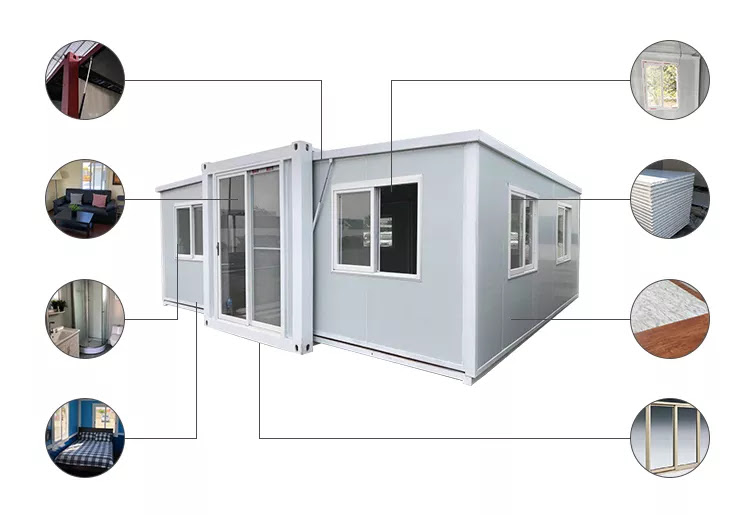

The advantage of our expandable container house is as follows



1. as you know, the folding design request it with thicker frame to avoid bending during folding and unfolding.we are using thicker steel frame,the top main beam is 5mm thickness,and some supplier just use 1.5mm thickness steel.



2. We are using 75mm thickness insulation,and some supplier only use 50mm thickness insulation.



3. The space between our floor secondary beam is 380mm,this will make the floor structure strong and not shake.but for some supplier,their space between the secondary beam is 600mm

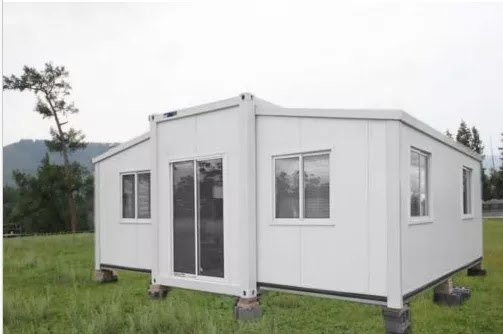

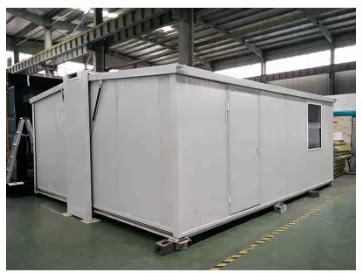

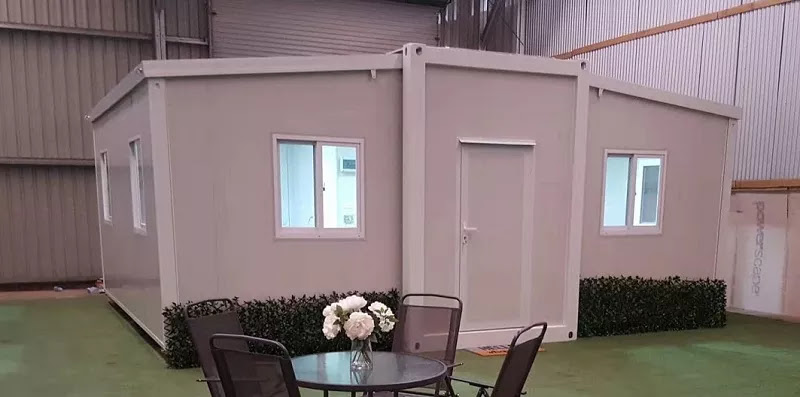

Expandable container houseis convenient to assemble,can be moved frequently,more importantly,large space for mobile living. all fittings are pre-installed in our factory ,it will be folded to be loaded in shipping container.when arrive your place,just expand it.can be installed in 10 minumtes



It can be used as a granny flat, spare room, rental investment, first home, downsizing, deluxe mining camp accommodation, crib room, training room, office and accommodation for caravan & holiday parks, bed and breakfasts and more!



Option size openable size 5850mm*6062mm*2500mm Closed size: 5850mm*2250mm*2500mm)

Main material Galvanized steel structure with sandwich panel wall and doors, windows, etc.

Weight 3800kgs

Service life 30-40 years

Color White, blue, green, brown, or customized

Steel structure 3mm Hot galvanized steel structure with 4 corner casts and

(1)18mm fiber cement board;

(2)1.6mm PVC flooring;

(3)75mm rock woll ,eps sandwich panel

(4)Galvanized steel base plate.

Columns 3mm Hot galvanized steel structure

Wall 75mm EPS/Rock wool Sandwich Panel

Roof 3-4mm Hot galvanized steel structure with 4 corner casts and

(1)Galvanized steel roof covering;

(2)75mm eps sandwich panel sandwich panel ;

(3)75mm eps sandwich panel sandwich panel ;

Door Made of steel/aluminum frame

Dimension W930*H2040mm, furnish with a handle lock with 3 keys

or sliding glass door W1500*2000mm.

Window Made of PVC/aluminum fame.

Dimension W930*H1030mm, glazed with double glass in a thickness of 5/8/5mm.

Connection kits PVC Connection kits for ceiling, floor and walls.

Electricity 3C/CE/CL/SAA Standard,with distribution box, lights, switch, sockets, etc.

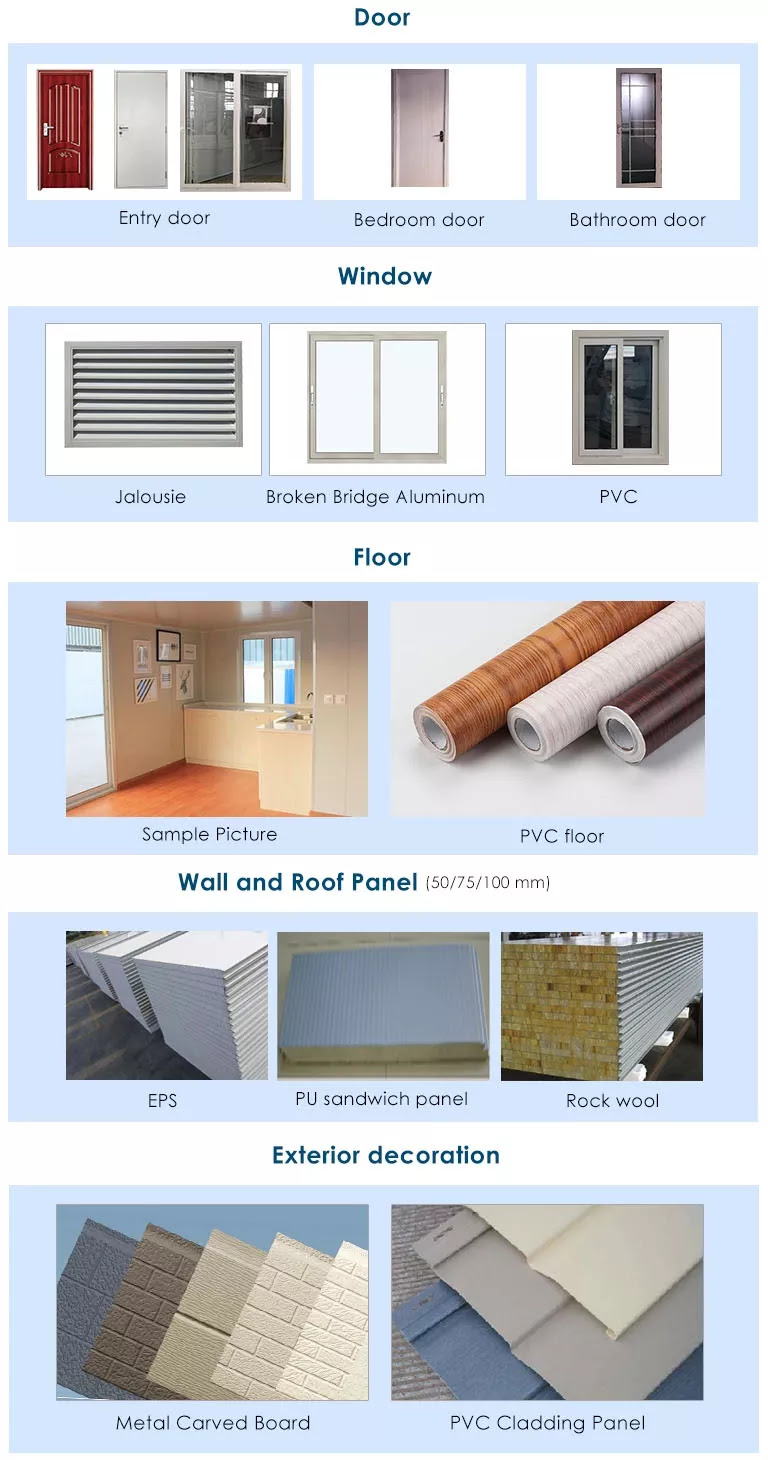

Optional Accessories Furniture, sanitary, kitchen, A/C, electrical appliance for accomodation, office, dormitory, toliet, kitchen, bathroom, shower, steel roof, cadding panels, decorative material, etc.

Advantage (1) Fast installation: 2 hours/set, save labor cost;

(2) Anti-rust: all material use hot glavanized steel;

(3) Waterproof: without wood ceiling,wall;

(4) Fireproof:Fire rating A grade

(5) Simple foundation:just need 12pcs concrete bolck foundation;

(6) Wind-resistant(11 level) and anti-seismic(9 grade)



MODELS OF OUR EXPANDABLE CONTAINER HOHSE

ADIDRF-S

open room with steel door



1)openable size 5850mm*4590mm*2500mm Closed size: 5850mm*690mm*2500mm)



2)75mm eps sandwich panel for wall and roof



3)16mm reinforced MGO board+1.6mm pvc tile for floor



4)with 1 steel door(930*2030mm), 3 pvc double glazed sliding windows(930*1130mm);



5)with electricity, DB box, switch, sockets, A/C sockets, wires, etc.;



ADIDRF-1

open room with steel door



1)openable size 5850mm*6062mm*2500mm Closed size: 5850mm*2250mm*2500mm)



2)75mm eps sandwich panel for wall and roof



3)16mm reinforced MGO board+1.6mm pvc tile for floor



4)with 1 steel door(930*2030mm), 8 pvc double glazed sliding windows(930*1130mm);



5)with electricity, DB box, switch, sockets, A/C sockets, wires, etc.;



ADIDRF-2

open room with sliding door



1)openable size 5850mm*6062mm*2500mm Closed size: 5850mm*2250mm*2500mm)



2)75mm eps sandwich panel for wall and roof



3)16mm reinforced MGO board+1.6mm pvc tile for floor



4)with 1 aluminum double glazed sliding door(W1300*H2000mm),8 pvc double glazed sliding windows(930*1130mm);



5)with electricity, DB box, switch, sockets, A/C sockets, wires, etc.;



ADIDRF-3

Open Space with a Toilet Layout



1)openable size 5850mm*6062mm*2500mm Closed size: 5850mm*2250mm*2500mm)



2)75mm eps sandwich panel for wall and roof



3)16mm reinforced MGO board+1.6mm pvc tile for floor



4)with 1 aluminum double glazed sliding door(W1300*H2000mm), 8 pvc double glazed sliding windows(930*1130mm), 1 bathroom exhaust fan ;



5)with electricity, DB box, switch, sockets, A/C sockets, wires, etc.;



6)with bathroom(shower ,shower tray,seat toilet,wash basin,plumbing)



ADIDRF-4

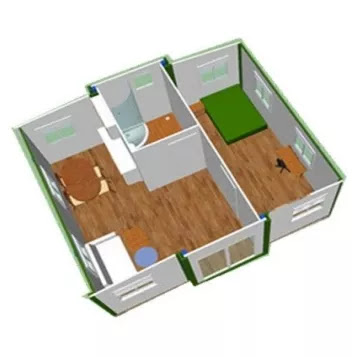

1 Bedroom Layout



1)openable size 5850mm*6062mm*2500mm Closed size: 5850mm*2250mm*2500mm)



2)75mm eps sandwich panel for wall and roof



3)16mm reinforced MGO board+1.6mm pvc tile for floor



4)with 1 aluminum double glazed sliding door(W1260*H2000mm), 8 pvc double glazed sliding windows(930*1130mm), 1 bathroom exhaust fan ;



5)with electricity, DB box, switch, sockets, A/C sockets, wires, etc.;



6)with bathroom(shower ,shower tray,seat toilet,wash basin,plumbing)



7)with one bedroom



8)with 1.8m long kitchen



ADIDRF-5

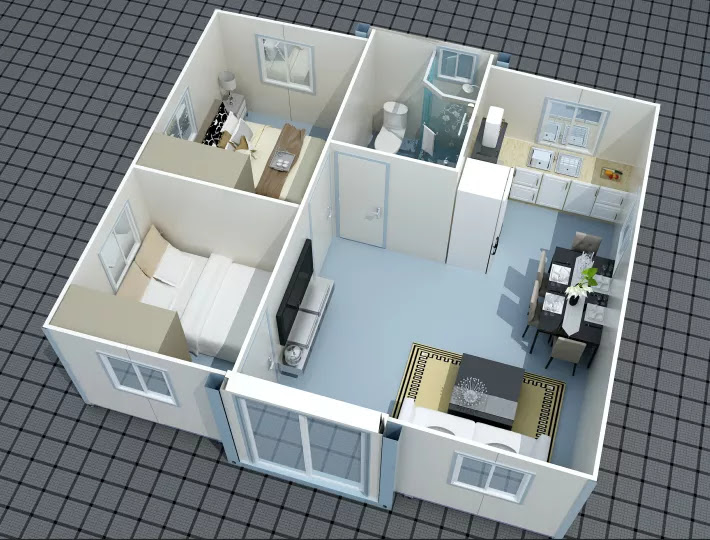

2 Bedroom Layout



1)openable size 5850mm*6062mm*2500mm Closed size: 5850mm*2250mm*2500mm)



2)75mm eps sandwich panel for wall and roof



3)16mm reinforced MGO board+1.6mm pvc tile for floor



4)with 1 aluminum double glazed sliding door(W1260*H2000mm), 8 pvc double glazed sliding windows(930*1130mm), 1 bathroom exhaust fan ;



5)with electricity, DB box, switch, sockets, A/C sockets, wires, etc.;



6)with bathroom(shower ,shower tray,seat toilet,wash basin,plumbing)



7)with two bedrooms



8)with 1.8m long kitchen

---

---

---
