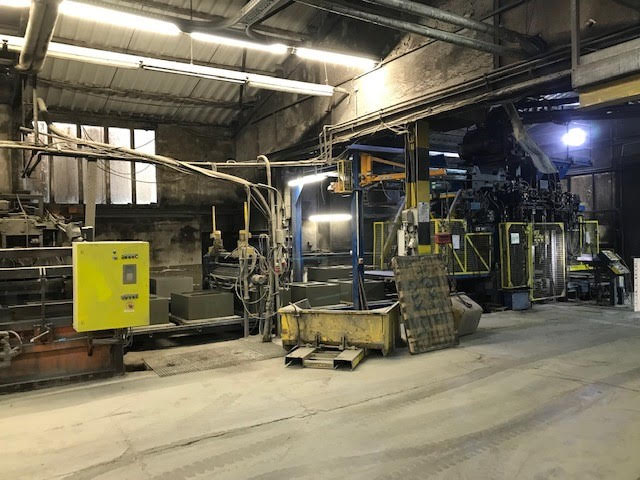

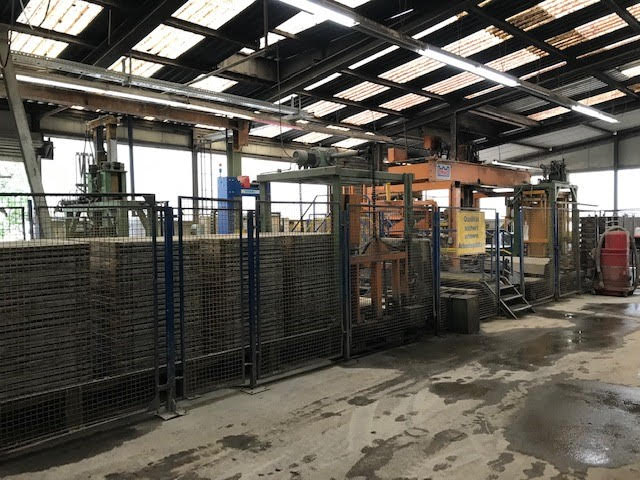

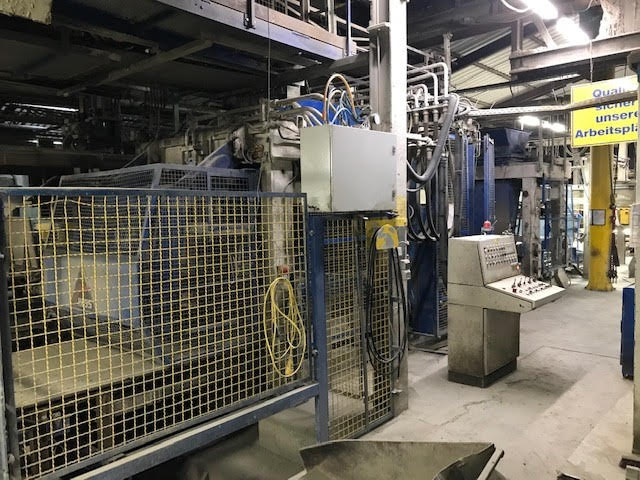

Used concrete block production plant Hess / Omag double plant including mixing plant

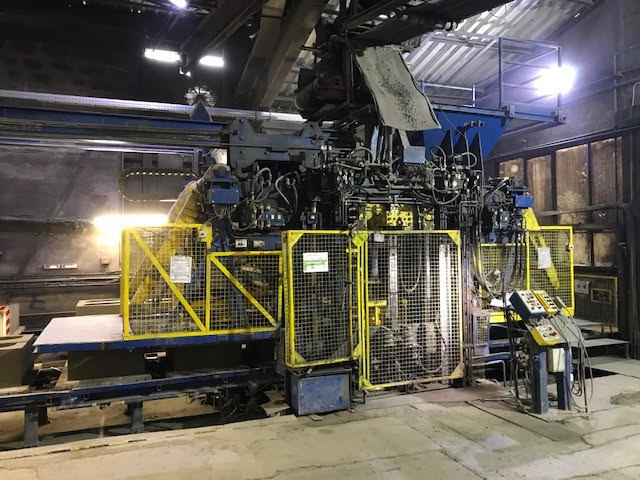

Machine compilation used concrete block plant make Hess Multimat RH 2000 board finisher with core and attachment



Pos. 1 concrete block making machine make Hess type. Multimat RH 2000 (board finished) core and attachment

Board size 1400 x 950 mm Year of construction 1998 Control Simatic S 5 S 7

item 2 hydraulic

Pos. 2 intermediate transport

Pos. 3 coating system

Pos. 4 Elevating ladder 12 floors double butt board size 1400 x 950 mm floor spacing 250 mm / 500 mm

Pos. 6 vehicle group 12 / 6 floors double stack, support arm adjustment, board size 1400 x 1050 mm with turntable, floor spacing 250 mm / 500 mm Control Simatic S 7 distance recording stage with laser data transmission optical./laser

Pos. 7 lowering ladder 14 floors, double butt Board size 1400 x 950 mm, distance between floors 320 mm

Pos. 8 stone remover / pusher

Pos. 9 granulate spreader (option) may continue to be used

Pos. 10 stone doubler

Pos. 11 pallet destacker

Pos. 12 packager

Pos. 13 board brush

Pos. 14 board turner

Pos. 15 board slider

Pos. 16 Board cross transport

Pos. 17 board transport

Pos. 18 slat conveyor

Item 19 horizontal strapping 2021 (option) may be reused

Pos. 20 vertical strapping steel strap

Pos. 21. Complete control for manual and automatic operation of the system

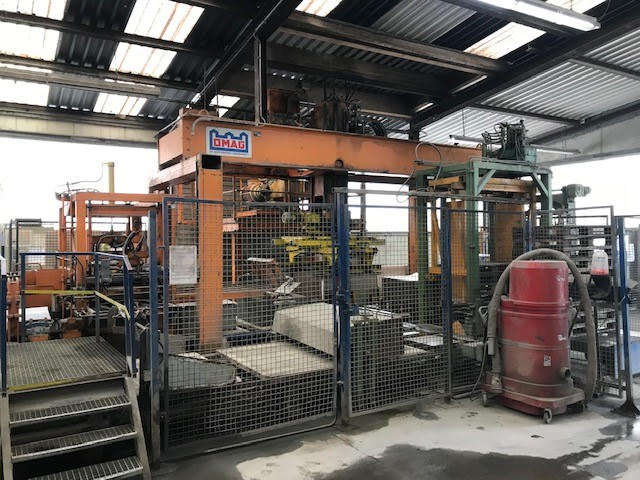

Machine compilation used concrete block plant make Omag type. 140 / 90 S 22 with core and attachment.



Pos. 1 concrete block making machine make Omag type. 140 / 90 S 22 (board finished) core and attachment

Board size 1400 x 950 mm year of construction 1984 control new 2022

item 2 hydraulic

Pos. 2 intermediate transport

Pos. 3 board feed

Pos. 4 car wash

Pos. 5 post-treatment (rinse blow off)

Pos. 6 Elevating ladder, 12 floors, double butt board size 1400 x 950 mm, floor spacing 250 / 500 mm

Pos. 7 vehicle group 12 floors double stack, board size 1400 x 1050 mm with turntable, support arm adjustment 12 / 6 floor distance 250 mm / 500 mm Control Simatic S 5 / S 7 distance recording platform with laser data transmission optical./laser

Pos. 8 lowering ladder 12 levels double butt Board size 1400 x 950 mm Level distance 250 / 500 mm

Pos. 9 Board return transport / clearing track

Pos. 9 stone remover

Pos. 10 stone doubler

Pos. 11 Horizontal strapping (option may continue to be used)

Pos. 12 lifting table

Pos. 13 sliding table

Pos. 14 curb packaging

Pos. 15 slat conveyor

Pos. 16 Vertical strapping plastic

Pos. 17 board brush

Pos. 18 Board cross transport

Pos. 19 board turner

Pos. 20 board stacking device

Pos. 21. Board stacking track

Item 22 Steel vertical strapping

Pos. 23 Approx. 1550 pieces used underlay boards 1400 x 950 x 55 mm

Pos. 24 Complete control for manual and automatic operation of the system

Option : Shapes



Price: on request

---

---

---
