BTR80



We are pleased to offer, subject unsold or market withdrawal:

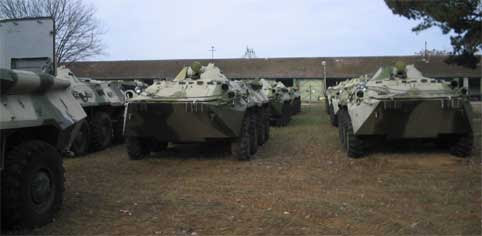

BTR-82A (refurbished new engines etc..) - 14 pcs: 950,000.00€



Ukraine not accepted



armored personnel carrier btr-80a



GENERAL INFORMATION



Designations



BTR-80A



Manufacturer(s)



GAZ, now Arzamas Machinery Construction Plant



Status



Production as required. In service with Russia and others.



Production Period



circa 1995-present



Production Quantity



over 300



Type



APC



Crew



2 + 8



Length, overall



7.7m



Length, hull



7.7m



Width, overall



3.0m



Height, overall



2.8m



Combat Weight



14550kg



Unloaded Weight



n/a



Radio, external



R-4163-50U



Communication, crew



R-174 intercom



FIREPOWER



Main Armament



30mm 2A72 gun



Ammunition Carried



300x30mm



Gun Traverse



360



Elevation/Depression



+70/-5



Traverse Rate



n/a



Elevation Rate



n/a



Gun Stabilization



no



Rangefinder



n/a



Night Vision



yes



Auto-Loader



yes



Secondary Armament



7.62mm PKTM (coaxial)

small arms



Ammunition Carried



2000x7.62mm



BTR-80A



MOBILITY CHARACTERISTICS

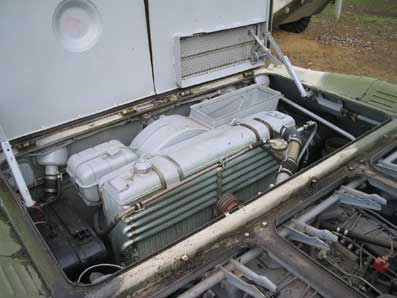

Engine



YaNZ-238M2 V8 turbocharged diesel



Transmission



manual (5 forward, 1 reverse)



Horsepower



240hp



Suspension



torsion bar with hydraulic shock-absorbers



Power/Weight Ratio



17.9hp/t



Configuration



8x8



Speed, on road



80km/h (1)



Wheelbase, overall



4.40m



Fuel Capacity



n/a



Tires



11.50 x 400-457 (tubeless)



Range, on road



600-800km



Ground Pressure



n/a



Fuel Consumption



n/a



Gradient



60%



Turning Radius



n/a



Side Slope



42%



Ground Clearance



0.48m



Vertical Obstacle



0.5m



Angle of Approach



n/a



Trench Crossing



2.0m



Angle of Departure



n/a



Fording



amphibious



SURVIVABILITY FEATURES



Smoke Laying



6 x 81mm smoke grenade launchers



NBC Protection



yes



Armor Details



n/a



NOTES



(1) Maximum speed 9km/h on water.



Specification and photos are not contractual and are subject to verification upon inspection
