Diesel Generator Niigata 4 MWe / 50 Hz HFO Never Installed

Never used medium speed Niigata HFO / Diesel fuel generator with Nishibhiba made air cooled 11 kV synchronous alternator with auxiliaries. All equipment was manufactured in year 2017 and they were never installed. Engine can run with normal diesel fuel of 180 cSt heavy fuel oil. Engine has two intercooled turbo chargers, on built lubrication fuel filter and engine driven cooling and lubrication pumps. Auxiliaries includes control panel, fuel booster unit for 180 cSt HFO, fuel oil filter, tools, and spares.



Delivery term CIF Major Asian Port (packed for sea transportation)



Payment term Wire Transfer, 10% escrow with the order, 80% ready to ship 10% against shipping documents



Other terms will be sold as-is condition



Validity 60 days, subject to prior sale without notice

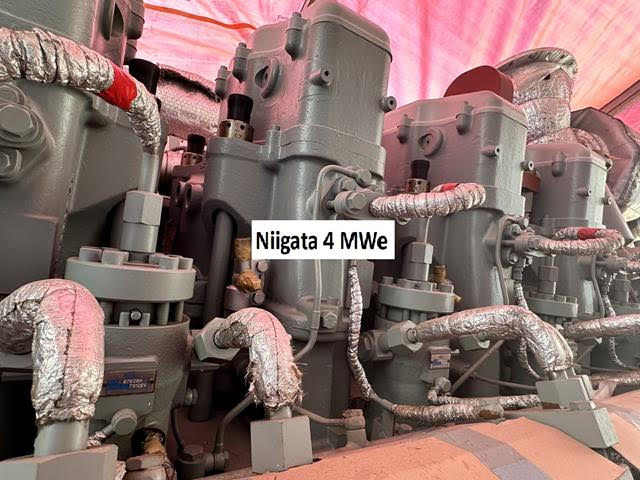

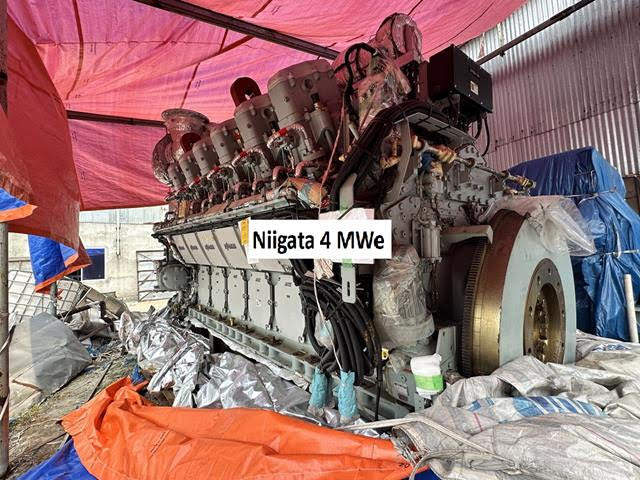

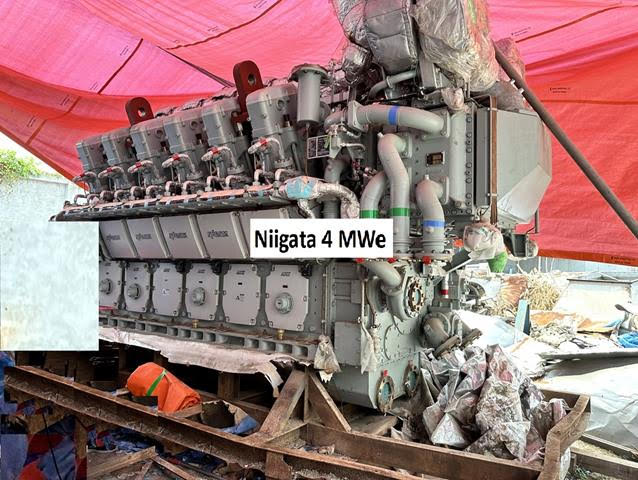

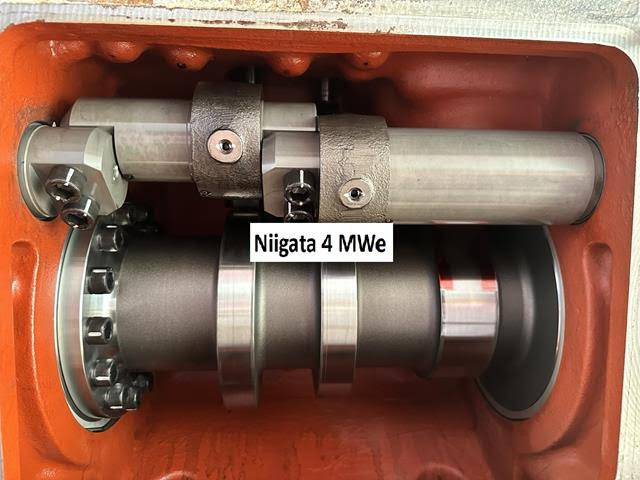

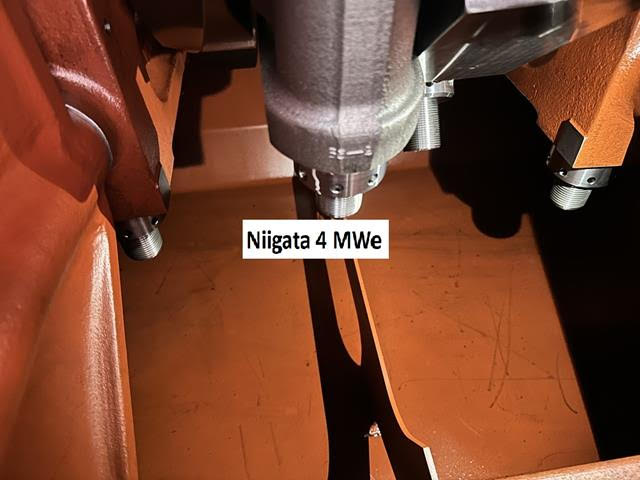

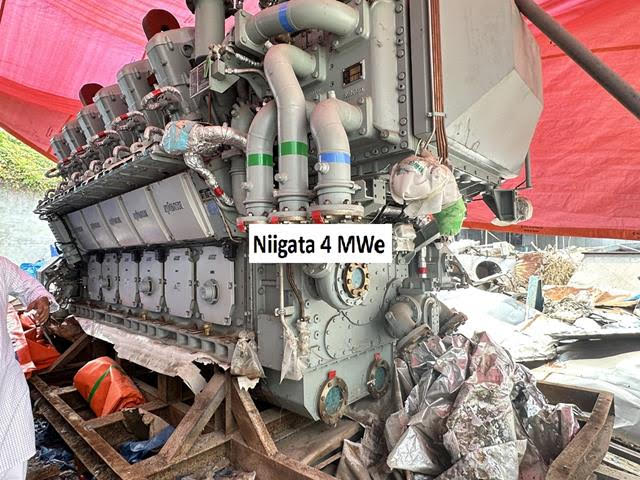

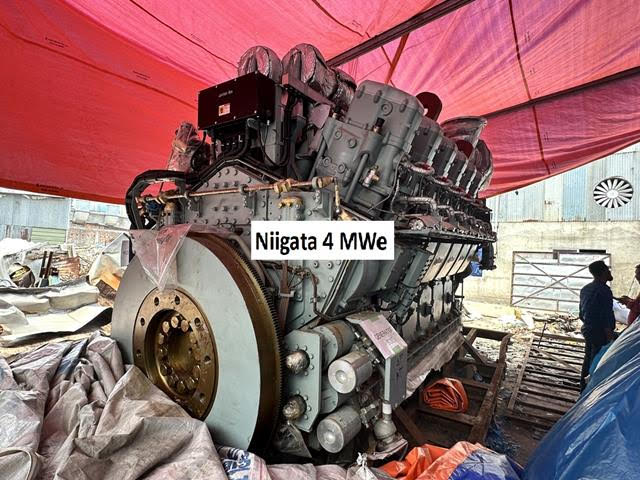

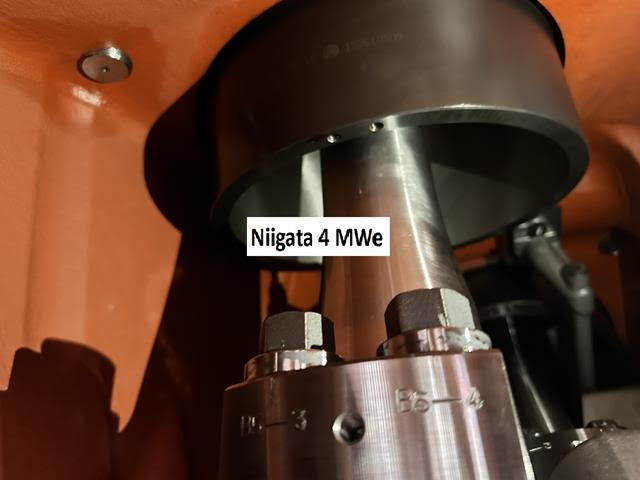

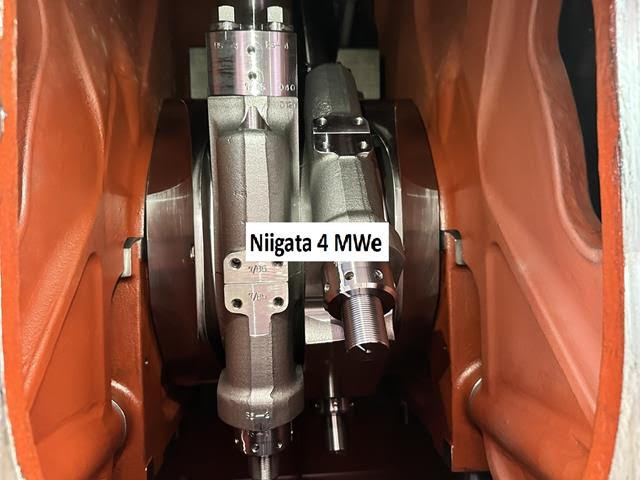

Attached Recent pictures



Original Niigata Specification



Dimensional Gen Set Drawing



Technical characteristics

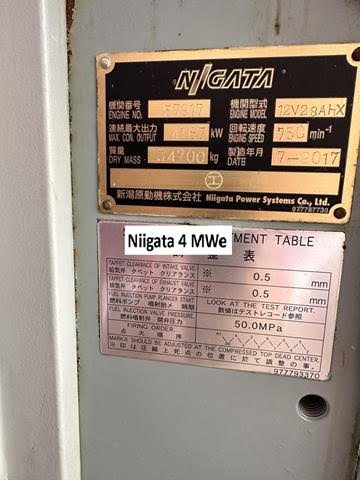

Manufacturer Niigata, Japan



Engine type 12V28 AHX



Manufacturing year 2017



Operating hours since new Zero (only FAT)



Electric output 4000 kWe / 11 kV / 50Hz at ISO condition



Configuration 12 cylinder V engine, 750 rpm, turbo charged

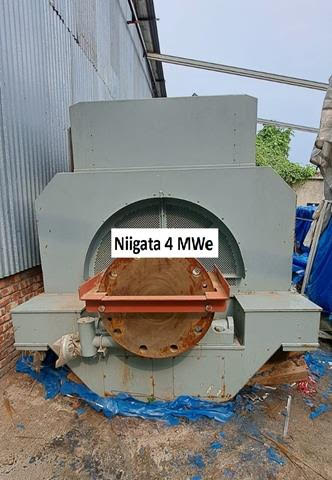

Alternator Nishibhiba 5000 kVA / Cos fee 0.8, / efficiency 96.0 %



Fuel Diesel and max 180 cSt HFO at 50C



Fuel consumption 182 g/kWh at ISO condition with 5% tolerance



Lubrication oil consumption 0.8 gram / kWhe with 10% tolerance



Engine weight approx 34 metric tons



Alternator weight approx 19.3 metric tons



The price is $2 Mil CIF any Asia port
