We are pleased to offer GE TURBINE , as per the below detailed offer

Price : USD 14,950,000 Ex Site USA

Immediate Delivery

UNUSED OUTDOOR HOUSED GE MODEL MS5001PA DLN GAS TURBINE GENERATOR SET



Gas turbine ISO rating: 26 0 6 0 KW Base Load



Fuel: Natural gas 1 0 28 BTU (2 0, 699 BTU/LB, LHV) Natural gas Pressure 363 PSI



Efficiency: 27.7% (12,8 0 7 BTU/KWH based on site rating) Exhaust : 850 Deg F



Nox 25 ppmvd base load



Speed 51 00 rpm



Design API 616



Starting Motor



Gear reducer 51 0 0/18 00 rpm



Generator



Rating 4 0,00 0 kva KW 3 0,00 0 KW PF 0. 75



Voltage 138 00 v/3/60 hz



Speed 18 00 rpm



Frame A18384



Type TEWAC



Scope of supply



Gas turbine compartment GE MS5 00 1PA, DLN , 26 ,0 6 0 KW ISO rated, natural gas fuel, 51 00 rpm, starting motor, accessory gear reducer .



Lube oil system includes lube oil pump, lube oil cooler , local gauge board panel, skid piping and instruments



Air inlet system includes self-cleaning filters, air ducts, silencer, support structure, ladder and



Walkway , expansion joint, inlet bleed inlet heating piping



Enclosure ventilation fan with motor, air ducts inlet and exhaust duct



Transition duct from the turbine to the stack, the stack itself and the supports



Co2 firefighting skid



GE Energy Power Conversion generator skid with load gear 51 00 rpm to 18 00 rpm , 40 ,000 kva,



138 00 v/3/6 0 hz, 18 00 rpm



TEWAC, cooler , generator terminal box



Turbine exhaust expansion joint



Motor control center



Switchgear off the generator



Mark VIe turbine control panel



Exciter EX210 0 and AVR control panel



Generator protection, synchronization and control panel Alignment fixture



Load gear coupling guard



Fuel Gas piping



The inlet bleed heating piping



External lube oil piping



DC Panel



Turbine enclosure and Generator walkways and ladder



Turbine and Generator foundation bolts



Manual and drawings



Estimate dimensions and weights:



GE Turbine Skid: 39” L x 12 W x 13 H; 200,000 lbs



Generator Skid: 24 L x 12 w x 12 H; 210,000 lbs



2014

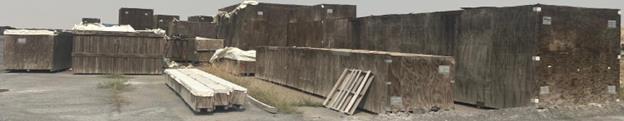

Built 2 0 14 , stored in original

---

---

---
