General Electric Frame 7EA Gas Turbine Generator



Price: $2,950,000.00 USD

As is, Where is



General Electric Frame 7EA Gas Turbine Generator Set Consist of Following:

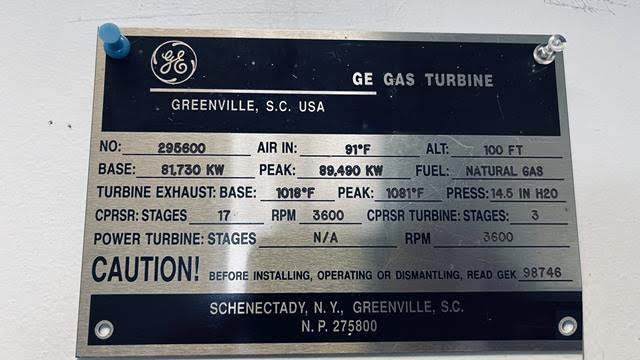

-GE 7A1PEA38-1 Gas Turbine, Duel fuel, Base Rated 81,730 KW, Peak rated 89,490 KW, Water Injected Combustion with Inlet Air Cooled, Heat Rate at ISO 10,480 BTU/KWH , 3600 RPM CCW Rotation

-GE 800 HP Motor Starter, Model 8213825402, 3570 RPM, Frame 8211Z, 2300/4000 Volt, Built 1997

-Philadelphia Accessory Gear Box with Atomizing Air Compressor

-Side Exhaust to HRSG

-Steam Injected for NOX Control

-Worthington Natural Gas Compressor

-Liquid Fuel Pump and Supply System

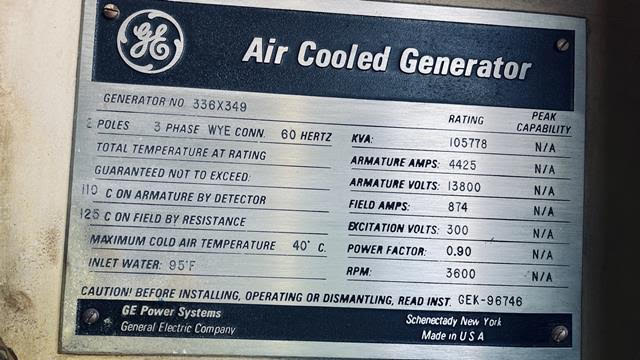

-GE TEWAC Generator rated 105,778 KVA, 13800 VOLT, 3 Phase, 60 HZ, PF: 0.9, 4425 AMP, 300 Exciter Volts , Field AMPS 874. 3600 RPM

-Mark IV control system, EX2000 exciter

-GAC with GE Type VVC-13.8-1000-0GV Circuit Breaker

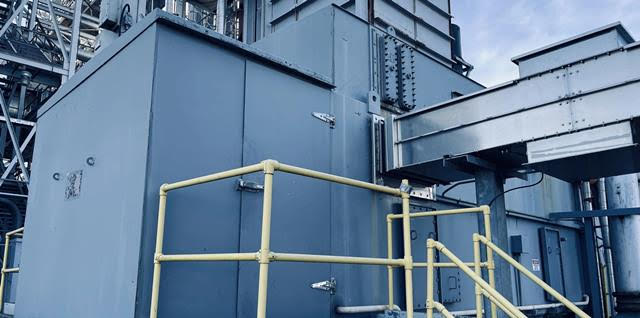

-Enclosure Indoor Housed



History:

Unit Startup 3-1-1992, Shutdown 2022.

Total Hours 61344 Total Starts 5590

Major Inspection and Upgrade 2000, Last Overhaul 2013 Approx. 3000 Hours Since Last Overhaul

Still Installed in Place
