Siemens SGT5-2000E CCPP Plant- Photos / Details



Siemens SGT5 -2000 E - Combined Cycle Power Plant - 670 MW - Highly suitable for Data Center Application - ZERO Hours

Siemens Turbines:SGT5-2000E,year:2012 , Dry Low Nox



Each power:166 MW ,10.5 KV,50 Hz



Total Firing Hours : Zero



Fuel : Natural Gas



With steam turbine,steam turbine alternator



Still some components are in Original crates



Total power of each unit:166 MW +57.3 MW =223.3 MW



3 Modules x 223.3 = 670 MW



Scope:Turbine+Alternator+Cooler+Lube+Added Gas+Water treament+Steam tank+steam turbine+HRSG+Steam turbine alternator+Chimney+Tube+Fire fighter+transformer+Control



+High volt cabine+low volt cabine+mcc+Hv comp art



Price : USD 130 Million FOB China Port , For the complete plant



Scope of Supply :



1) 3 Nos Siemens SGT5 - 2000E Turbines + Alternators + All Turbine accessories ( 3 Sets )

2) 3 Nos Siemens Steam Turbines + Alternators + All Steam Turbine accessories ( 3 Sets )

3) 3 Nos HRSG Sets + ACCESSORIES

4) Cooler

5) Lube

6) Added Gas Treatment Plant

7) Water Treatment Plant

8) Steam Tank

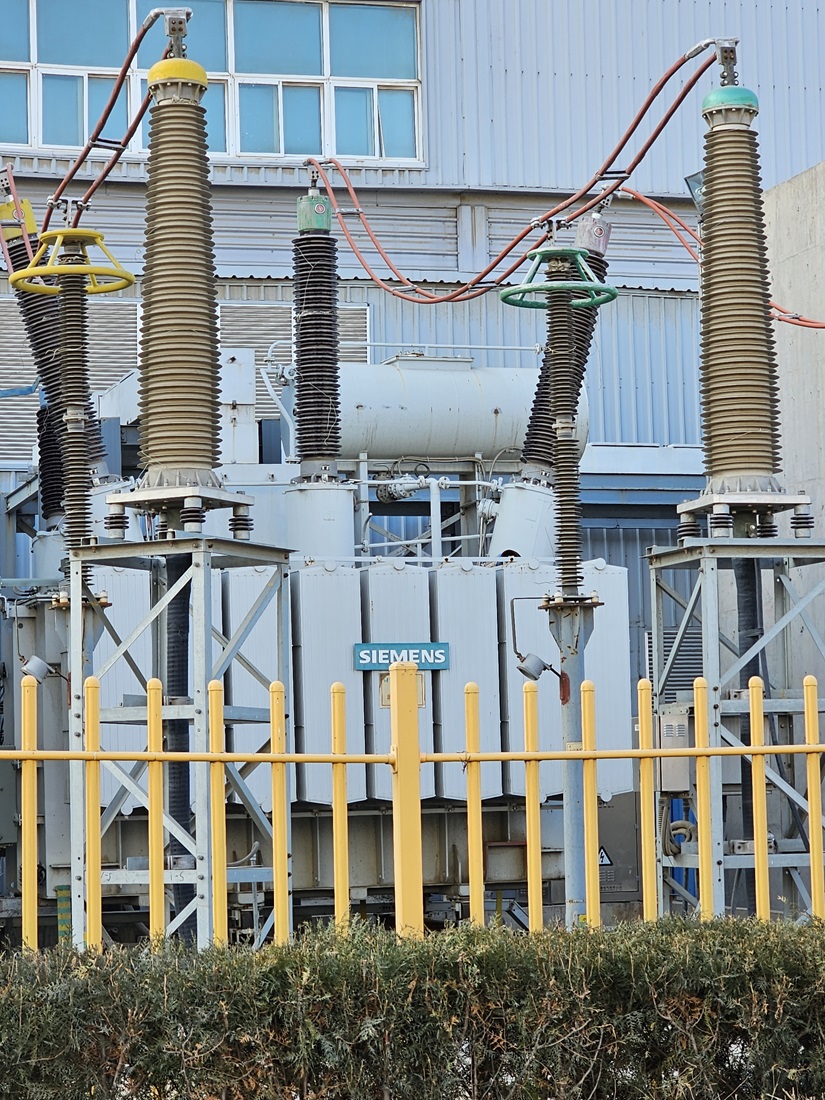

9) Transformer Sets

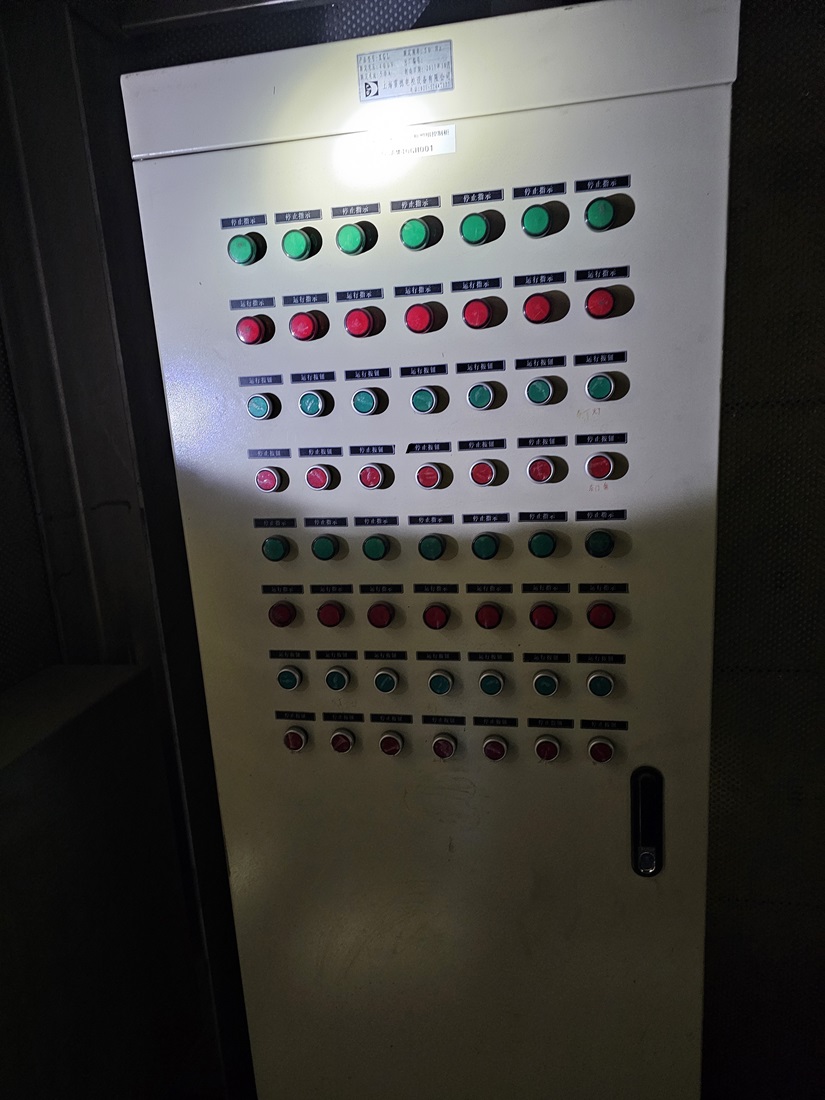

10) Central Control unit

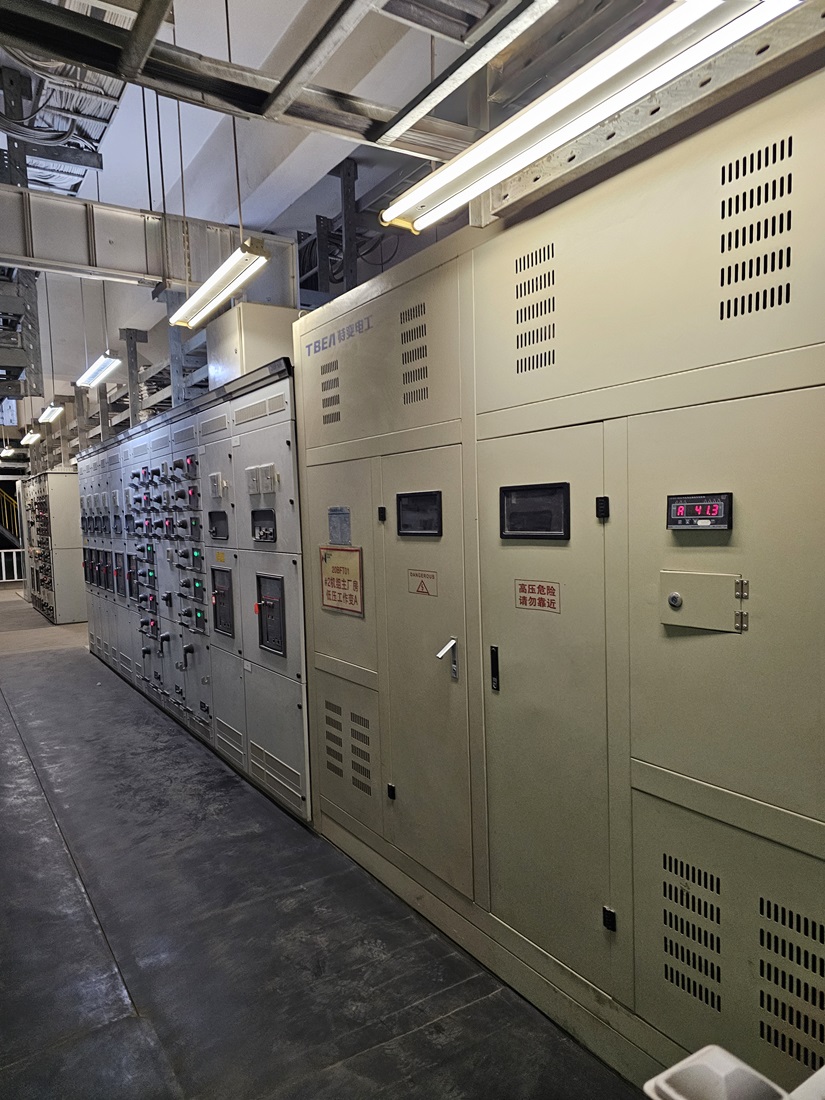

11) High Voltage Cabinet

12) Low Voltage Cabinet

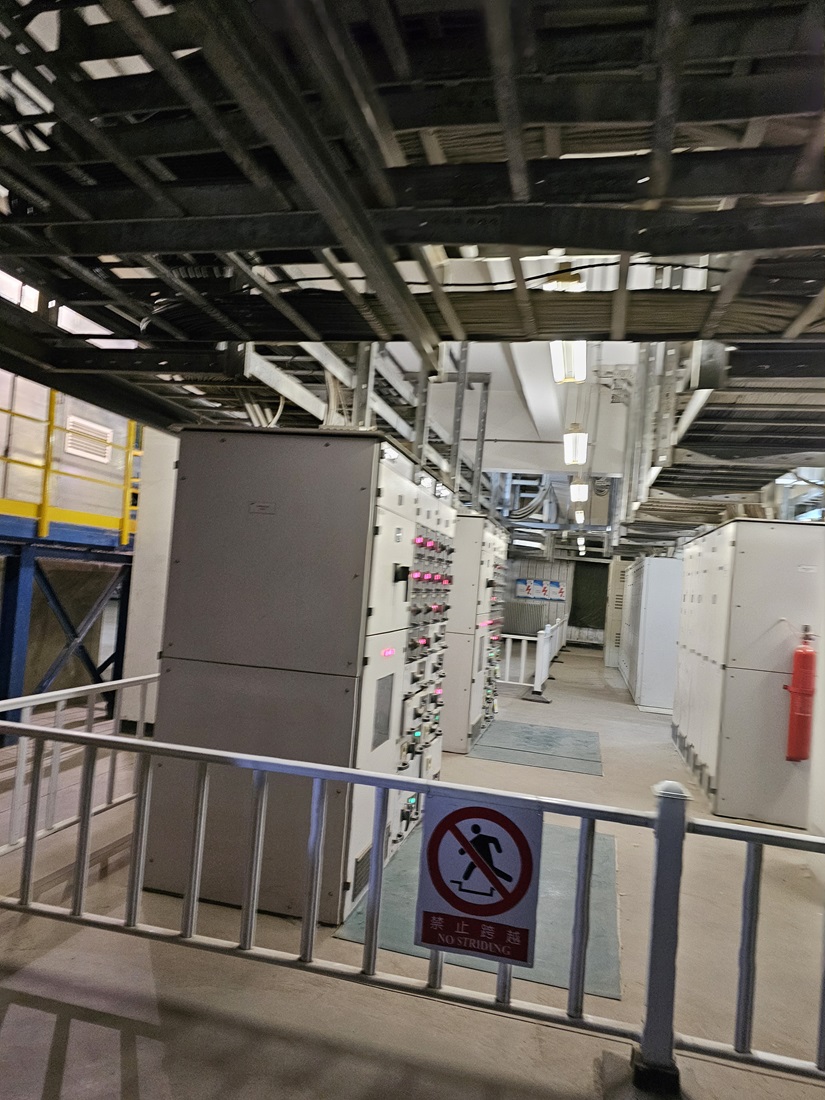

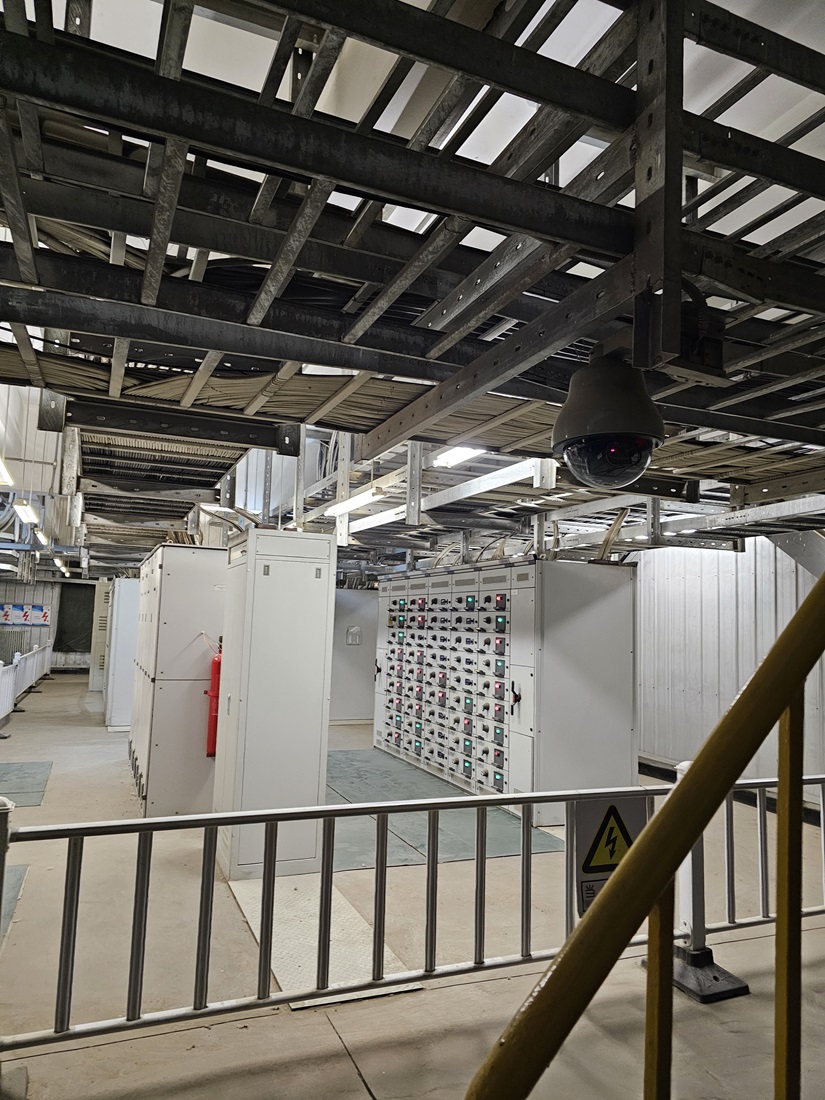

13) MCC

14) Fire Fighter units

15) HV Complete Art

16) Chimney Units



Payment Terms :



1st payment, 20% after visual and boroscope inspection

2nd payment, 45% with the start of dismantling the equipment.

3rd payment, 15% by the completion of packing the two units with all the

accessories above.

4th payment, 10% with equipments reaching China Port

5th payment, 10% after having the bill of lading and shipping documents.



Delivery : 2 Months after Advance Payment



Inspection : Can be arranged , subject to Terms , 10% deposit into escrow and USD 12,000 Towards inspection visit expenses to be paid by the customer .



This amount will be deducted upon successful contract .



Enclosure : Photos / Video / Turbine specifications

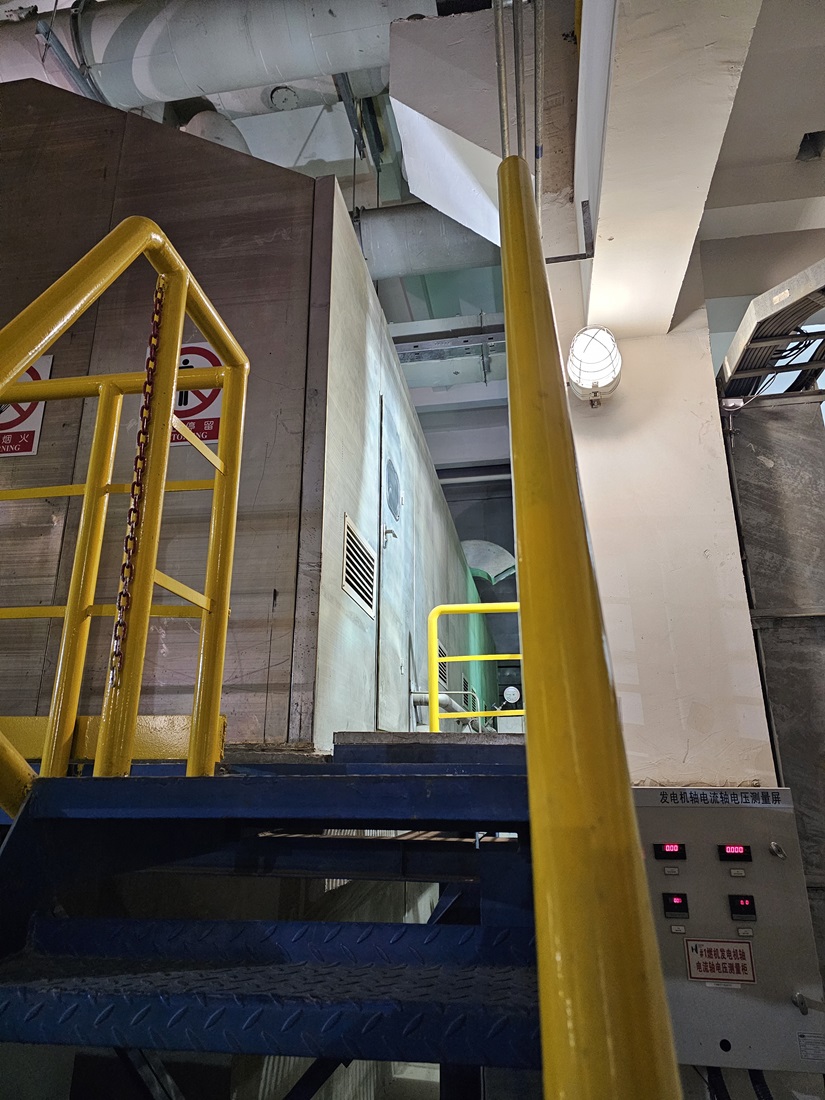

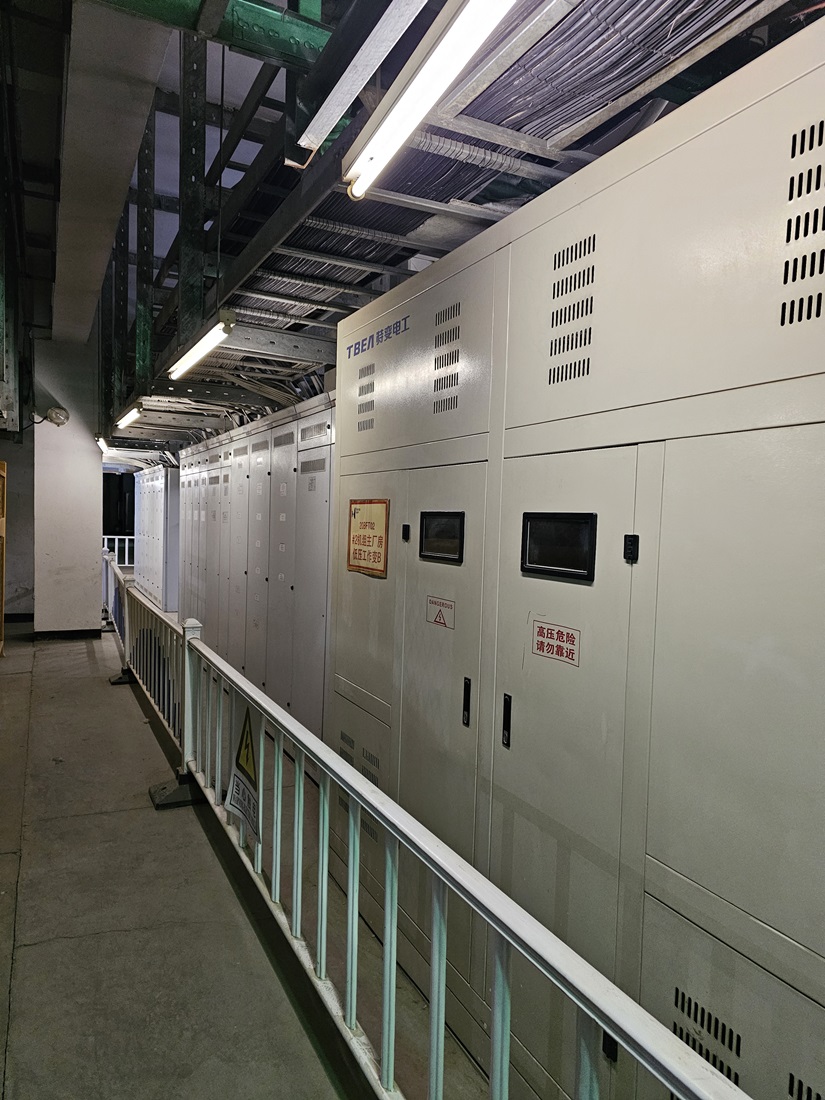

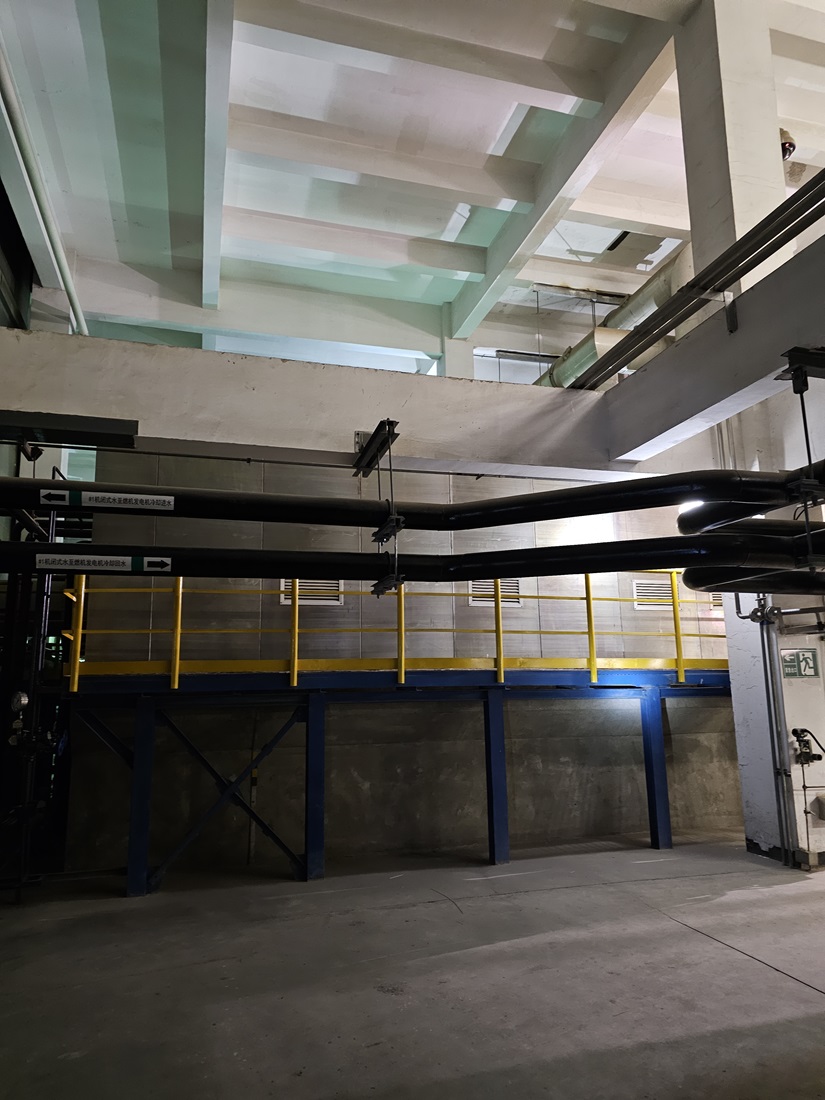

Please find photos and other details

These are stored as per Siemens Protocol .
