A little used 60MW Steam Turbine Power Plant (60Hz, Co-generation Type) (Turbine)



60MW Steam Turbine Power Plant (60Hz, Co-generation Type)

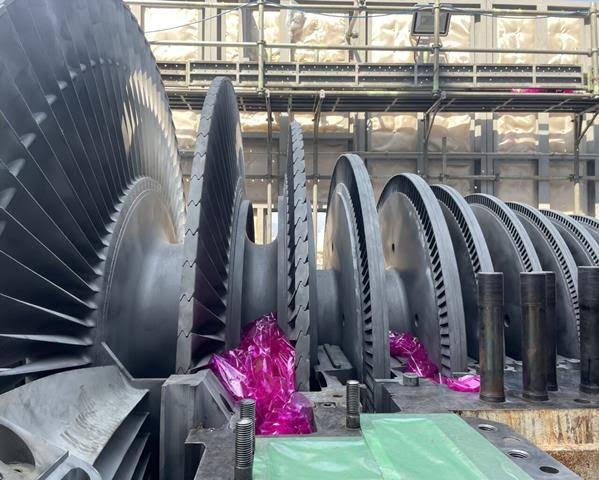

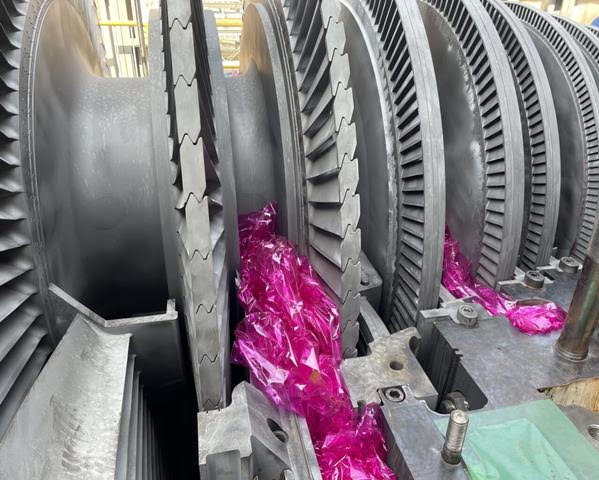

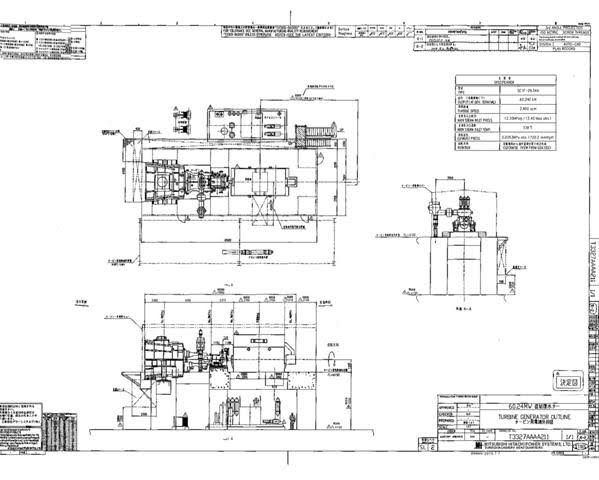

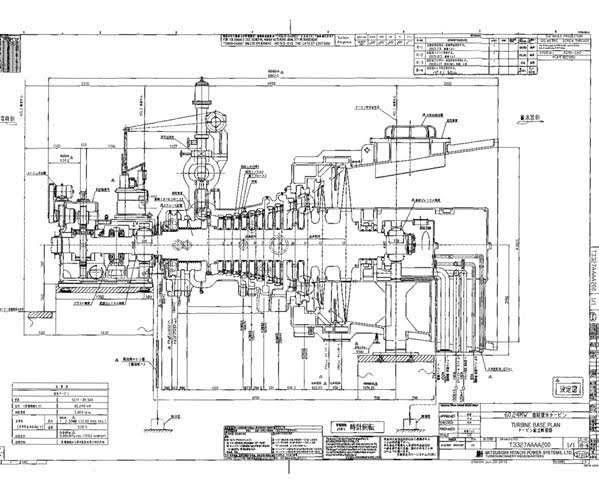

(Turbine)



Manufacturer: Mitsubishi-Hitachi Power Systems (Japan)



Manufacturing year: 2017



Start year: 2018



Stop year: 2021



Type: Direct (Turbine-Generator), Condensing Turbine



Location : JAPAN



Turbine speed: 3600rpm



Main steam inlet pressure: 12.3MPa



Main steam inlet temperature: 538 °C



Exhaust pressure: 0.0053MPa abs



Rotation: Clockwise (view from generator side)



Fuel: Coal / wood biomass (construction waste materials, etc.)/ RPF

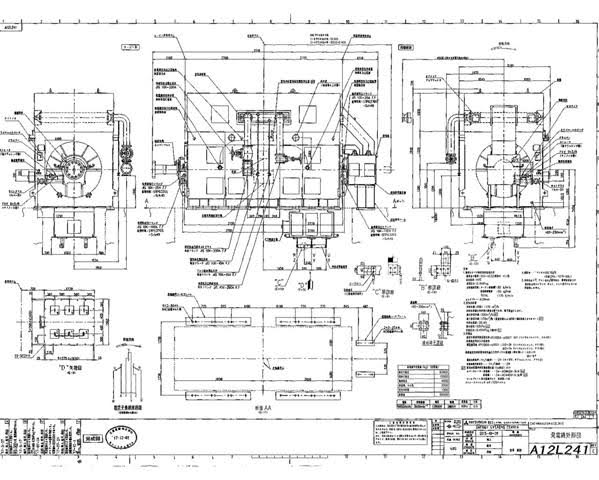

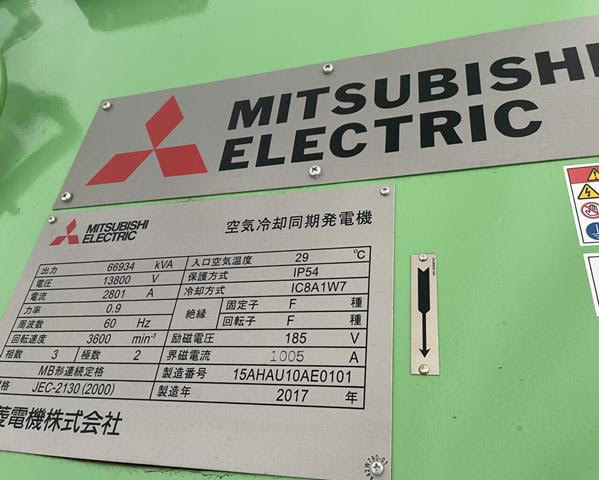

(Generator)



Manufacturer: Mitsubishi Electric (Japan)



Manufacturing year: 2017



Capacity: 60.24MW ( 66,934kVA)



Voltage: 13800V



Current: 2801 A



Frequency: 60Hz



Speed: 3600 min-1



No. of Phase: 3



No. of Pole: 2



Power fact: 0.9



Excitation voltage: 185V



Field magnetic current: 1005 A



Type: Air cooling, Synchronous



Cooling type: IC8A1W7



(Brushless excitation)



Manufacturer: Mitsubishi Electric (Japan)



Manufacturing year: 2017



Capacity: 210kW



Voltage: 185V



Current: 1136 A



Speed: 3600
