Steam Turbine Power Plant 13 MW – 60 Hz Mitsubishi. Fuel QUALITY Coal

13MW Steam Turbine Power Plant

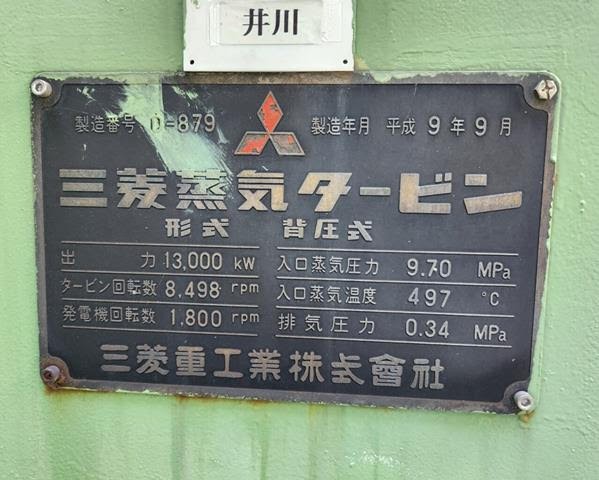

(Turbine)



Capacity: 13MW



Manufacturer: Mitsubishi(Japan)



Manufacturing year: 1997



Fuel: Bad Quality Coal



Type: Back pressure type



Inlet steam pressure: 9.7MPa



Inlet steam temperature: 497 ?



Exhaust pressure: 0.34MPa



RPM: 1800

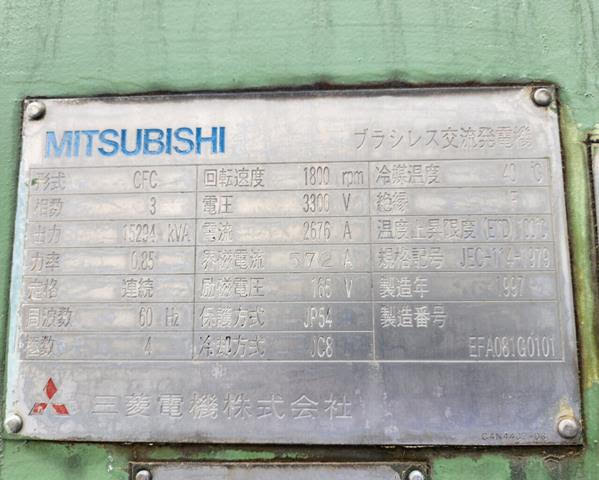

(Generator)



Manufacturer: Mitsubishi(Japan)



Manufacturing year: 1997



Output: 15294 kVA



Frequency: 60Hz



Volts: 3300V



Current: 2676A



Power factor: 0.85



RPM: 1800Phase: 3



Pole: 4



Field magnetic current: 572A



Field magnetic volt: 165V



Brushless type



(Boiler)



Type: Fluidized boiler



Fuel: Bad Quality Coal



Combustion in fluidized bed power creates a fluidized layer in



which the particle group is fluidized up and down when air is



blown from the bottom of an inert particle group such as



limestone, coal ash, and sand.



In the fluidized bed combustion boiler, the fuel burned is



surrounded by inert media, so even if the type of fuel, pot, and



moisture content change, the combustion is less affected, so



low-quality fuels that are not suitable for conventional



combustion furnaces such as pulverized coal combustion can



be used.



Location : JAPAN



POA
