2002 LM 6000PC SPRINT 47MW 60 Hz, 13800

Equipment: Two (2) General Electric LM6000 Gas Turbines



can be purchased at $46 Mil each.



TECHNICAL INFORMATION:

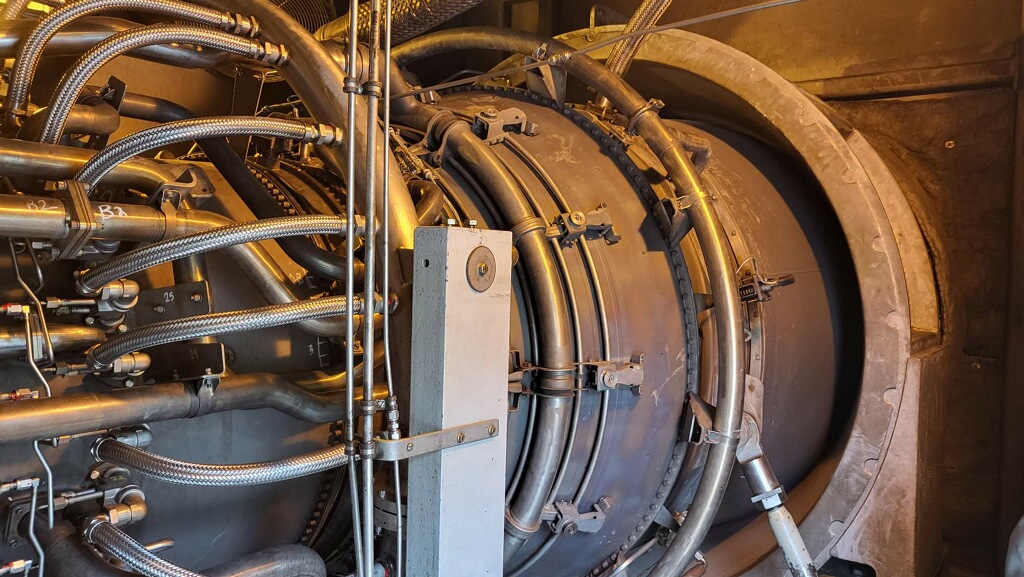

GAS COMBUSTION TURBINES



Manufacturer: General Electric



Model No: LM6000 PC Sprint



Capacity: 44 MW



Year Built: Used



Comments: Simple Cycle, natural gas



Note: LPT on Unit #2 requires minor work. Cost included in price.



Overhaul was done in 2023



Hours & Starts: (to be updated)



Unit 1: Total Hours: 32,360.3 Attempted Starts: 3,370 2023 Hours: 2,679.5 2023 Starts: 127



Unit 2: Total Hours: 35,189.2 Attempted Starts: 3,544 2023 Hours: 1,723.2 2023 Starts: 104



GENERATORS



Manufacturer: Brush



Model No: BDAX 7-290ERJT



Year Built: 2001



Output: 71,176 kVA



Voltage: 13,800



Amps: 2,977



P.F.: 0.85



Phases: 3 @ 60 Hz



Serial Numbers: ?



CONTROL CONTAINERS



Manufacturer: General Electric



Containers: 2



AUXILIARY TRANSFORMERS



Manufacturer: Square D



Model No: Class AA/FA 3-Phase 60Hz



Year Built: 05/2002



Output: 2500/3333 KVA



Voltage: 13.8 kV-480/277 V



AUXILIARY EQUIPMENT



Fire Equipment



Water Supply Equipment



Fin-Fan Coolers



Air Dryers



Turbine Stacks (2)

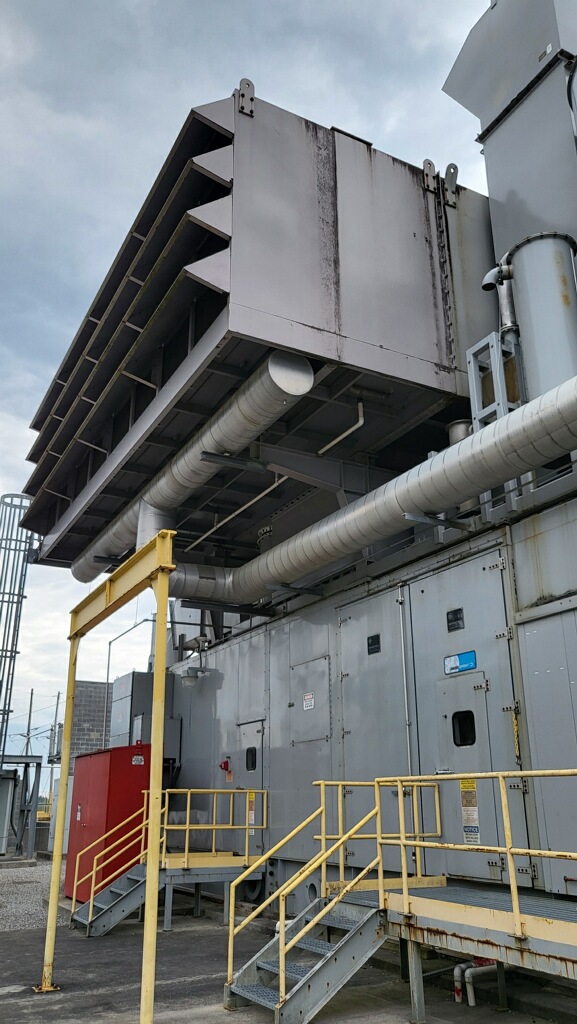

Turbine Intake Structures



Underground Piping, Conduits and Wiring may be removed or left by Purchaser



EXCLUDED EQUIPMENT (for clarity)



Main GSU Transformers and Main Transformer Switchgear



Building Structures



This was a peaking plant which was used very little. At expiration their contract was not renewed
