THE FOLLOWING NATURAL GAS FIRED ENGINE GENERATOR SETS ARE AVAILABLE FOR SALE WITH IMMEDIATE DELIVERY:



3 Nos. - 2000 kW each, CATERPILLAR (2008) make Gas Engine Generator Sets, having the following technical specifications:



TECHNICAL SPECIFICATIONS:



ENGINE



DETAILS



ENGINE 1



ENGINE 2



ENGINE 3



Make



Caterpillar



Caterpillar



Caterpillar



Year of Make



2008



2008



2008



Model



G3520 E



G3520E



G3520E



Output



2000 kW/2776 HP



2000 kW/2776 HP



2000 kW/2776 HP



Speed



1500 RPM



1500 RPM



1500 RPM



Year of Commissioning



2011



2011



2011



GENERATOR



DETAILS



GENERATOR 1



GENERATOR 2



GENERATOR 3



Make



Caterpillar



Caterpillar



Caterpillar



Year of Make



2008



2008



2010



Frame



2650



2650



2650



Model



SR4B HV



SR4B HV



SR4B HV



Output



2500 kVA/2000 kW



2500 kVA/2000 kW



2500 kVA/2000 kW



Speed



1500 RPM



1500 RPM



1500 RPM



Volts



10500



10500



11000



AMPS



138



138



131



No. of Phase



3



3



3



Frequency



50 Hz



50 Hz



50 Hz



P. F



0.8



0.8



0.8



Insulation Class



F



F



H



Altitude



1000 M



1000 M



1000 M



Excitation



63 Volts



63 Volts



52 Volts



13.8 AMPS



13.8 AMPS



11.4 AMPS



OPERATING HISTORY:



Engines



Total Running Hours



Engine 1



22,436 hours



Engine 2



31,297 hours



Engine 3



28,617 hours



SCOPE OF SUPPLY:



PLANT & MACHINERY: 3 X 2 MW = 6 MW CATERPILLAR



Sr .No.



Name of the Equipment



Qty



1.

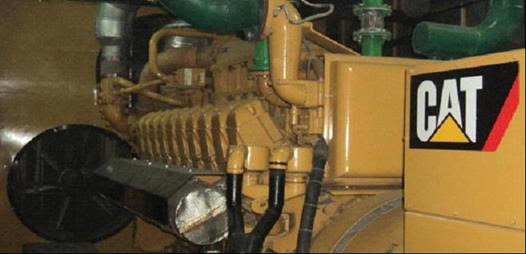

Caterpillar Gas Genset-3520e Model



3



2.

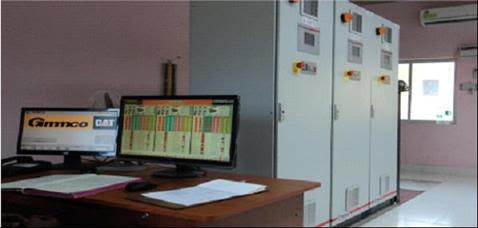

Terberg Engine Control Panel



3



3.



Common Chimney+ Cooling Systems+ Cables+ Trays



1 Lot



4.

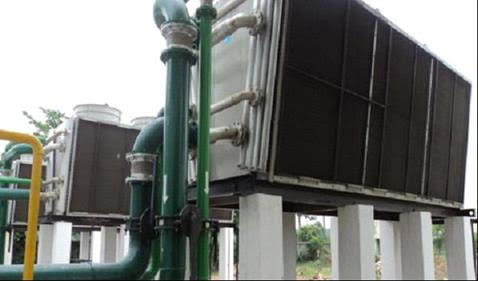

Radiator Structure



3



5.

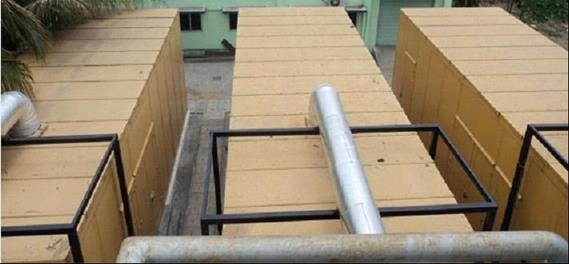

Acoustic Enclosure



3



6.



11 KV Switchgear/NGR And AUX MCC Panels



1 Lot



7.

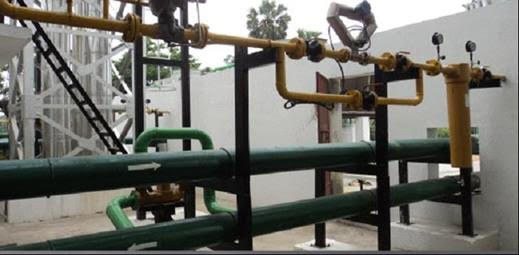

Gas Flow Meter + Starting Batteries



1 set
