THE FOLLOWING NATURAL GAS FIRED ENGINE GENERATOR SETS ARE AVAILABLE FOR SALE WITH IMMEDIATE DELIVERY:



we are enclosing herewith our Equipment Brochure (including technical details, scope of supply & photographs) for 3 Nos. 2000 kW each, CATERPILLAR (2008) make, type G3520E Containerised Gas Engine Generator Sets, having a voltage of 11 kV, available for sale with us with IMMEDIATE Delivery.



The above gas engine generator sets are in excellent condition. These sets can be inspected on foundation in India after signing of NCND agreement.



We now request you to let us know your further interest in the purchase of the above Gas Engine Generator Sets, to enable us to submit our commercial offer/s for the same.



3 Nos. - 2000 kW each, CATERPILLAR (2008) make Gas Engine Generator Sets, having the following technical specifications:



TECHNICAL SPECIFICATIONS:



ENGINE



DETAILS



ENGINE 1



ENGINE 2



ENGINE 3



Make



Caterpillar



Caterpillar



Caterpillar



Year of Make



2008



2008



2008



Model



G3520 E



G3520E



G3520E



Output



2000 kW/2776 HP



2000 kW/2776 HP



2000 kW/2776 HP



Speed



1500 RPM



1500 RPM



1500 RPM



Year of Commissioning



2011



2011



2011



GENERATOR



DETAILS



GENERATOR 1



GENERATOR 2



GENERATOR 3



Make



Caterpillar



Caterpillar



Caterpillar



Year of Make



2008



2008



2010



Frame



2650



2650



2650



Model



SR4B HV



SR4B HV



SR4B HV



Output



2500 kVA/2000 kW



2500 kVA/2000 kW



2500 kVA/2000 kW



Speed



1500 RPM



1500 RPM



1500 RPM



Volts



10500



10500



11000



AMPS



138



138



131



No. of Phase



3



3



3



Frequency



50 Hz



50 Hz



50 Hz



P. F



0.8



0.8



0.8



Insulation Class



F



F



H



Altitude



1000 M



1000 M



1000 M



Excitation



63 Volts



63 Volts



52 Volts



13.8 AMPS



13.8 AMPS



11.4 AMPS



OPERATING HISTORY:



Engines



Total Running Hours



Engine 1



22,436 hours



Engine 2



31,297 hours



Engine 3



28,617 hours



SCOPE OF SUPPLY:



PLANT & MACHINERY: 3 X 2 MW = 6 MW CATERPILLAR



Sr .No.



Name of the Equipment



Qty



1.



Caterpillar Gas Genset-3520e Model



3



2.



Terberg Engine Control Panel



3



3.



Common Chimney+ Cooling Systems+ Cables+ Trays



1 Lot



4.



Radiator Structure



3



5.



Acoustic Enclosure



3



6.



11 KV Switchgear/NGR And AUX MCC Panels



1 Lot



7.



Gas Flow Meter + Starting Batteries



1 set

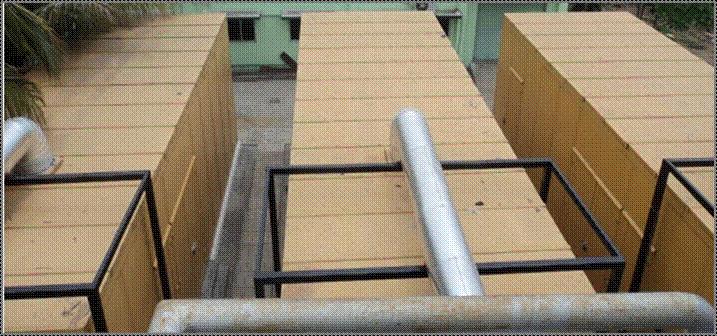

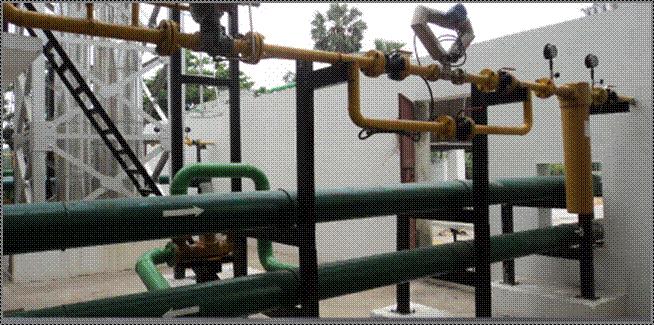

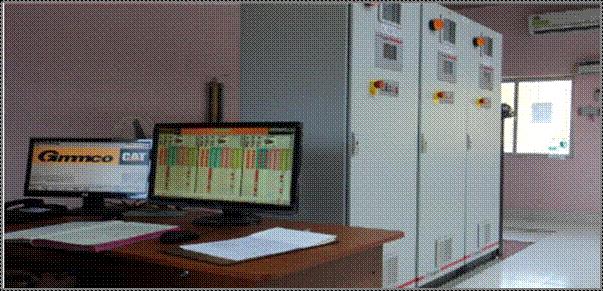

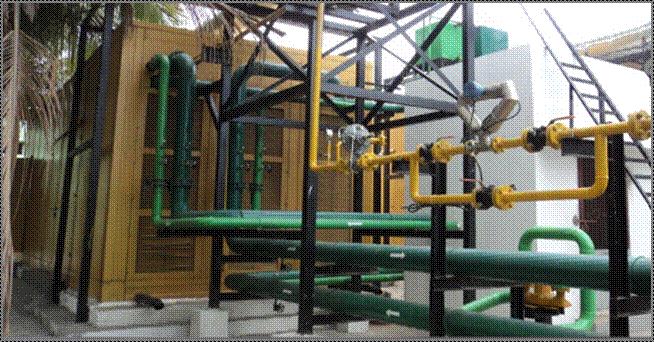

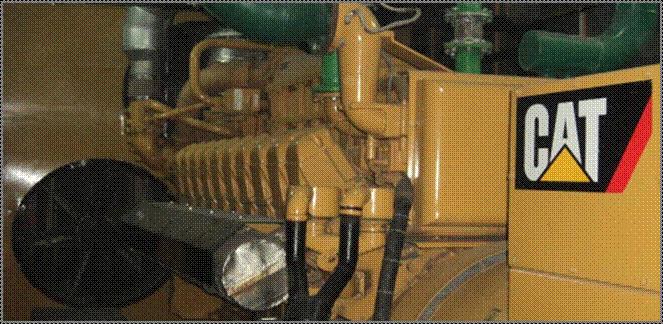

PHOTOS:
