Exclusive Equipment Listing: Fully Refurbished 51.294 MVA Brush Generator (Zero-Hour / 60Hz / 13.8kV

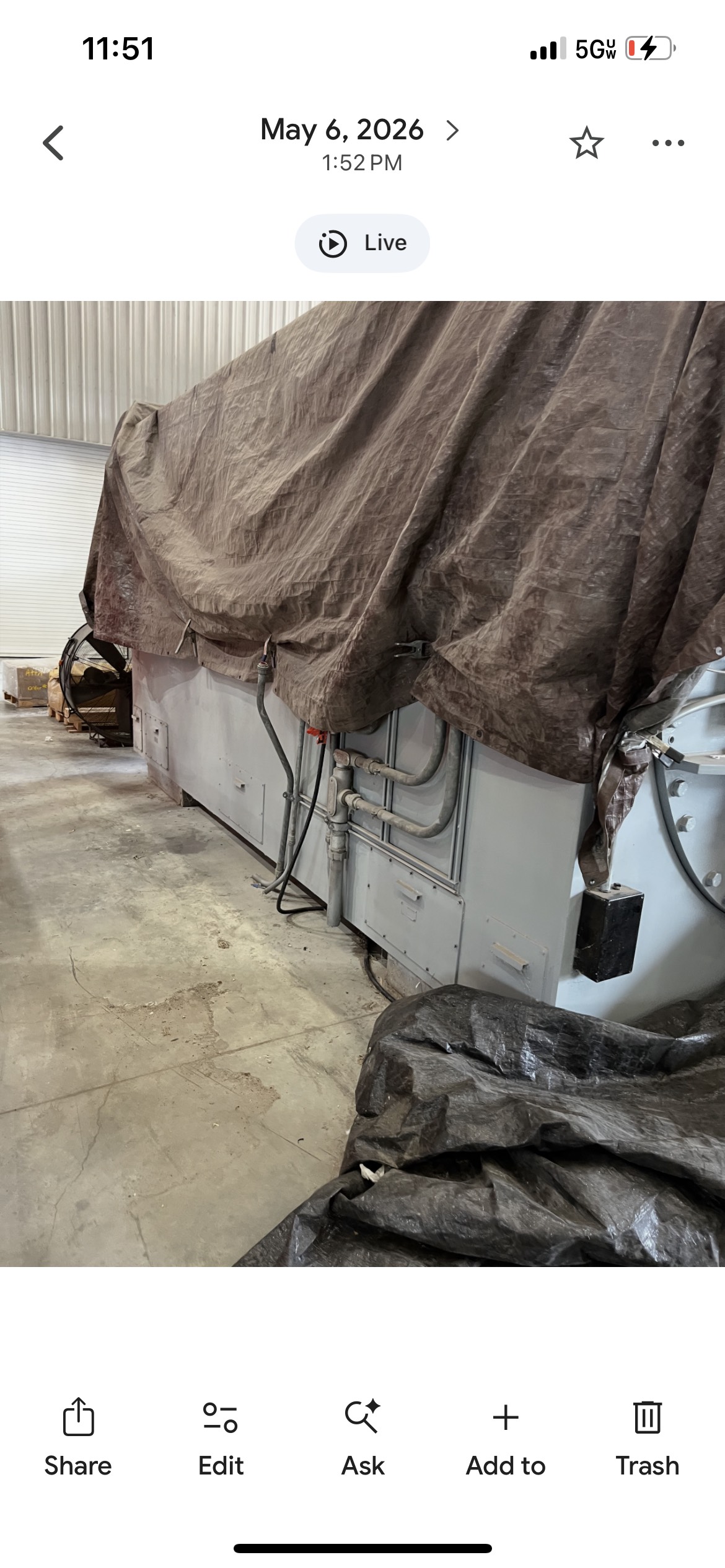

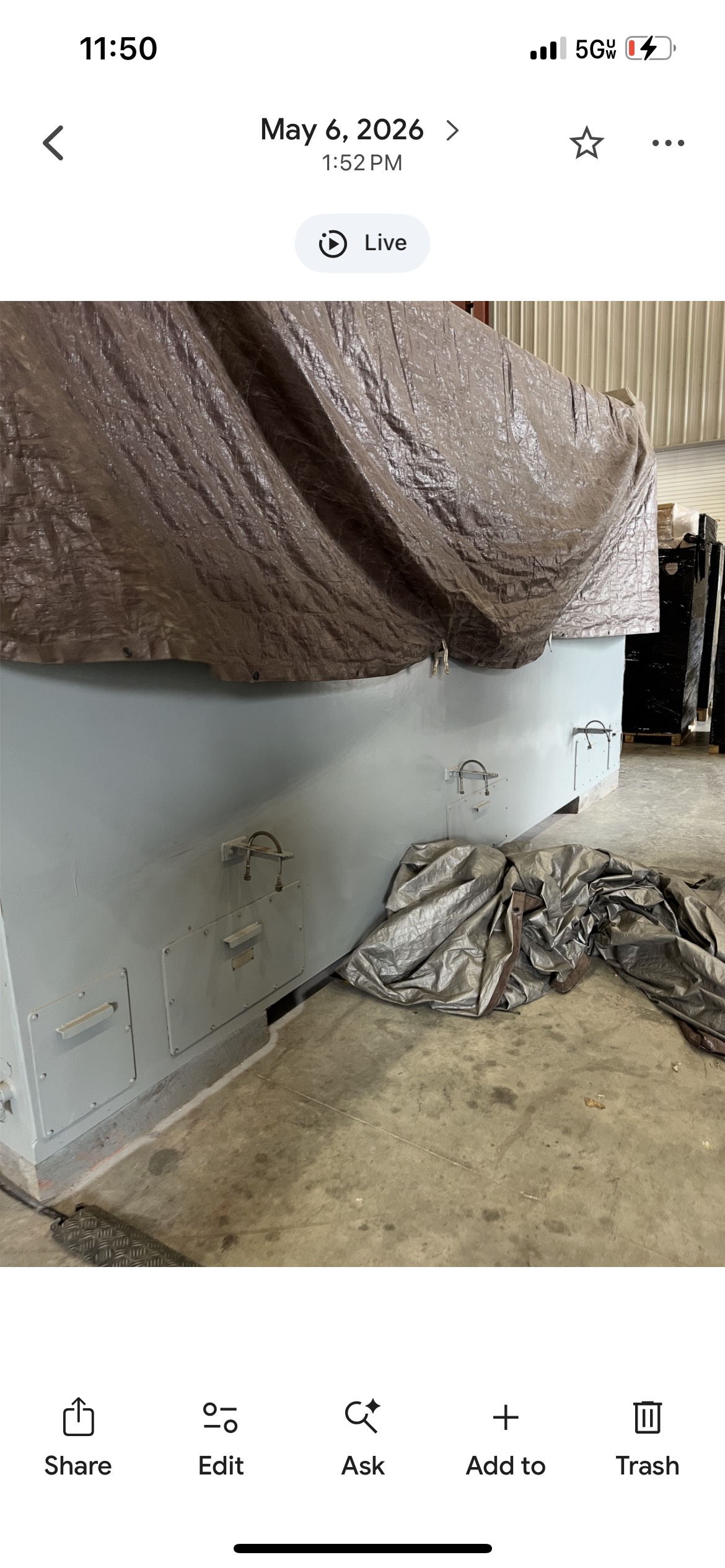

See photos attached

updated technical specifications and commercial terms below for a premium utility-grade generator asset available for immediate listing. To protect commercial confidentiality, please continue to omit the serial number, specific service vendor names, and precise geographic yard coordinates from the public listing.

Core Technical Specifications:

Manufacturer / Model: Brush BDAX7-290ESS Series Alternator Core

Apparent Power Rating: 51.294 MVA

Maximum Active Power: 43.599 MW

Voltage: 13.80 kV

Frequency: 60 Hz (3,600 RPM Synchronous Speed)

Power Factor: 0.85

Configuration: Enclosed Terminal Box (ESS) design, engineered for stationary, modular, or fixed concrete-pad installations.

Target Turbine Compatibility:

GE LM5000 (Base & STIG): 33 MW – 41.5 MW

GE LM2500+ / LM2500+G4: 29 MW – 35 MW (Ideal for stationary SAC or DLE configurations)

GE Frame 6B (Legacy PG6541B Configurations): 31 MW – 38 MW (A perfect match for un-upgraded, simple-cycle 6B units operating in hot climates or high altitudes)

Siemens Energy SGT-600: 24 MW – 30 MW (Fully compatible with 60Hz output configurations)

GE Frame 5 (Models 5/1 and 5/2): 24 MW – 32 MW

Refurbishment & Testing Status (Completed Q3 2024):

Condition: Zero-hour runtime since a complete professional rewind and overhaul.

Mechanical Certification: High-speed dynamic balancing completed and certified up to a 110% overspeed safety envelope (3,960 RPM for 1 minute).

Electrical Certification: Full insulation resistance (IR), polarization index (PI), and stator winding tap/RTD baseline verification testing successfully passed and documented.

Commercial Terms:

Asking Price: $2,500,000 USD

Deposit / Hold Terms: A deposit is required to be paid directly to the seller to secure the asset, with a mandatory commercial close within 5 business days thereafter.

Availability: Immediately available for third-party physical inspection and crane load-out from a secure storage facility in southern USA.

Warranty: Refurbishment shop warranty documentation is included and transferable upon closing.

Full nameplate photographs and blinded testing data sheets can be provided directly to qualified buyers upon request. Please let me know once the listing is active or if your team requires any additional non-identifying technical data.
