For Sale - The complete Tire Shredding & Separation Line



FOR SALE :



The complete Tire Shredding & Separation Line



Location: Bulgaria



TECHNICAL OVERVIEW :



Complete technological equipment for shredding and separating automobile tires.



Capacity: 400–500 kg/hour



Maximum tire size: up to approx. Ø600 mm



The line includes:

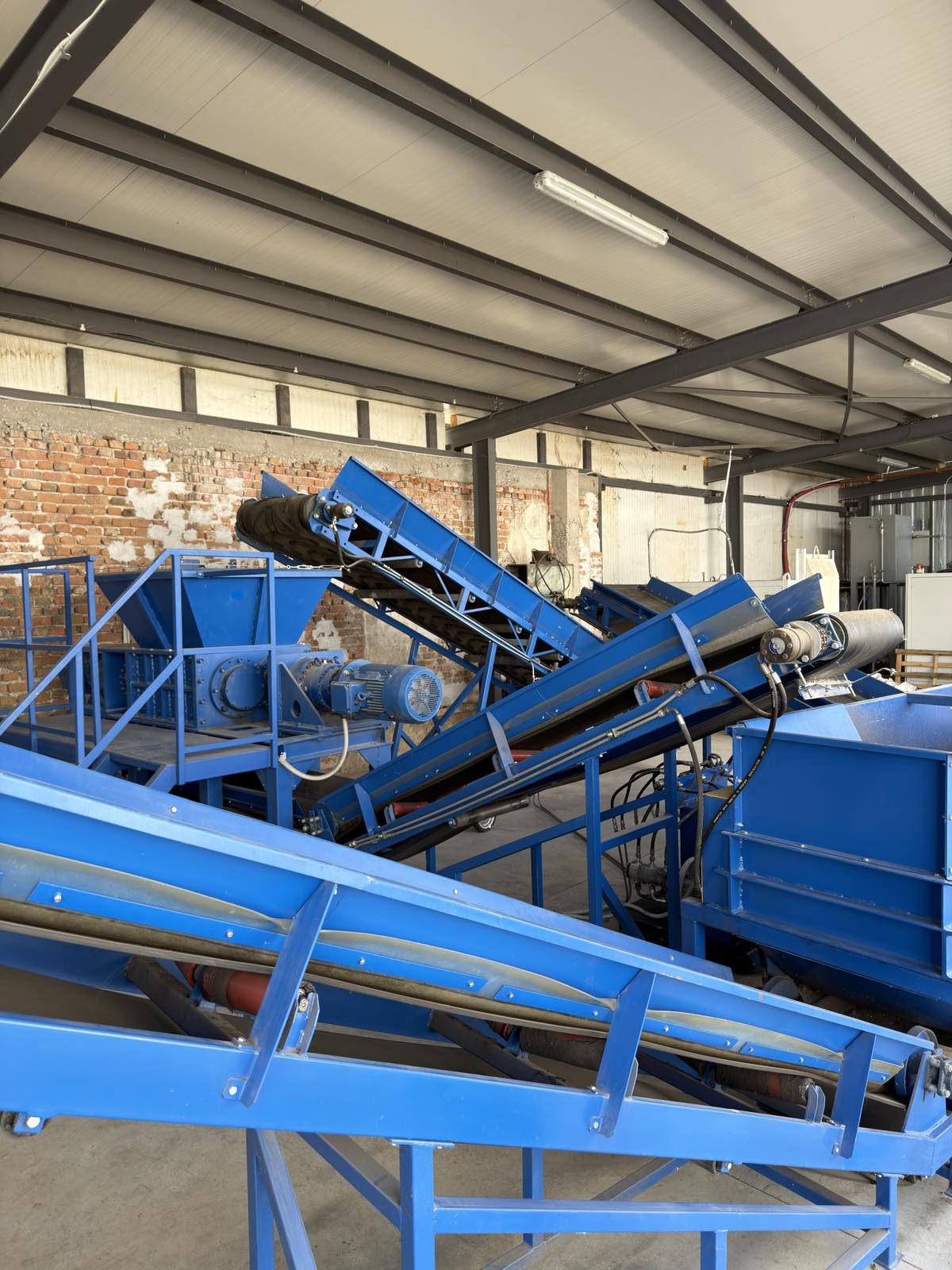

Loading conveyor – 5,000 mm × 800 mm, hydraulic

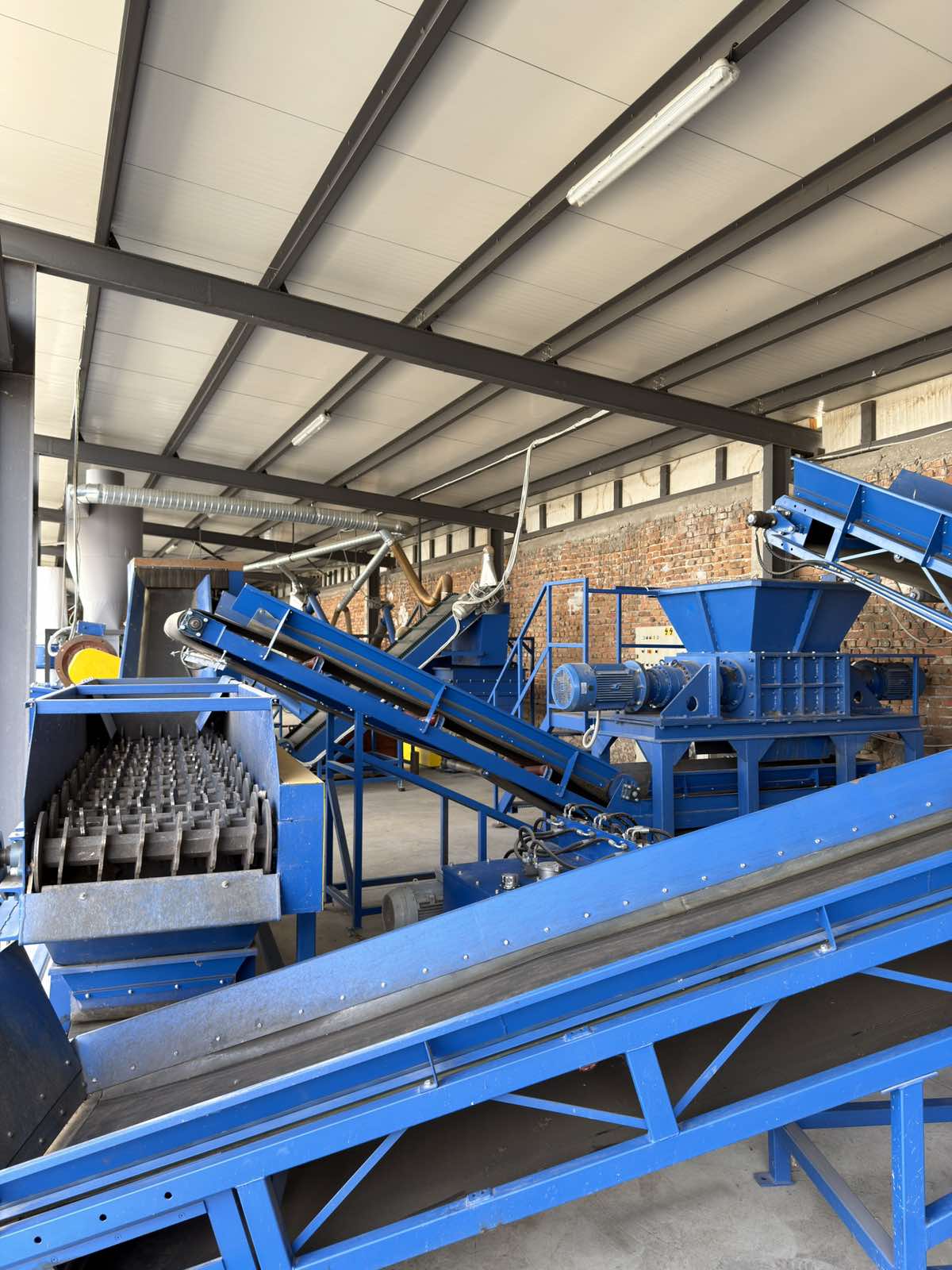

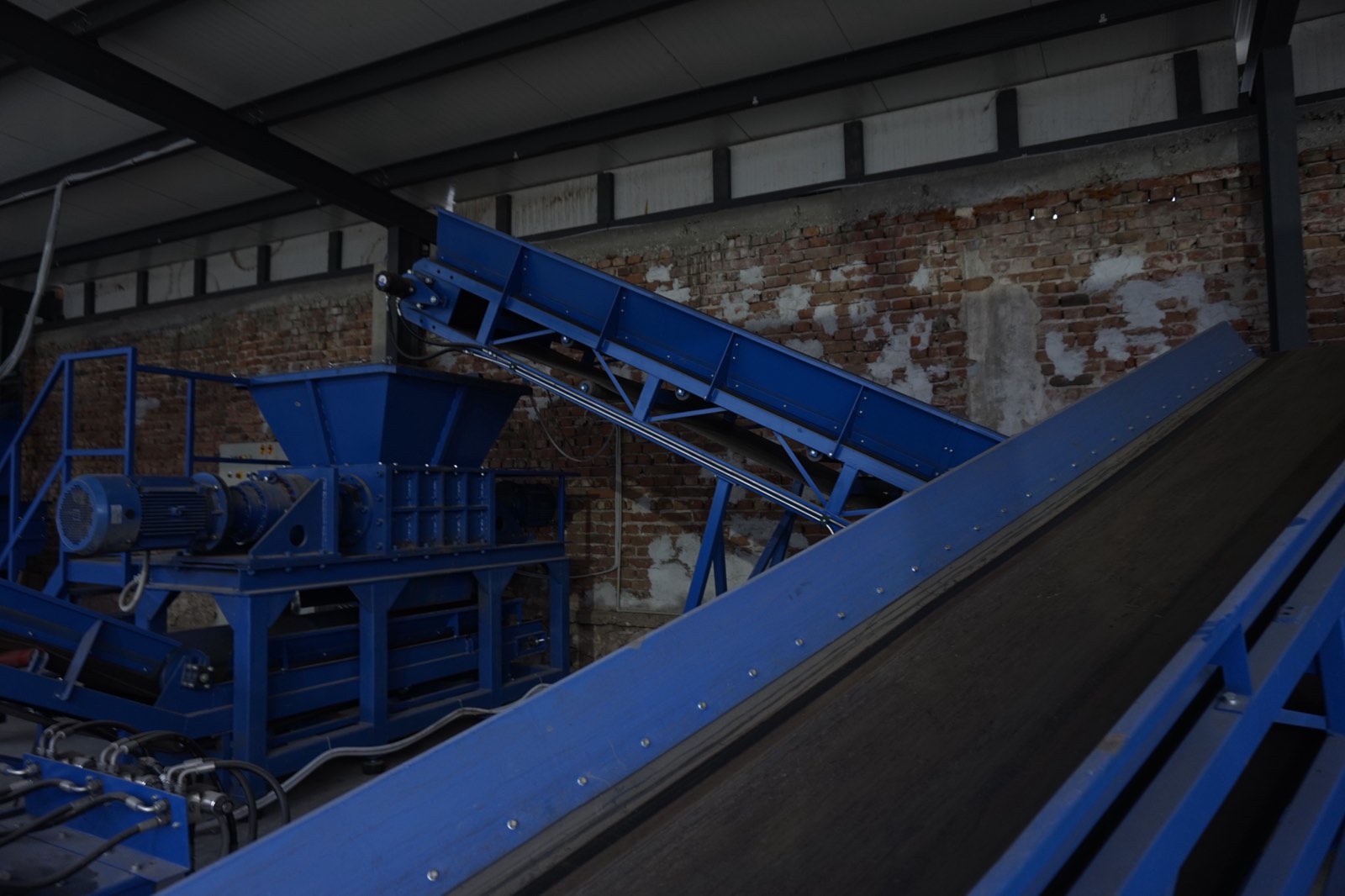

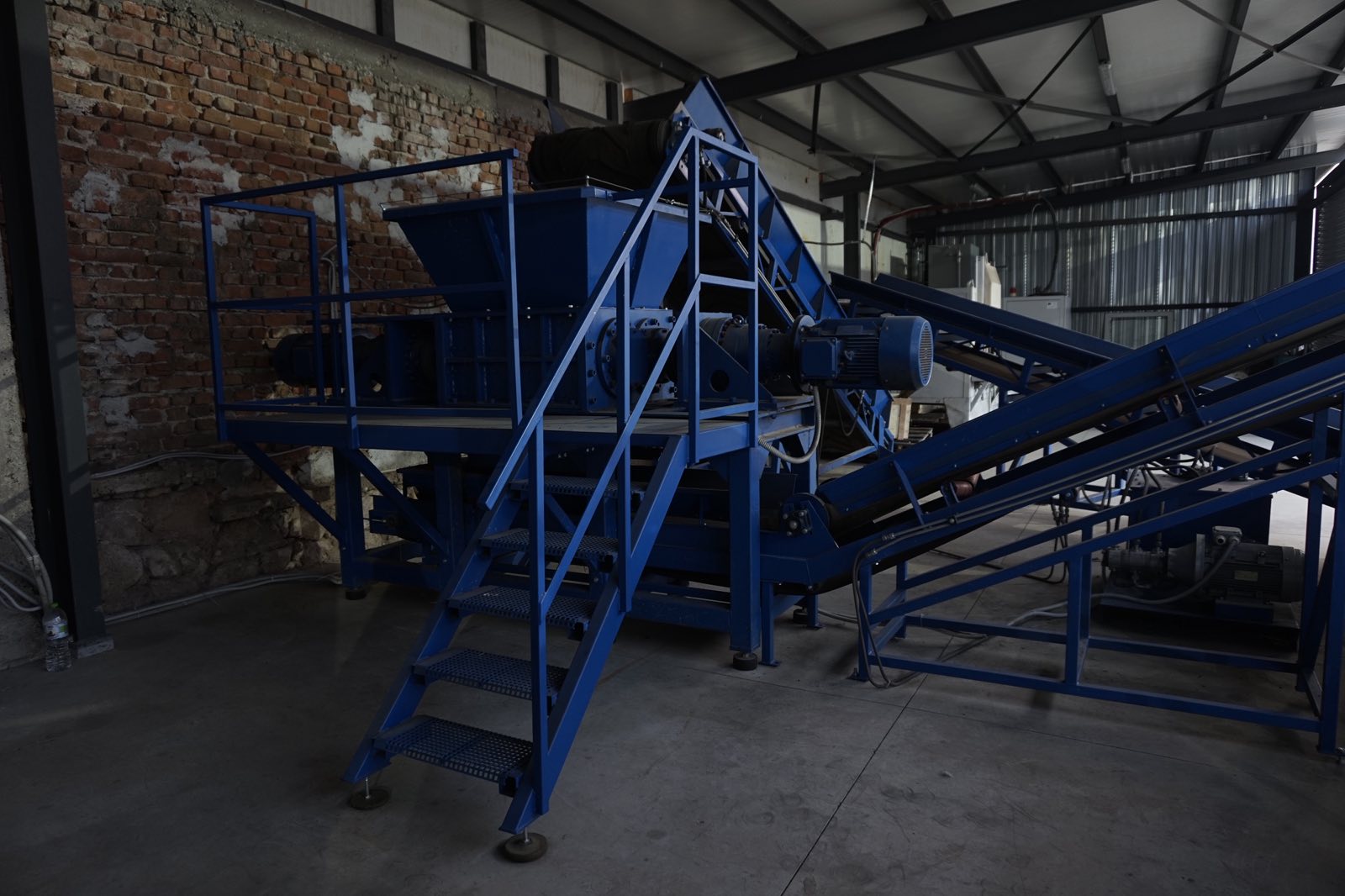

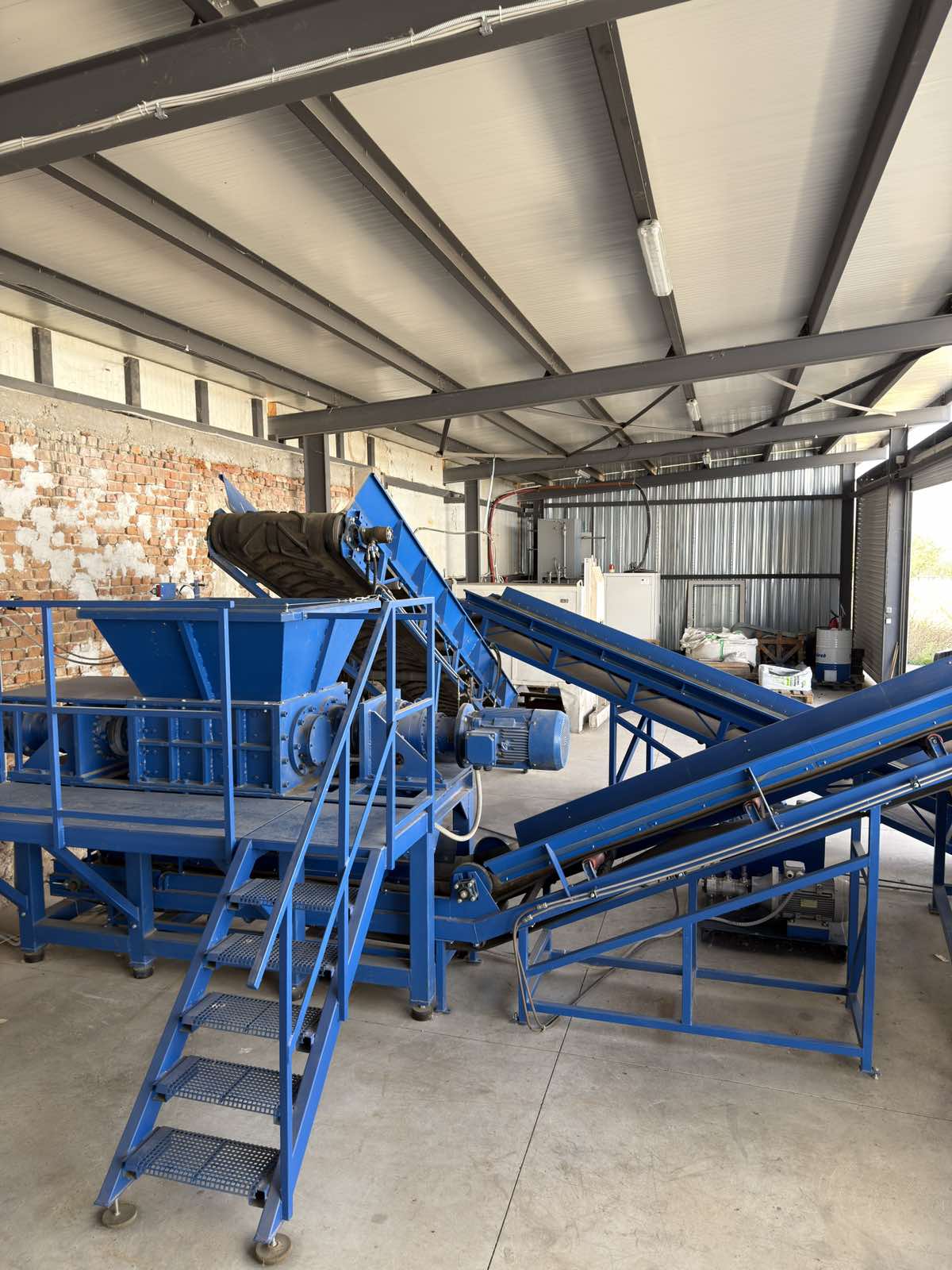

Dual-shaft tire shredder – 30 kW, max. tire diameter 650 mm, 800 × 800 mm inlet, 80 replaceable knives

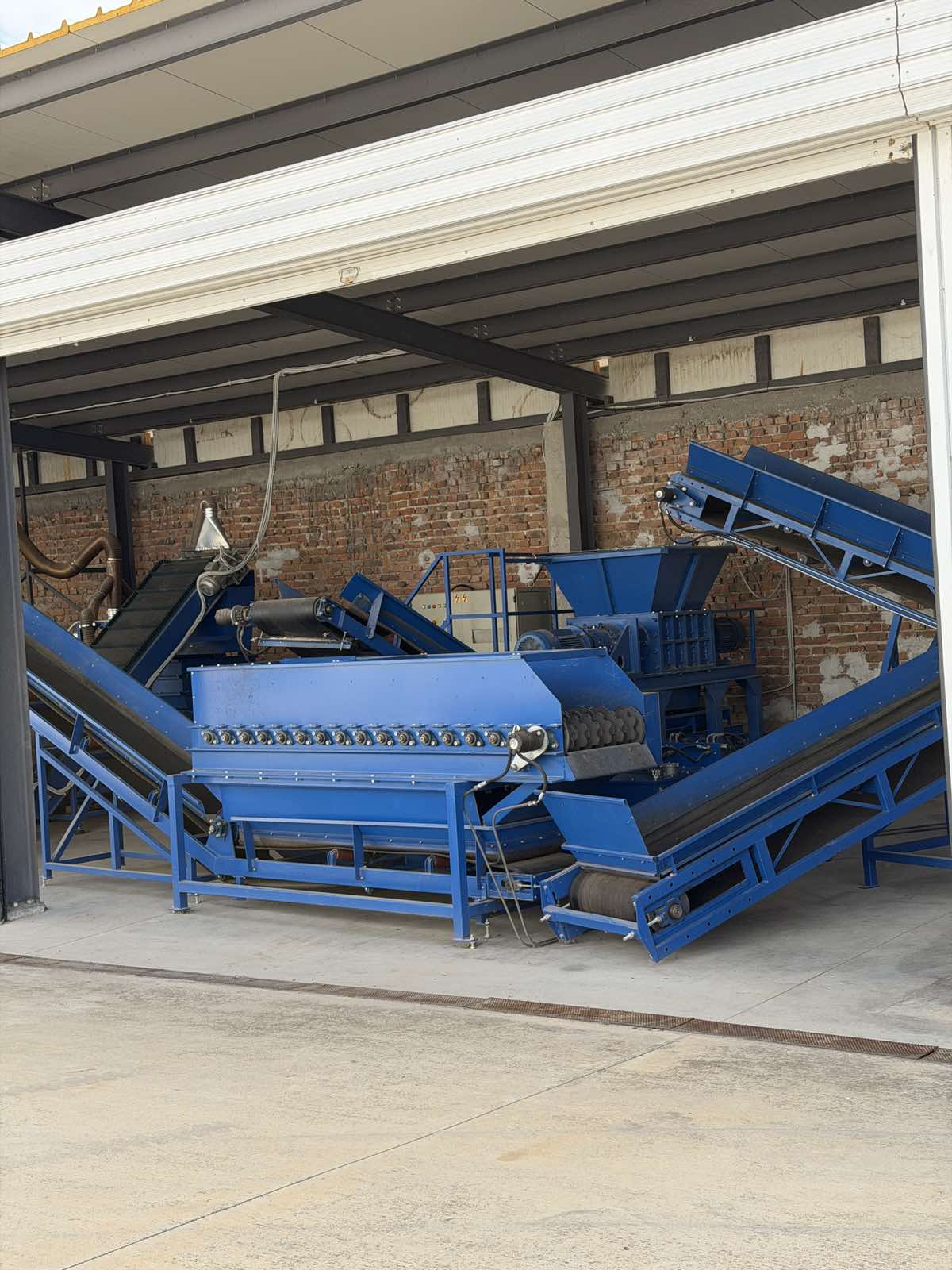

Disc screen – hydraulic, two-fraction separation

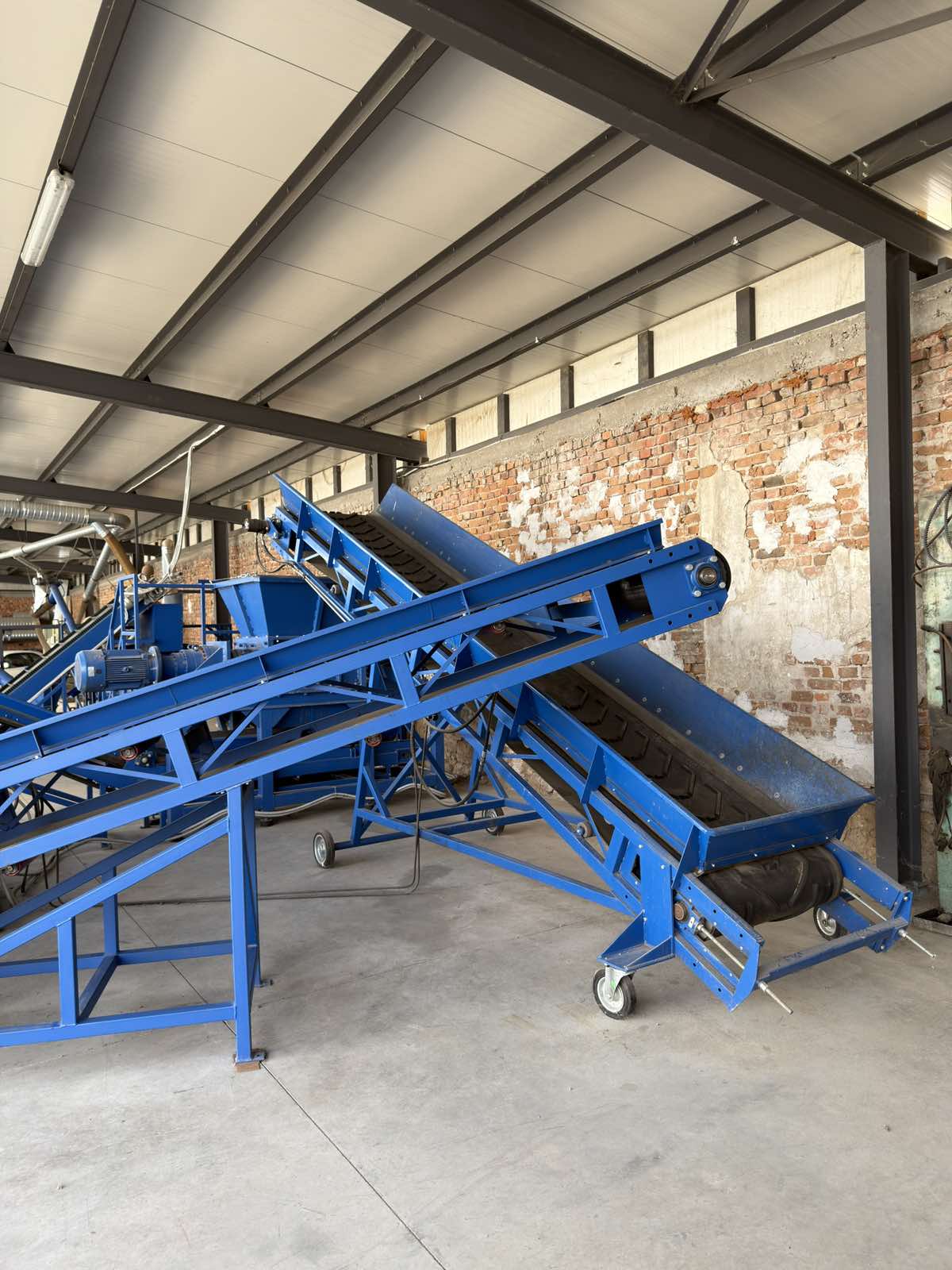

Conveyor belt – 5,500 mm × 500 mm



Conveyor belt – 7,000 mm × 500 mm



Return conveyor to shredder – 5,000 mm × 500 mm



Hydraulic station – 9.2 kW, 150 L tank

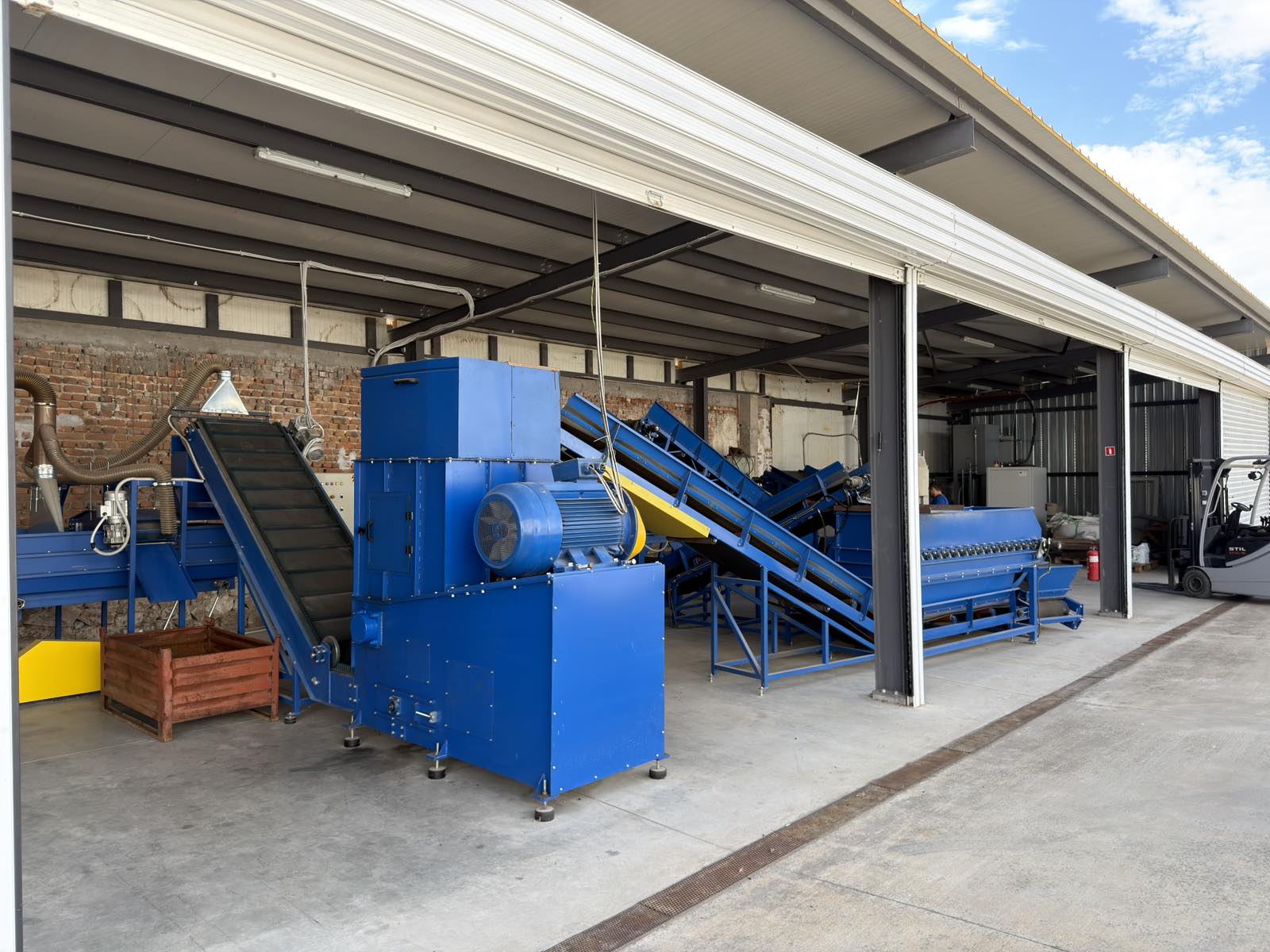

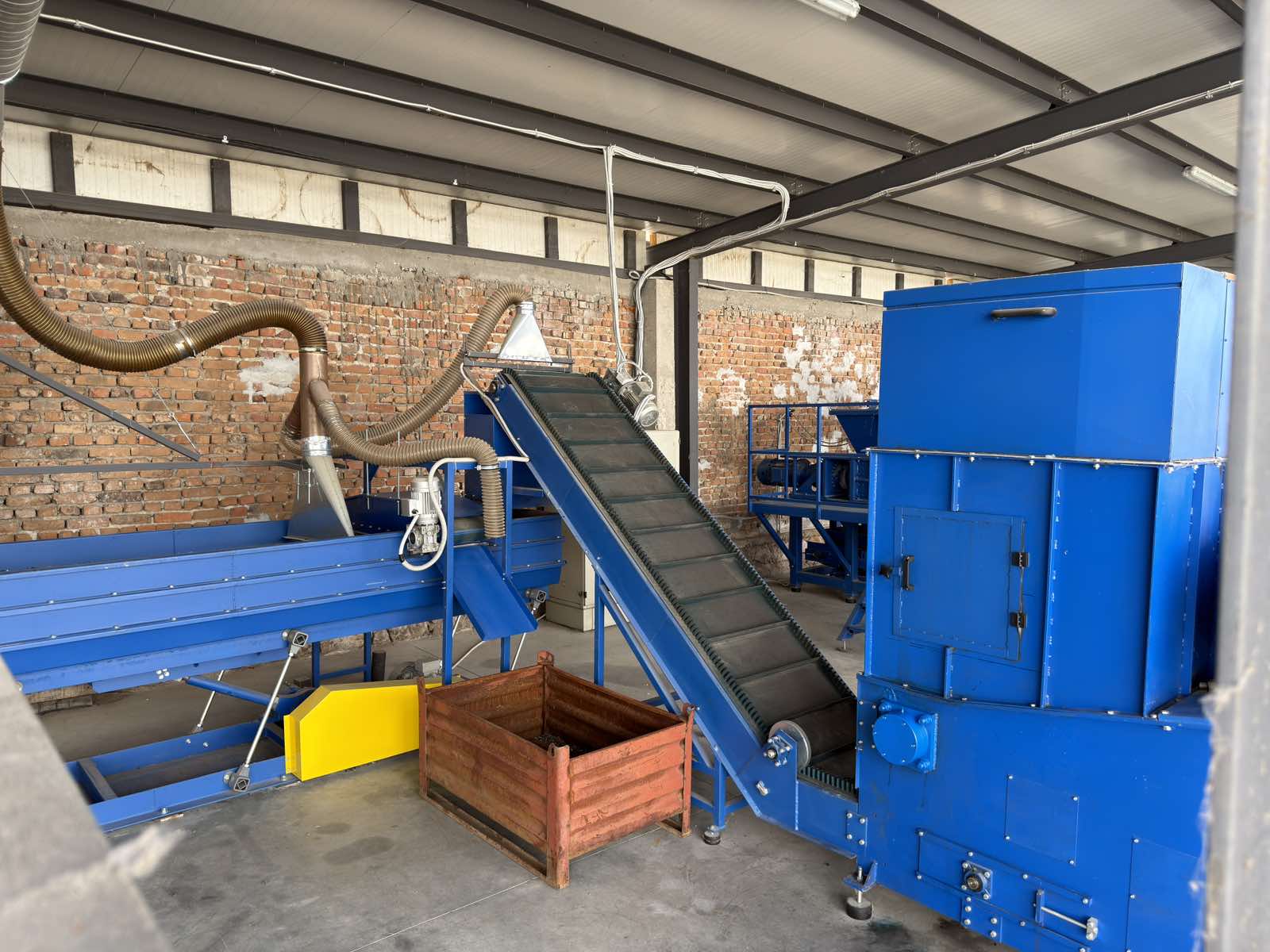

Single-shaft tire shredder – 58 kW, 800 mm shaft width, 15 mm screen



Magnetic belt separator – 0.55 kW



Linear vibrating screen – 4 kW, three-fraction separation



Circular vibrating screen – 0.69 kW



Magnetic belt separator – 0.55 kW

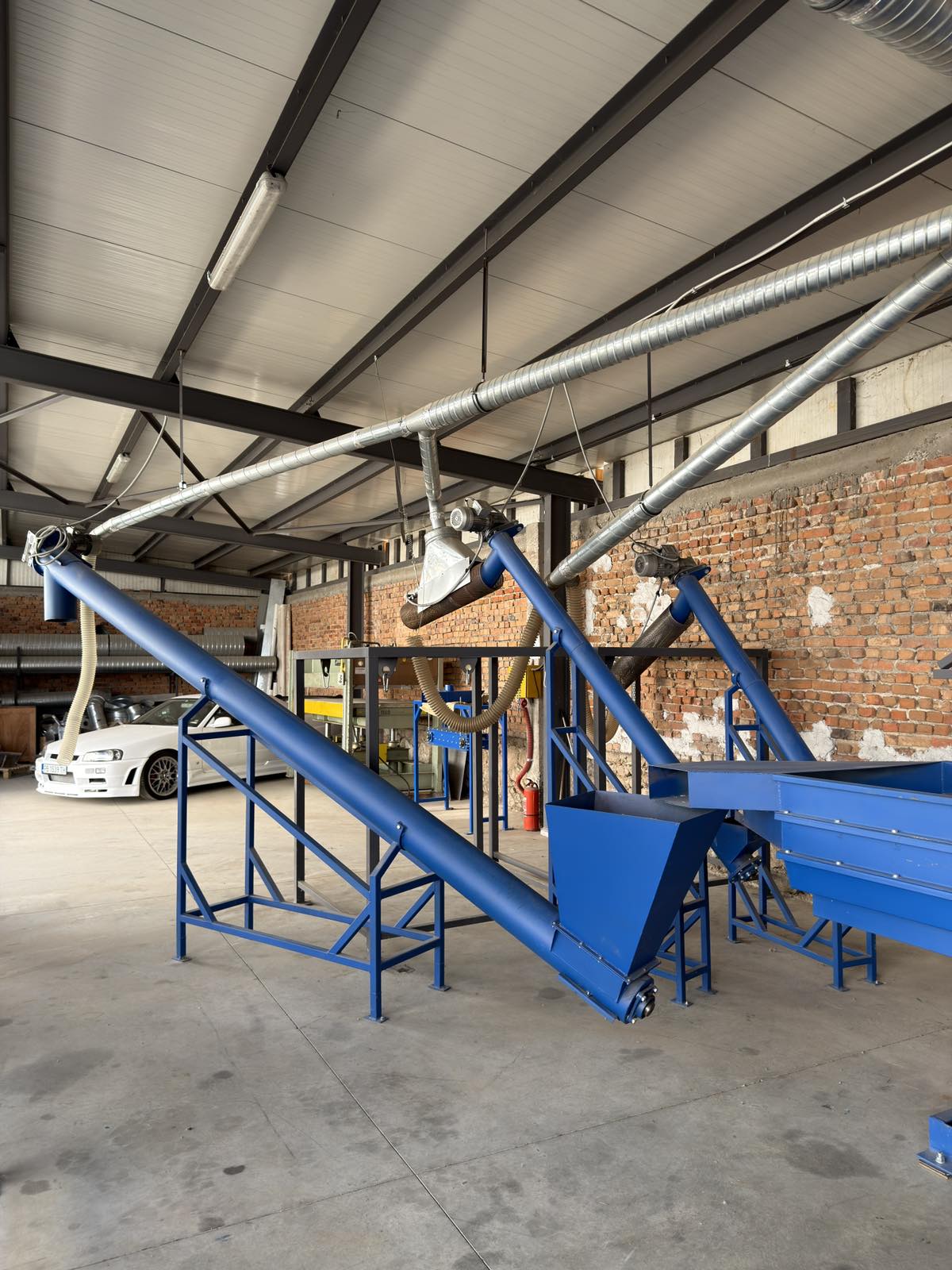

Screw conveyor Ø200 – 2–4 mm fraction



Screw conveyor Ø200 – 4–15 mm fraction



Screw conveyor – 0–2 mm fraction



Roller mill PP380 M – 50 kW



Screw conveyor Ø200

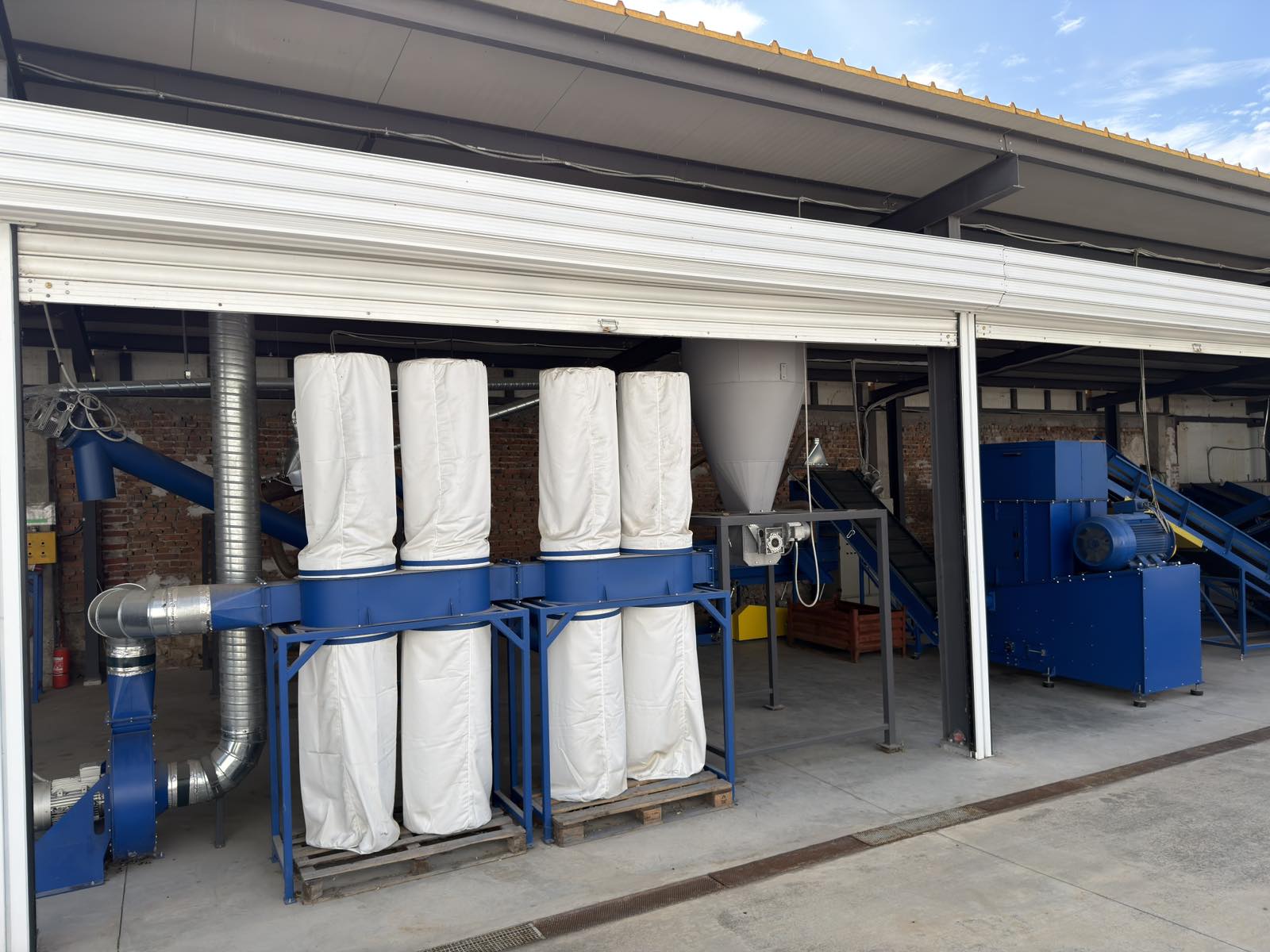

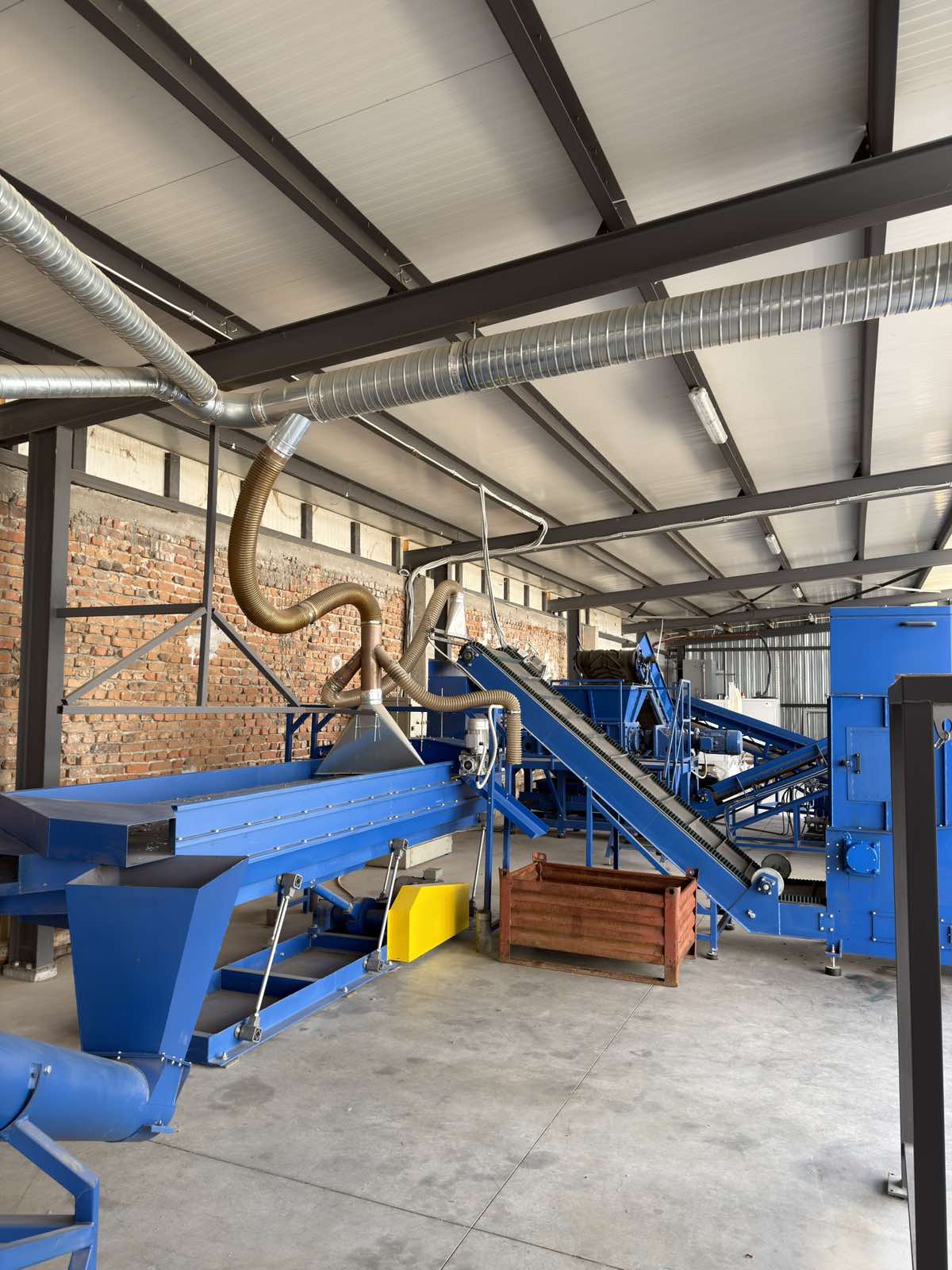

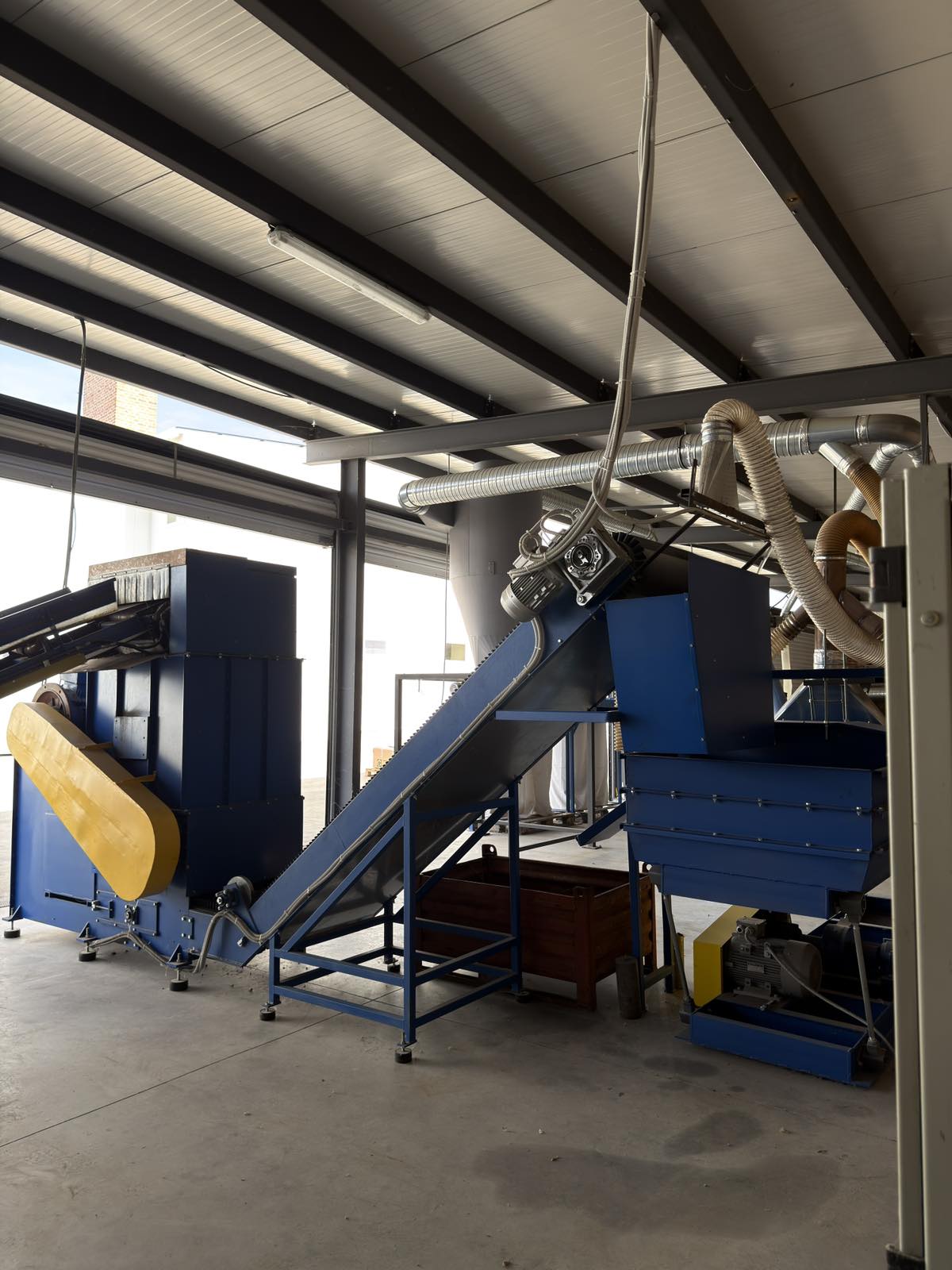

Aspiration system – up to 10 kW



BIG-BAG stands – 3 units



Electrical control panel – 380–400 V / 50 Hz



Assembly / installation



Primary dual-shaft shredder: up to 2 tons/hour, depending on material and operating conditions.



OUTPUT FRACTIONS



The process is designed to separate:



Metal wire



Rubber fraction 0–2 mm



Rubber fraction 2–4 mm



Thread / textile fraction



AVAILABILITY



Several components are available from the sellers showroom and were manufactured in 2025.



The remaining components are scheduled for production, with a stated lead time of up to 35 working days.



COMMERCIAL TERMS



Nt price: EUR 395,000



Warranty: 1 year or 2,000 operating hours.



The offer is valid for one month.



Transportation, lifting equipment and related installation logistics are excluded.



I am attaching the available pictures of the equipment for your review.



Please have a look and let me know if this configuration is of interest to you. If so, we can discuss the next step directly with the seller.
