MWM, TCG2020 V20, 2016, Containerized Natural Gas CHP Plant, 1,999 kW, 50 Hz

Reference V-2922

Brand MWM

Model TCG2020 V20

Year built 2016

Condition Used

Quantity 1 machine



Overview

Containerized combined heat and power (CHP) plant with an MWM TCG2020 V20 gas engine, running on natural gas (domestic gas H).

Year: 2016

Operating hours: 30,000 h

Condition: used, fully functional and in good condition.

Used in a horticultural operation to supply electricity; it can operate in parallel with the grid or in island mode.

Maintained by the manufacturer under a full-service contract. The service contract, valid up to 60,000 operating hours, can be taken over if desired and possible.

Intended to remain in operation until December 1, 2026; if necessary, it can also be dismantled immediately. A viewing with a demonstration of operation can be arranged.

Sold as is; the sale is due to a change to wind power generation.

Technical Specifications

Nominal power: 1,999 kW (2,717.88 HP)

Nominal apparent power: 2,000 kVA

Voltage and frequency: 400 V, three-phase, 50 Hz

Input current: 250 A

Speed: 1,500 rpm

Fuel: natural gas (domestic gas H)

Cooling: water

Engine management: TEM EVO

Alternator

Marelli Generators MJB 560 LB 4, three-phase synchronous generator

Rated power: 2,481 kVA at power factor 0.8; 2,101 kVA at 0.95; 2,000 kVA at 1.0

400 V, 3,581 A, 50 Hz, 1,500 rpm; mechanical input 2,054 kW

Efficiency at 100% load: 96.62% at power factor 0.8, 97.35% at power factor 1.0

Insulation class H, temperature rise class F, protection IP 23, cooling method IC 01, overspeed 2,250 rpm

Alternator weight: 7,250 kg (15,984 lb)

Standards: VDE 0530, IEC 60034-1, BS 4999-5000

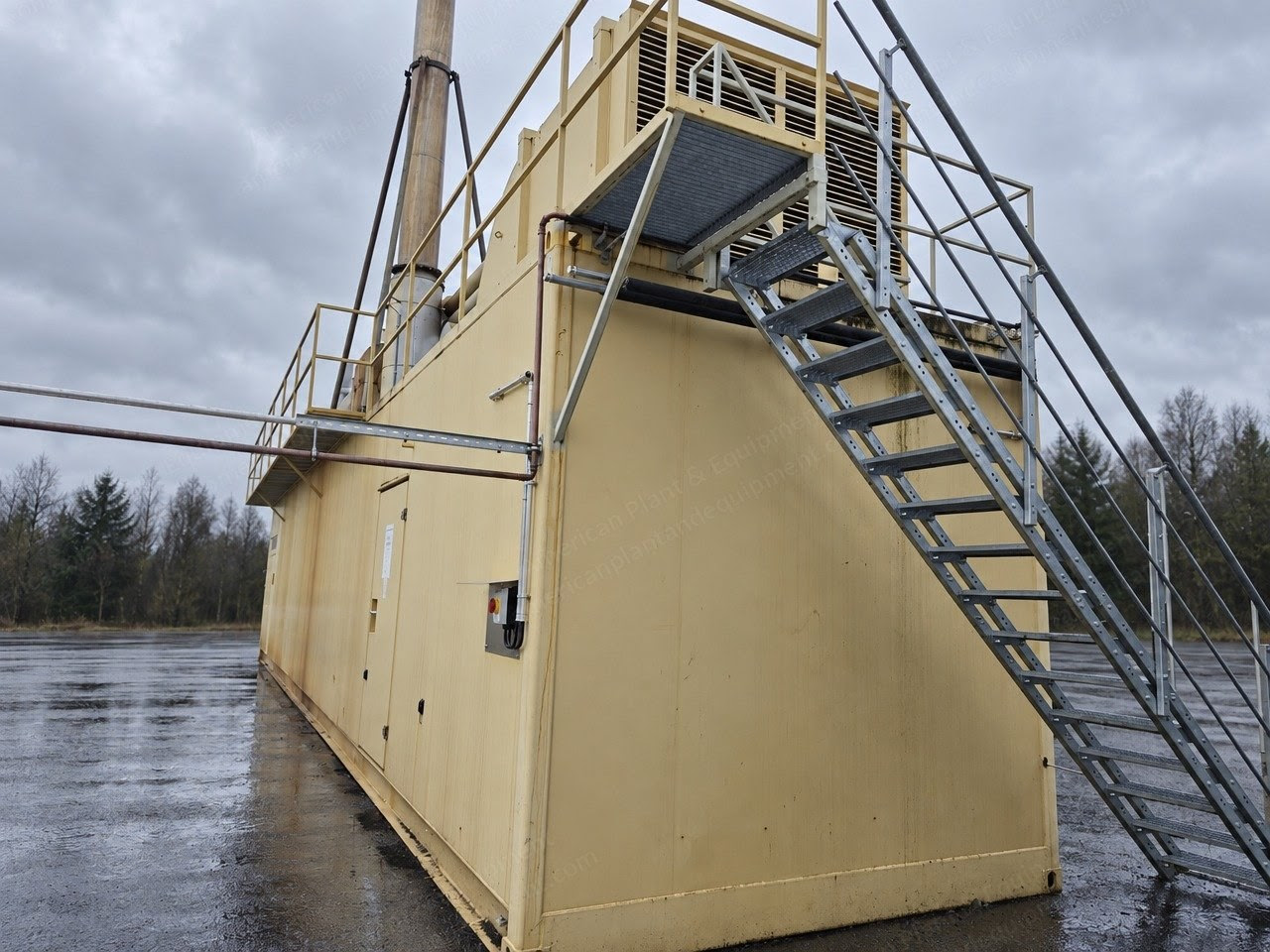

Container and Equipment

Spacious, solidly built container, very comfortable for service work

Generator connected to the circuit breaker with a copper busbar system

Container temperature controlled automatically with electric sunshades

Heated and air-conditioned switch room

Control cabinets: 3,000 mm long, 800 mm wide, 2,400 mm high (118.1 x 31.5 x 94.5 in)

EMI box installed for continuous NOx measurement

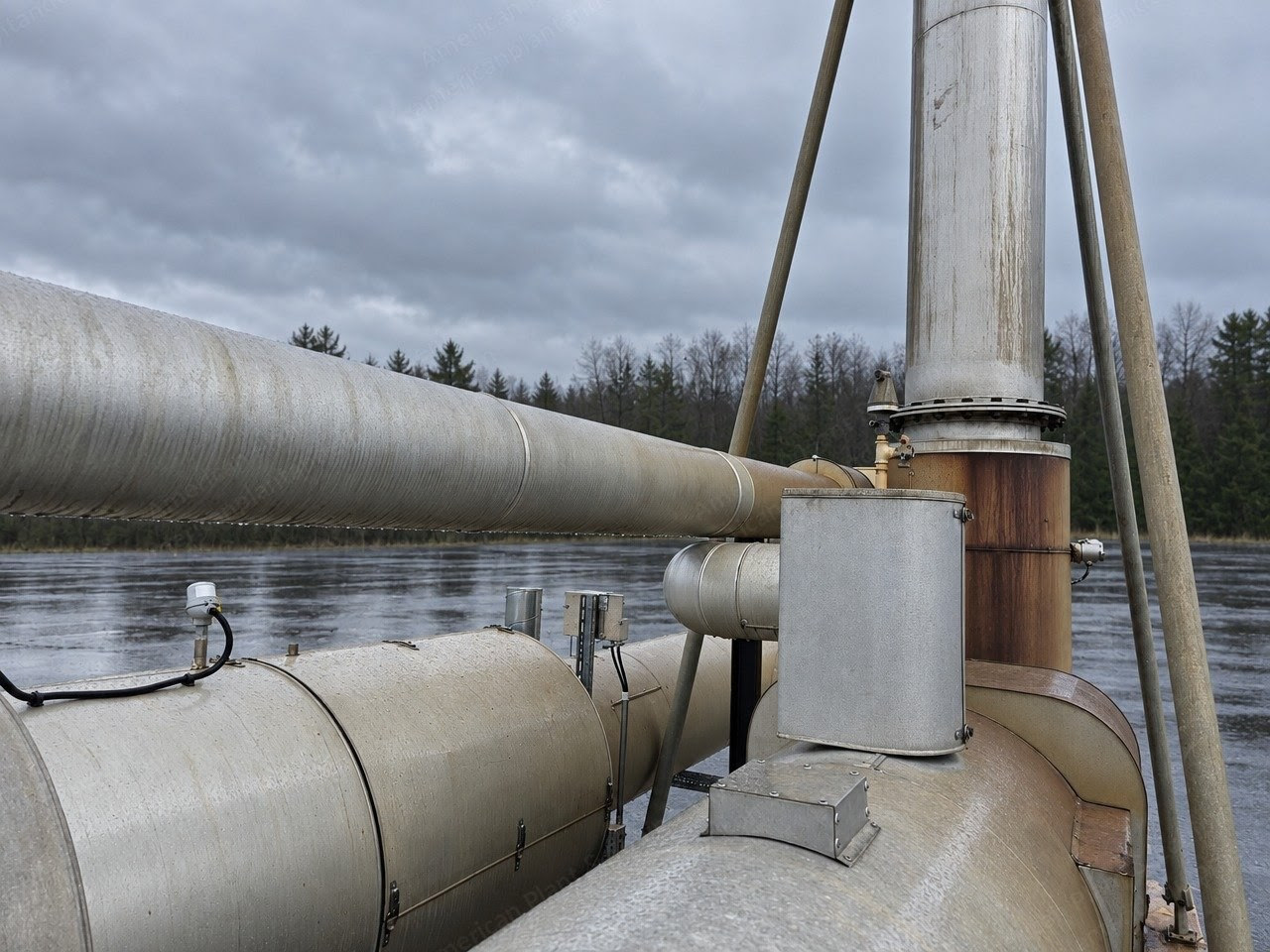

Exhaust gas silencer, exhaust gas heat exchanger and exhaust catalytic converter

15 m (49.2 ft) chimney on the roof, with a ladder for exhaust gas measurement included

High-temperature heating water inlet and outlet: DN 100

Documentation and manual included

Dimensions and Weight

Container: 16,000 mm long, 3,200 mm wide, 3,200 mm high (629.9 x 126.0 x 126.0 in)

Overall weight: 45,000 kg (99,208 lb), container without roof components and exhaust gas unit

Foundation: block or strip foundation, with a clear area of 7,000 mm (275.6 in) at the end of the container for taking the genset out
