Siemens, SGT800DLE, 2017, 53MW Gas Turbine, 25MW Steam Turbine, 50Hz, 10500V

Reference TY-2497

Brand Siemens

Model SGT800DLE

Year built 2017

Condition Used

Quantity 1 machine



Overview

Brand: Siemens

Model: SGT800DLE

Year: 2017

Combined cycle power plant

Running hours: 8,619

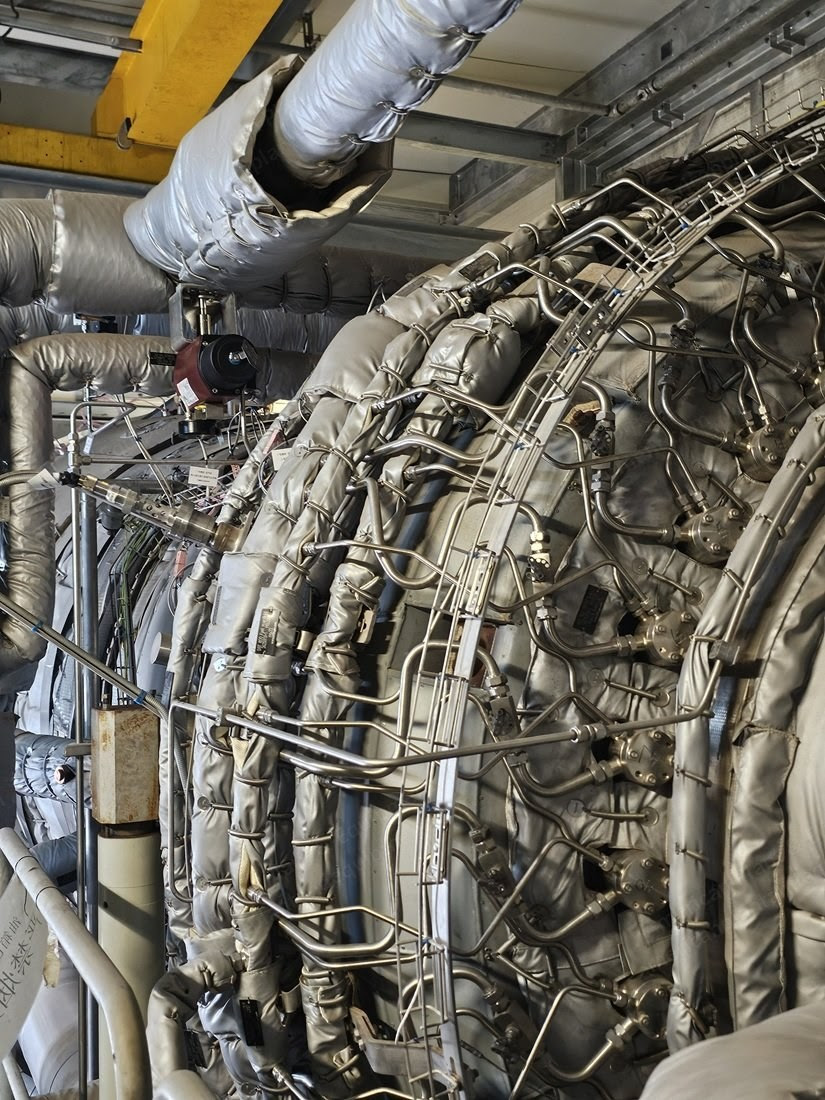

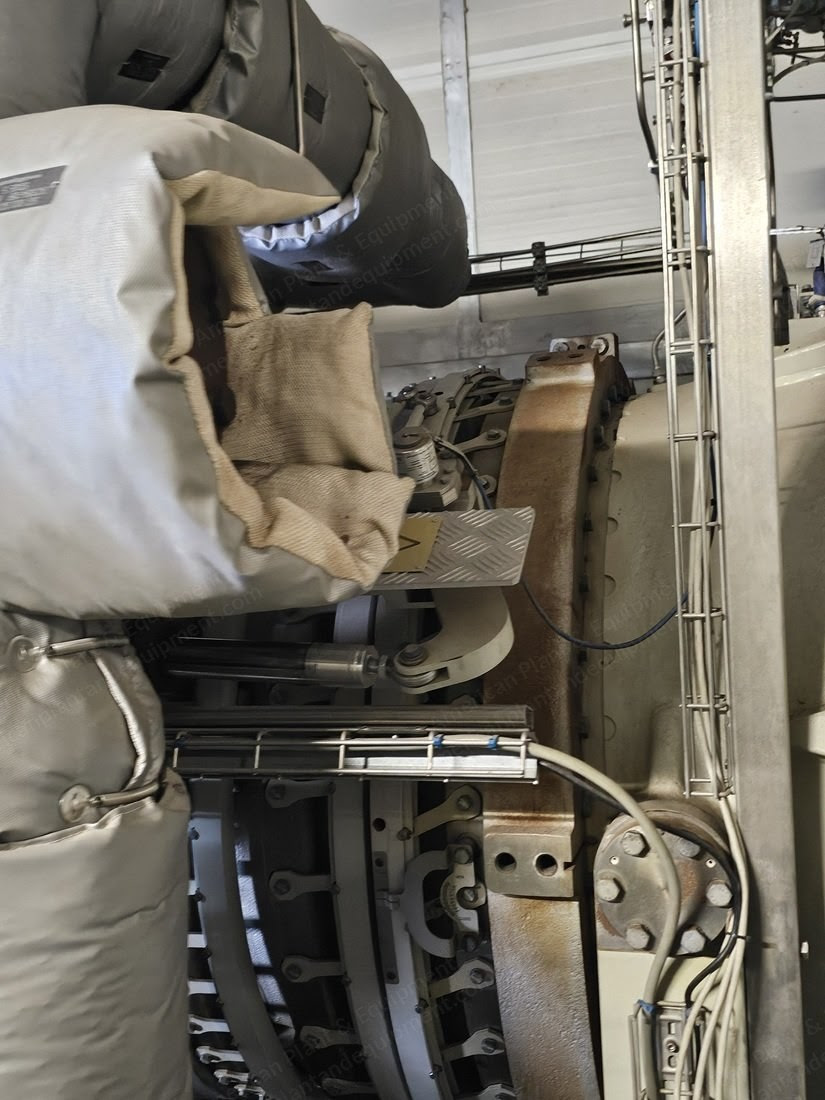

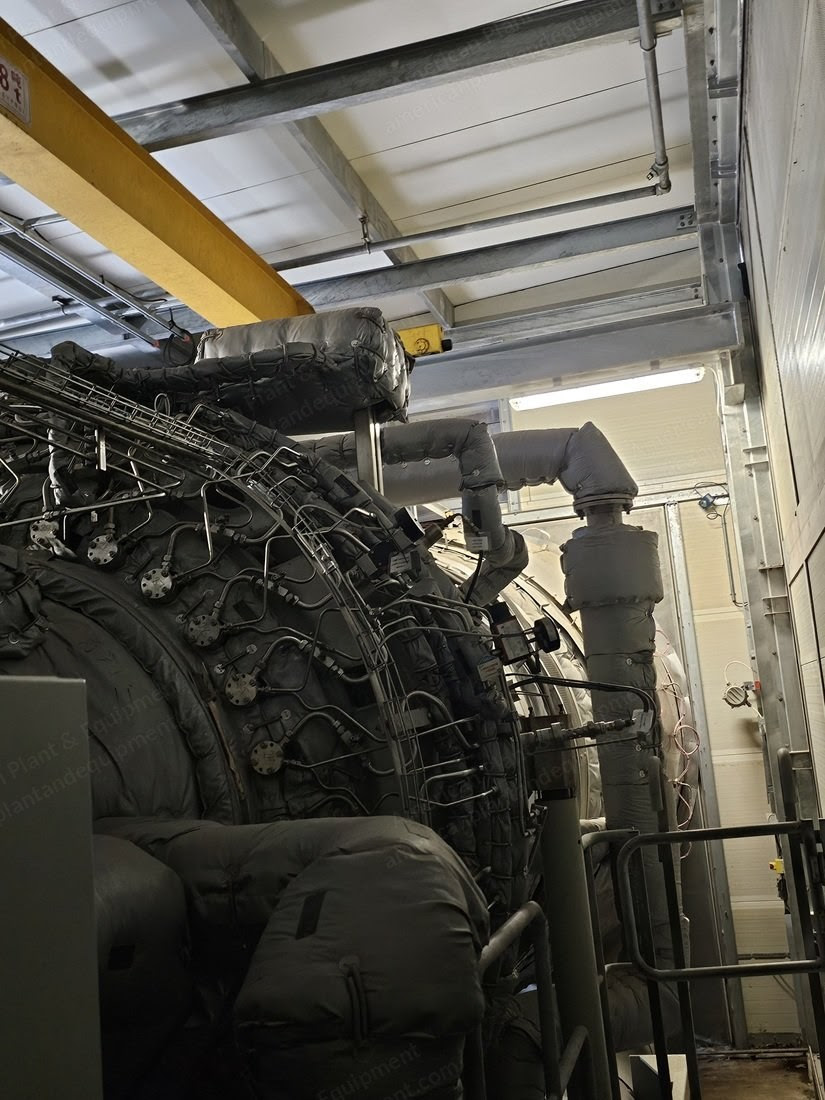

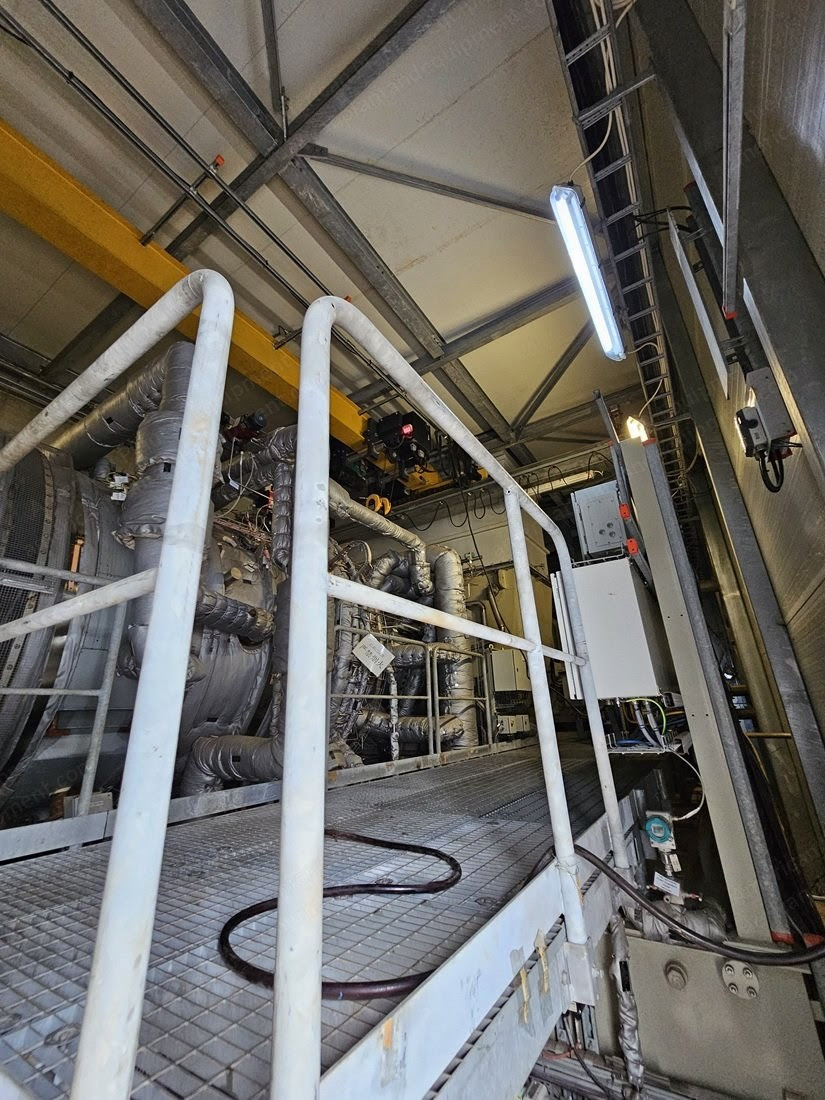

Gas Turbine and Generator

Gas turbine power: 53 MW

Speed of gas turbine: 6,300 rpm

Generator: Siemens, made in Germany

Generator type: 1DS2093-8, built 2016

Generator rating: 67,162 kVA at 0.85 power factor

Speed of generator: 1,500 rpm

Frequency: 50 Hz

Voltage: 10,500 V

Generator cooling: water cooled, 1,633 L/min, enclosure IP55, insulation class 155 (F)

Generator weight: 82.2 t (181,220 lb)

Reduction gearbox: BHS Getriebe

Steam Turbine and Heat Recovery Steam Generator

Steam turbine power: 25 MW

Steam turbine manufacturer: Hangqi

Heat recovery steam generator capacity: 66.4 t/h (146,387 lb/h)

Heat recovery steam generator manufacturer: Hangguo

Scope of Supply

Gas turbine

Gearbox

Alternator

Cooler

Lube oil system

Gas supply equipment

Water treatment

Steam tank

Steam turbine

Heat recovery steam generator

Steam turbine alternator

Chimney

Tube

Fire fighting system

Transformer

Control system

High voltage cabinet

Low voltage cabinet

Motor control centre

High voltage components
