MOBILE FIELD HOSPITAL



Mobile Hospital (Field Hospital)



Made in Europe



(All offers subject to prior sale and final confirmation)



FIELDHOSPITAL



10 field hospitals, 10 schools and 10 containers of reciprocations, Every hospital is composed from 4 containers, everyschool is composed from 2 containers.



There are moreover 10 containers to which inside has: two electricity-generating group ( 60 kw x 2 kw 120 total ), 1 kitchen and 1 laundry.



The prices: 1 hospital complete 135.000 Euro 1 school complete 55.000 Euro 1 container with 1 laundry kitchen and 2 electricity-generating group 24.000 Euro.



The 10 containers with reciprocations (attached file is the list ) are free for anyone who will take the entire stock.



Surface space:



approx. 1,000 squaremeters



Capacity:



300 peoples



Specifications:



3 tents 9 x 12 meter with insulatingand hygienical inlets

+ 17 smaller tents

beds complete

blankets and airbeds



Departments:



Reception

renuntiation ward

anaesthesia ward

operation ward

- all sections are complete -



Devices:



x - ray apparatus

laboratory

ambulance

pharmacies

therapy - devices

operation devices

bandage material

industry, tables, cabinets and further accomodation



Special:



3 electricity generators with cable andlights

complete food-unit with kitchen, dishes, cisternetc.

Material to erect toilets, washing-rooms,

firing and more cisterns



Packed:



complete on pallets



Price:



ASK



Details:



Characteristic of the Hospital



The hospital is designed to admit, sort and temporarily hospitalize wounded persons with mild and severs injury.

It provides professional surgical aid, its equipment makes it possible to carry out major operations on limbs and chest and miner operations on head.

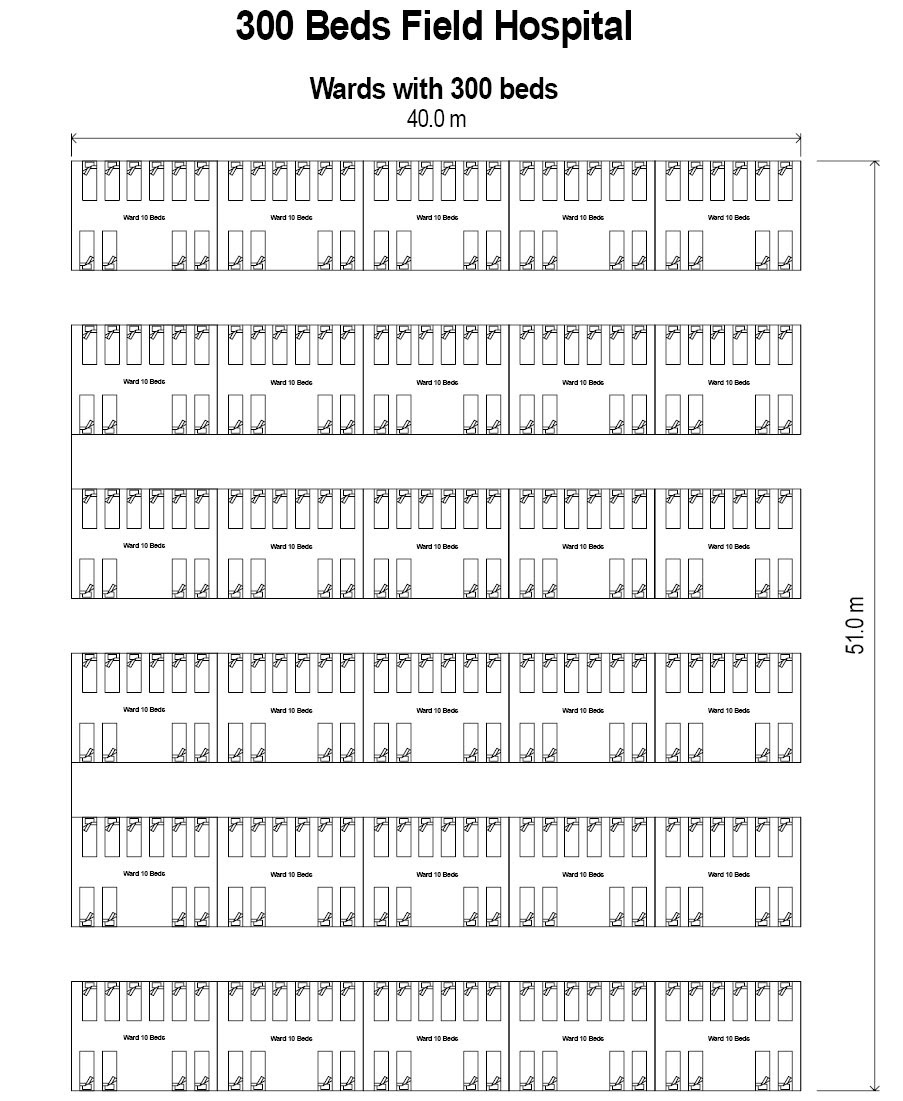

The hospital capacity is 300 beds, and the hospitalis placed in tents or appropriate buildings in various combinations.The performance of the main workplace of the hospital – the surgery – dressing unit – is 40 to 59 surgeries, of which 11 major and 24 medium or 39minorones.



Possible Structure of the Hospital



1. Special cleaning treatment department

2. Admission department

3. Resuscitation

4. Anaerobic department

5. Surgery – dressing unit / main work place of the hospital

6. X-ray department

7. Pharmacy department with dispensary and preparation of infusion solutions

8. Laboratory with out-patient department

9. Hospital department with 300 beds

10. Administration section

11. Accommodation for staff



Optimum Staff for the Hospital



11 medical doctors specialized in surgery

2 pharmaceutical chemists

50 paramedical staff

50 other staff in charge of running the hospital



To unfold the hospital of this type in winter or summer takes 10 – 12 hours or 5 –6 hours, respectively.



The material of the hospital comprises 30.10MT (Megatons)

of which sanitary material 14.00 MT

food 2.70 MT

other material 11.00 MT



The composition of the material and is packing permit to be transported by all means of transport / truck, railway, car,ship or plane.



Hospitals of this type can also operate in the so – called declared zones according to the Geneva Convention, provided they are visible marked with the symbol of red cross as requested by theConvention.



Material



Pos.



Name



Cartons



Description



1



SetB - 01 60 P



6



dressing cotton well package



2



SetB - 02 60 P



3



splints



3



SetB - 03 60 P



11



unsterilized dressing package



4



SetB - 010 60 P



3



anaesthetic material



5



SetLA 60 P



1



small autoclave



6



SetN - 06 80



4



medical objects



7



SetN - 08 80 REX



1



larg eoperating theatre



8



SetN - 09 80



1



operating material f. operation Dressing depart.



9



SetN - 13 80



11



hospital requisite / f. bedridden patients at medical transfer



10



SetS - 01 60 P



1



shock articles / for injured and burned patients



11



SetV - 01 80



2



large dressing unit / surgical instrum. and med. article



12



SetN - 15 80



2



small operating unit for small size surgical operations



13



SetV - 08 80



1



ambulance unit for outpatient examination



14



SetV - 05 80



1



disinfecting unit



15



SetV - 07 80



1



oxygen set



16



Medical bag Z VZ 80



6



first aid equipment



17



SetN - 05 70



1



medicine chest consumption material



18



SetN - 06 70



1



pharmaceutical unit / prepare section of sterilized drugs



19



SetL - 01 60 P



1



basic laboratory / clinical laboratory diagnostics



20



SetLCH - 1 70



2



washroom for the operation of field pharmaceutical unit



21



AutoclaveAut 41 VZ 65



1



Sterilization



22



Sterilizing drum



26



390x 195 mm



23



Crutches



60



wooden made with handles



24



Vessel



6



for disinfecting solution



25



Vessel



30



for blood transfer



26



Base for stretcher - store



16



27



Bracket for 3 stretchers



6



28



Distillation apparatus DP 5



2



29



AnaestizerNHM



1



30



Table for instruments store



9



31



Operating table - field type 59 positions



2



32



Dressingtable - field type



7



33



Plasticbottle - capacity 25 liters



12



34



Vesselfor stool dispatch



20



35



Vesselfor smear dispatch



20



36



Vesselfor spura dispatch



20



37



NTSbottle complete 0.5 liters capacity



600



38



AnaestizerNMP V



3



39



Whiteoperating rubber shoes



25 pairs



40



Sanitarystretcher - VZ 80



2



41



SetSKCM 60 P



1



commercialmaterial for the execution of auxiliary tasks



43



SetNZ 60 F



1



fitterstools



43



Plasticoperating saron



60



44



SetNT 60 F



1



joinerstools



45



Oxygenbottles, capacity 2 liters



14



46



Oxygencylinder, capacity 10 liters



10



47



Oxygencylinder, capacity 40 liters



5



48



Medicalequipment for treatment



1



of10 persons - oxygen



49



SetPSX 60 P



1



repumningstation for oxygen from 40 liters capacity cylinders in 2 literscapacityvessel



50



Manualresuscitation apparatus RK-32 V



6



51



Resuscitationapparatus SPIRETA V



4



52



Suctionflash 0-69 pedal type



5



53



Universalholder



3



54



Backsupport on stretcher



5



55



Twopart trestle



17



56



Universalstand



15



57



Platefor instruments



2



58



Vesselfor disinfecting



5



Solutionwith holder



59



Holderfor 1 wash basin



3



60



Holderfor 2 wash basin



4



61



Packhead



2



62



Bottleholder NIS



5



63



Bracketfor tent division



4



64



Showerunit MKS



1



smallshower set for hygienic washing up of 30 persons/hour



65



InstrumentPDP - 2



1



portabledisinfecting apparatus for clothes and underwear



66



X-rayapparatus ARTEX 2



1



67



Darkroom for x-ray apparatus



1



The set of medical material is without medicamentsand chemicals

The operation of pressure vessels requiresto carryour regular revisions and attendance by trained and instructedpersonal.



NCN Sanitary Material



Provisions for 1 set:



1.



Trailer field kitchen Type 26 E



3 units



2.



Water tank PP - 3 or PP - 5



1 piece



3.



Water bag, 100 liters



8 piece



4.



Water reservoir Z - 800



1 piece



5.



Material and utensils issuing room B



1 unit



6.



Dining utensils, tree parts



3,000 units



Pressure vessels for oil field kitchens were notsubjected to inspection by technical supervision.

The military administration does not undertake any responsibility for contingent technical defects on these pieces ofequipment.



Description:



Mobile Surgical - Type Hospital



The surgical field hospital is designed for admittance,classification and temporary hospitalization of moderately injured patients.It provides expert surgical medical aid. The equipment of the hospitalmakesit possible to perform major surgery of limbs thorax, and minor surgeryhead.The capacity is 300 beds.

The system of the field hospital consist of thedepartmentof special purification, of the admitting department, of resuscitationdepartment,and anaerobic department. The principal working place is aoperation-rebandagingblock. There are also a pharmacy department witha pharmacy and the manufactoryof infusion solutions, an x-ray department,a laboratory with an ambulanceand three hospital departments, each witha capacity of 100 beds. There isa maintenance section to ensure the operationof the hospital.

Hospitals of this kind can work in so called"declaredconditions" under the Geneva conventions, provided they are visiblemarkedwith an emblem of Red Cross.

The responsibility of the admitting departmentis toadmit and record injured people, to determine their diagnoses andabove allto provide immediate first aid.

The basic equipment of this working place consistsofstretchers that are, according to available conditions, placed on theconsolesfor stretchers or are laid or stands.

The set No. 7 - Medical items - serves for necessarytreatment of patients, as well as sets B-1 and B-2 A parts of these setsisalso a bandage material and splints for immobilization of limbs.

The equipment of the department of entries iscompletewith the first aid kid and neccessary hygienic instruments

The responsibility of the department of specialpurificationis to provide a complete special purification of patients.It is divided ontothree working-places:



a. disrobing room

b. wash room

c. dressing room



The basis equipment of this department consistsofthe bathing set MKS and field washing room.

Part of the bathing set is also the shower extensionsand a hand shower for washing seriously injured patients. DisinfectingsetV-5 consisting all the necessary instruments for disinfecting and purification.Moreover, the department of special purification is equipped with stretchers,banches and with other material necessary for activities of the department.



The responsibility of the resuscitation departmentis treatment of shock of injured patients and resuscitation and post-operativecare until the patients may be relocated to the hospital ward. There issomebasic equipment in this department. The set N-7 Medical Items hand-operatedresurgent apparatus RK-32-V, resurgent apparatus SPIRETA-V, and equipmentfor oxygen treatment for ten persons. The department is also equipped withsinks, palla, tables for medical instruments, rests and stands for stretchersand other instruments necessary for the function of the department.

The responsibility of the anaerobic departmentis toadmit patients, provide aid and hospitalize those patients who aresuspectedof having an anaerobic infection. This department fulfils thefunction ofthe surgical hospital. The precondition for the functioningof this workingplace is a strict separation of the anaerobic materialfrom the material ofother departments.



The basic equipment of this working place consistsof sets of splints bandage material B-1, bandage material B-3, a set ofsplintsE-2 and a table of rebandaging patients. The equipment is furthersupplementedwith stands for stretches, universal reck and other necessarymaterial.



The principal working place of the surgical fieldhospital is the operation-rebandaging block. The operation-rebandagingblockconsists of surgery room and sterilization room. The responsibilityof theoperation-rebandaging block is to perform all kinds of surgery uponadmittedpatients. The surgery room is designed to provide highly skilledtreatmentfor very seriously injured patients. It is equipped with twooperation tablesthat makes it possible to position particular parts orthe operating tablesinto different positions according to requirementsof the surgery. The operatinglamp provides enough light for the medicalpersonal

even during the most demanding surgery. The basicequipmentof the surgery room consists, besides other, of nois of surgicalinstrumentsand items N-7 and N-8, anesthesia apparatus NHM, aseptic materialin barrels,pedal-operated section 0-69 and apparatus ENDOKAUSTIK CHIROTOMand others.The surgery room is supplied with tables for surgical instruments,hangers,sinks, buckets, stands for stretchers, stetchers and other material.



The re-bandaging room of the operation-rebandagingblock is the working place, especially in the limbs injuries and minorburns.The re-bandaging room usually has four re-bandaging tables and operatinglamps.The set ZARREPO, a part of the re-bandaging room, is an exquisiteequipmentfor repositioning bone fragments.

There is also a set of surgical instruments N-,hand-operatedresurgent apparatus RK-32-V, suction apparatus 0-69 and anumber of otherpieces of hygienic and other equipment.



The sterilization room of the operation-rebandingblock is the working place where the surgical instruments are washed andsterilized,and where the aseptic material for the surgery room and rebandingroom issterilized. The material intended to be sterilized is put intobarrels. Allthe work is done in large sterilization apparatus AUT-41.



The x-ray room is designed to specify surgicaldiagnoses,to locate foreign bodies and to perform x-ray diagnosticallyexaminationsof patients. The x-ray room is divided in two parts. The examinationroomis equipped with a folding x-ray apparatus ARTEK II, which makes itpossibleto perform both sciascapic and sciagraphic examinations in verticalas wellas horizontal positions. The cartridges with exposed films aredeveloped inthe dark room, the other part of the x-ray room. The darkroom is dividedinto a dry

and a wet working place. These include films,foile,cartridges, tanks with developer, fixer, drier and other instrumentsand material.



The pharmacy department consists of a pharmacyanda manufactory of infusion solutions, and of the stock of medical material.The pharmacy ensures and carries out the supply with mass-produced pharmaceuticals,distilled water, medical oxygen, nursing and other medical material. Itpreparesmedicines according the individual prescriptions of physicians.The basicequipment of the pharmacy is a set N-5, a set for the operationof the pharmacy,and a distiller for preparation of distilled water. Themanufactory of infusionsolutions has two parts: - a wash room and themanufactory of solution itself:

The wash room is designed to wash transfusionbottlesand containers used in the pharmacy. The basic equipment of themanufactoryof infusion solution is a set N-6.

The manufactory must ensure maximal sterilityof producedsolutions. It is therefore appropriately equipped with sterilizationapplianceLA-60.



The daily capacity of the manufactory of infusionsolutions is approximately 150 liters.

The stock of medical material stocks all necessarymaterialto supply all the expert departments of the hospital. A part ofthe pharmacydepartment is equipment for preparing transferring oxygenfrom pressure tankscontaining 40 liters into tanks for 10 or 2 litters.



The responsibility of the ambulance is to maintainthe readiness on a working place for minor surgery and rebanding and aworkingplace for ambulatory treatment. The basis equipment of the ambulanceis are-banding table, a set for ambulatory examination V-8, a set of surgicalinstruments V-1 and other necessary material.



The laboratory is divided into a biochemical workingplace and a hematology working place. Its responsibility is to performvariousexamination of samples prepared by other departments, is equippedwith a setL-1, sterilization apparatus LA-60 and other material necessaryfor the operationof a clinical laboratory.



In the surgical field hospital there are usuallythree hospital departments, each with a capacity of 100 beds.



The responsibility of the hospital departmentisto hospitalize and treat injured and sick patients. The basic equipmentofthose departments are gots. Their numbers corresponds to the capacitiesofparticular hospital departments. As a part of the equipment there arealsotables, chairs and hygienic requisites and equipment.



An integral part of a surgical field hospitalisalso the maintenance support. It serves to supply all the departmentswithelectricity, cares for small repairs and maintenance of equipmentof the fieldhospital and last not least, it secures food and preparesday-long food forpatients and for the personal of the hospital. Naturallyit is properly equippedto serve this need.

There are three electricity stations for theproductionof electric energy.

These stations capacity is 1 KVA, 3 KVA and 7.5KVA,possible is 15 KVA.

The power distribution is provided by illuminatingsystems.

For the preparation of food there is a fieldkitchen.

A complete system of eating utensils and a reservoirfor 300 liters water are parts of maintenance support.



The hospital is located in tents or in availablebuildings in various combinations. Moreover, there are 3 large medicaltentsand 17 small medical tents in the delivered set. The compositionof the materialand the way it is packaged makes it possible to implementthe transportationof the surgical field hospital by automobile, by trainand as well as by sea.



We are in the position to provide a video-tape and further information - but we need a signed and sealed LOI with buyers letterhead to proceed

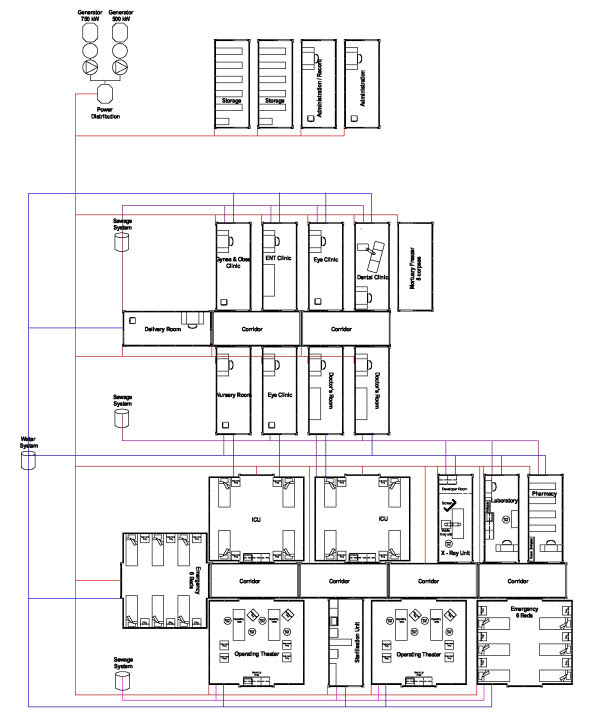

50 Beds Field Hospital

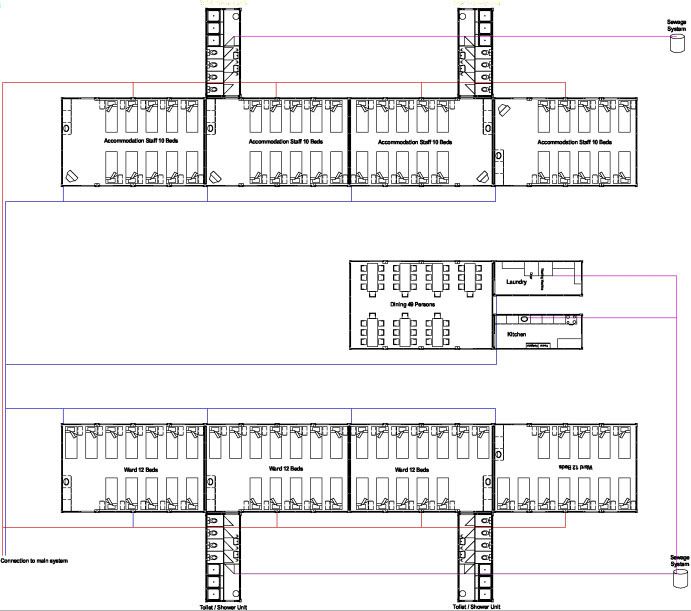

Wards, Staff Acommodation and Dining



Operation Theater in an Expandable Container



Demecos Mobile Hospital is a concept of having a fully equipped and functional hospital units that can be transported from one place to another with ease. With the Operation Theater build into a “3 in 1” expandable container the module can be ready to service with 1 hour from arrival to site.

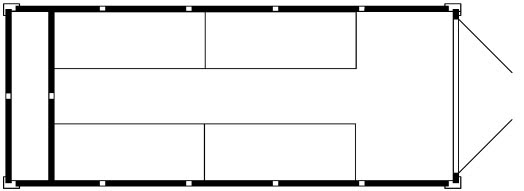

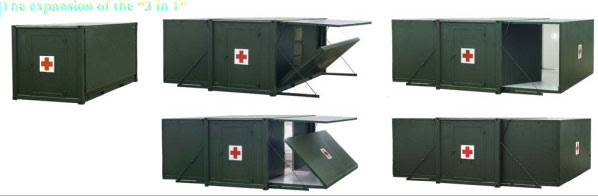

The container is an expandable 3 in 1 container with the below overall measures:



Height, outside:



2,44 m



Width:



2,44 m



Length:



6,06 m



Width unfolded:



6,47 m



Floor area unfolded:



37 m2



Weight: :



3.200 kgs



15 minutes after the base container is secured on the corner casting, the shelter is ready for use

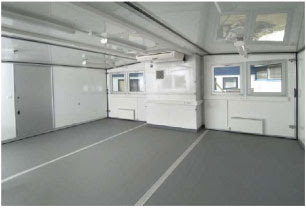

Inside The Container



The container will have the below basic configurations:



All floors equipped with heating cables

Utility unit for gas battery and power unit

Windows and doors - adjusted to customers needs

Electrical - and telecom cables installed in panels

Lights and Electrical connection according to customers specifications

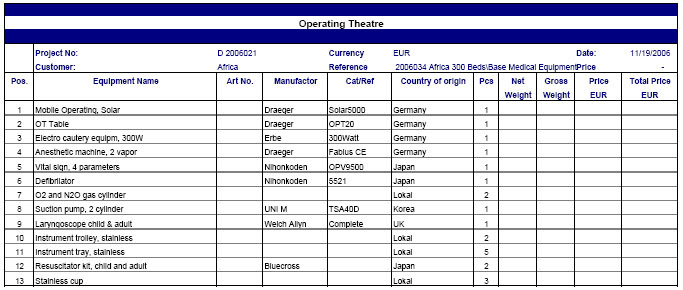

Operation Theater



The Operation Theater will be equipped with:



Mobile Operating light, 5 bulb

TO Table

Electro cautery equipm, 300W

Anesthetic machine, 2 vapor

Vital sign, 4 parameters

Defibrilator

O2 and N2O gas cylinder

Suction pump, 2 cylinder

Laryngoscope child & adult

Instrument trolley, stainless

Instrument tray, stainless

Resuscitator kit, child and adult



Scrub-up Area



Scrub-up Area in stainless steel



The expandable shelter can be equipped with all needed medical equipments for the different functions:



Dental Clinic

Emergency and Triage

Examination Room

Intensive Care

Maternity ward

Operating Theatre

Post Operation

Pre Operation

Sterilization

X-ray

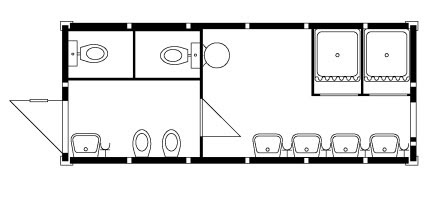

Toilet / Shower Unit



Containing:



2 toilets

2 showers

2 urinates

5 wash basins

water heater

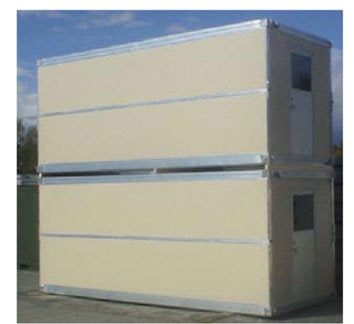

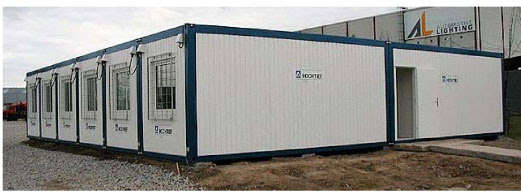

ISO container modules



Modules ready for connection



Erected on site

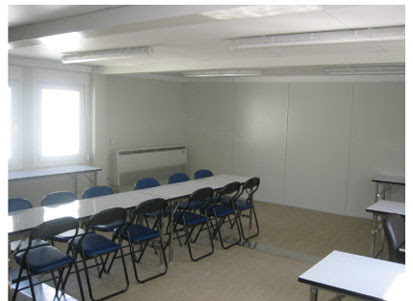

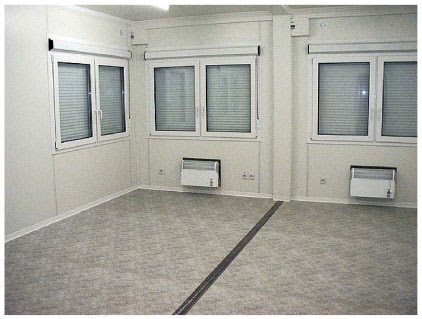

Interior



Corridor

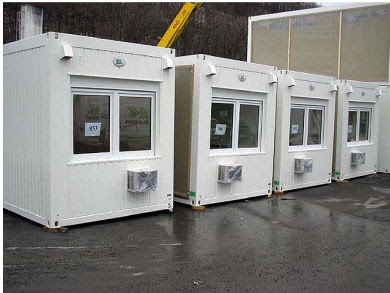

The Containers in use

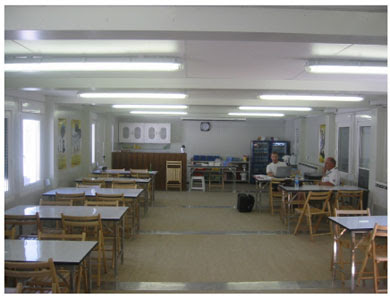

Canteen in 6 containers



Office in 3 containers



Kitchen



The Kitchen Unit is configured inside an ISO 20 CSC steel container.



Power Inlet Panel as well as outlets to facilitate domestic functions and connection for equipment and functions is installed. The Kitchen configuration will be fitted to accommodate production kitchen and catering functions for 100 Persons, by using facilities within the hospital complex.



Integrated Kitchen Equipment:



The unit is fully equipped to produce 5 meals per day for 100 persons as well as a dish washer line to clean cutlery. The following equipment is installed in the kitchen unit;



The kitchen will have the following cooking equipment:



One rice cooker able to cook 10kg of rice each time within an hour.



One wok cooker designed for stir-frying using a standard wok of 24 inches diameter.



One water boiler able to boil 50 liters of water within an hour



Two convention ovens each with a capacity of 4 full size GN Pans of 50mm depth



Two hot plates with cooking area of about 50cm x 50cm each.



The kitchen will come with stainless steel preparation tables.



There will be adequate shelving and storage space to keep and secure condiments and the accessories supply together with the kitchen, such as the water tank, water pump kits, spare burner, tables, wash basin, insulated food containers and tool sets, etc.



The refrigeration system will consist of a refrigerator and a freezer and will be refrigerated by 2 separate refrigeration units. Both refrigerator and freezer will have large door for easy access to the foods stored inside. The operating temperature of the refrigerator and freezer will be 5 degree Celsius (+5°C) and minus 18 degree Celsius (-18°C) respectively.



Laundry

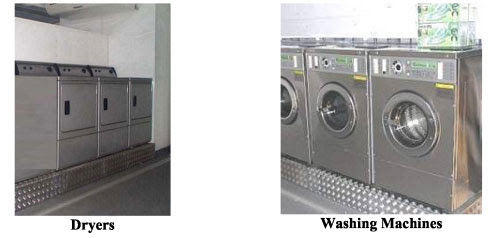

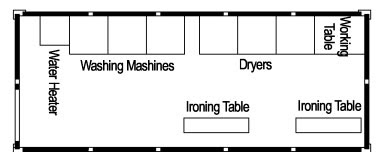

Complete laundry unit with washing machines and dryers in a 20 ISO Container.



Equipment included:



1 unit of 3000W Electrical Resistance Heater

3 units of Industrial Washing Machines Power inlets for 220V AC 50hz/Generator System

3 units of Drying Tumbler 2 units of Internal Lighting Fixtures 2x36W

1 unit of Cloth Roller 1 unit of Fire Detectors

2 units of Flat Iron 1 unit of Fire Extinguishers, 6 kgs

2 units of Ironing tables Leveling Jacks (set of 4) lifting height 300 mm

1 unit of Air Conditioning

20 ISO Container



Post Mortem 20 ISO Container



The 20 refrigerated container with lift and shelves is capable of holding 10 - 12 corpses and is designed for use within the climatic range from -31 ° C to +55° C.



The 20 refrigerated ISO container has reinforced insulation and temperatures adjustable from +29°C to -29°C for outside temperatures of +50°C and for an intensive use. The refrigerating unit is however able to function by outside temperatures up to +55°C.



Dimensions .



20 food Length mm: Width mm: Hight mm:

Outside:

Inside:



Door:



6058 2438 2591

5520 2160 2260

- 2286 2261

Floor area 13,7 m2



Mobile Hospital in Foldable Shelters



Demecos Mobile Hospital is a concept of having a fully equipped and functional hospital units that can be transported from one place to another with ease. With the Operation Theater build into a Foldable shelter container the module can be ready to service with 1 hour from arrival to site.



20 Foldable shelter ready for transport



7 units of Foldable Shelters equals one standard ISO container size



Panels is constructed and insulated as one piece sandwich panel consisting of outer cladding; vertical stringers integrated in the insulation, inner lining and extruded aluminum edge profiles as a four sides outer frame.



The claddings made out of aluminum have thickness of 0.8 mm, are without corrugation and are preprinted.



The Foldable shelter can be lifted and mounted in 30 seconds by 8 men. Lifting eyes are affixed on each corner for lifting by crane.



The Aluminiums door is 900 x 2000 mm



Electrical system & outlets are integrated in ceiling panel.



Heating treasing (80W/m²) is installed in floor panel.



The dimension of the Foldable shelter in erected possition (inner/outer): Length: 5856 / 6000 mm Height: 2350 / 2540 mm Width: 2400 mm



Weight: 925 kgs



Floor Area: 14 M2



Units are easily joined to form large open rooms here: Two units combined to one room.



The Shelter can be stacked

---

---

---
