the following new stock arrivals.



10 x Units available for delivery end October. 10 x Units available end of November.



TECHNICAL SPECIFICATION

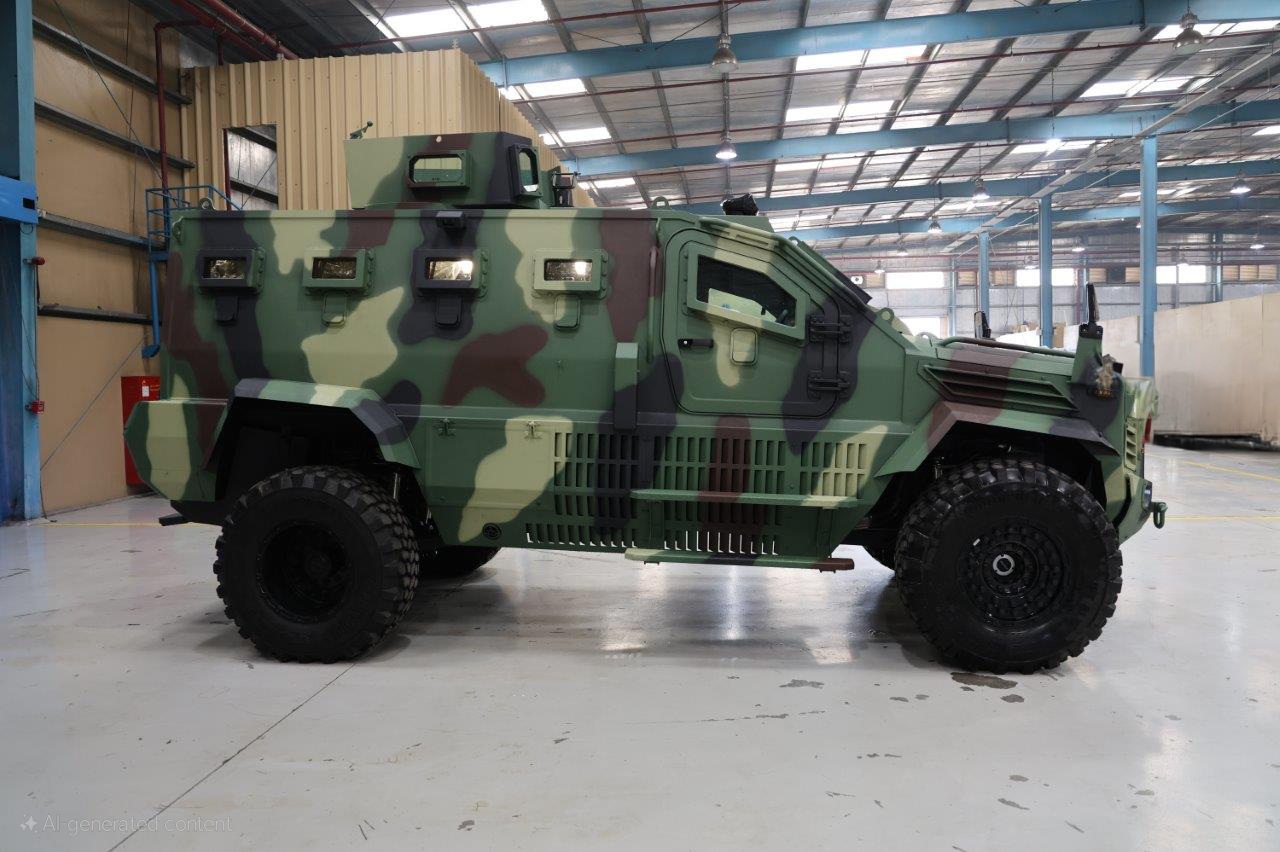

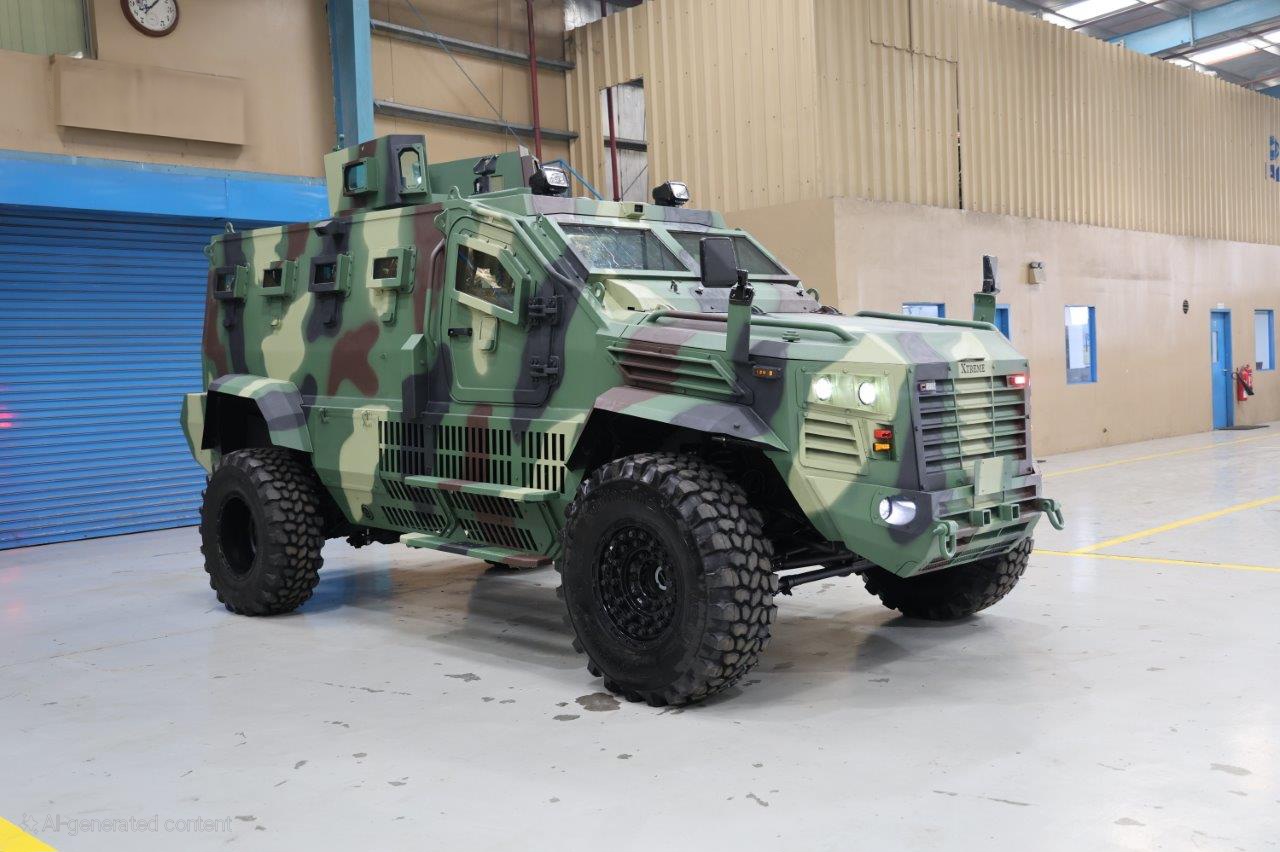

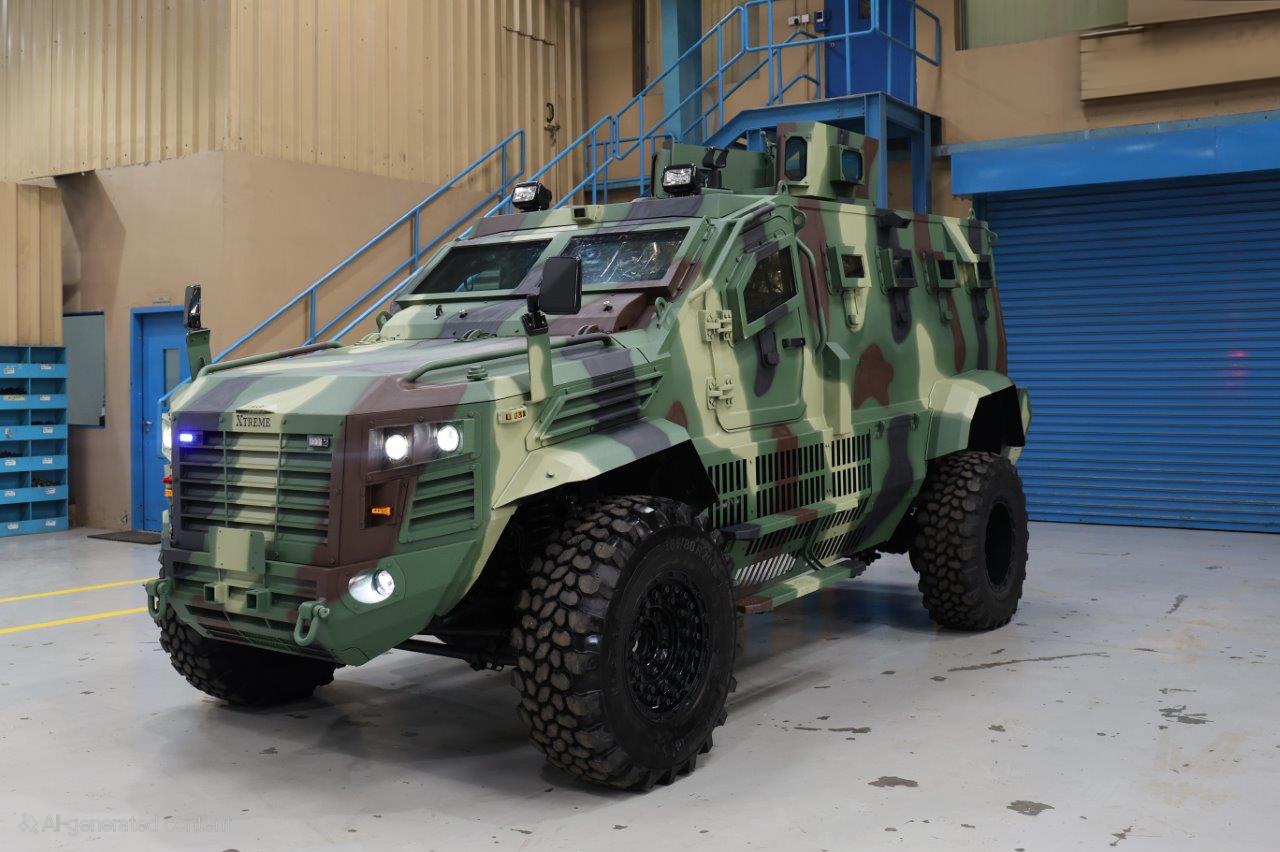

FULLY CERTIFIED STANAG ll ARMOURED LEVEL FORD F-550 GUARDIAN XTREME MRAP 4X4 V8 DIESEL AUTO



Recommended Retail Price: $ 535000.- USD (Subject to Batch Buy of 10 Units)



Our Set Price Offer: $ 399000.- USD (Subject to Batch Buy of 10 Units)



SPECIFICATION: GUARDIAN XTREME - MRAP - 4X4 - DIESEL - V8 - AUTO



FULLY CERTIFIED ARMOURING: STANAG 4569 AEP-55, VOL 1, LEVEL 2 BALLISTIC PROTECTION, STANAG 4569 AEP-55, VOL 2, LEVEL 2a, 2b and 3a MINE PROTECTION



Vehicle Technical Details

Engine

• Engine: 6.7 Liter Power Stroke V8, Turbo Diesel

• Horsepower: 330HP @ 2,600RPM

• Torque: 1,119 Nm @ 1,600RPM



Transmission

• TorqShift® 10-Speed SelectShift® Automatic



Steering

• Power-assisted (available in LHD & RHD)



Electrical

• 12V system



Chassis Super Duty Ford F550 chassis:

Drive Part time 4x4

Armoured Vehicle Weight 9,500kg (+100kg)

Maximum speed >120 Km/h

Max gradient ~72%

Static Side slope ~60%

Tyre size 365/80 R20

Vertical step up 0.4 m

Approach angle 42± 2 Deg

Departure angle 40± 2 Deg

Wheel base 145

Fuel tank capacity 200 L

Range > 700 km at average speed of 90 km/h

Length 5980 mm (+100mm)

Width 2490 mm (+50mm)

Height 2580 mm (Without turret) 3050 (With Turret) (+50mm)

Wheel track 2300 mm

Fording depth ~1 m

Ground clearance 300 mm (+10mm)

Turning Radius 7.5 m



Armouring Specifications and Upgrades



Opaque Armour:

• Five sided armouring of Crew compartment to defeat up to 7.62mm x 39 API BZ ammunition as

per STANAG 4569, AEP-55, VOL 1, Level 2 standard (see “Opaque Armour Specifications” section 4.0).

• Vehicle armouring shall be constructed in such a way as to ensure that a projectile following

a linear or angled path will not enter the vehicle’s interior

• All vertical areas & Roof are constructed of ballistic steel.

• ‘V-hull ’ shape floor to protect occupants against blasts from mines, Improvised Explosive

Devices, fragmentation grenades and other explosive threats as per STANAG 4569, AEP-55,

VOL 2, Level 2 (2a and 2b) and Level 3a:



6 kg (explosive mass) Blast AT Mine:

2a – Mine Explosion pressure activated under any wheel or track location.

2b – Mine Explosion under centre.

8 kg (explosive mass) Blast AT Mine:

3a – Mine Explosion pressure activated under any wheel or track location.



Transparent armour:

A combination of glass, polycarbonate and Mylar are bonded together using the latest

technology, producing one of the finest transparent armours available while incorporating the following

qualities:

• Glass is positioned geometrically to obtain optimum blast mitigation from side blasts

due to improvised explosive devices.

• Anti-spall shield protecting against shattering glass

• Finest optical quality, minimal to no distortion

• Will defeat up to 7.62mm x 39 API BZ ammunition as per STANAG 4569, AEP-55, VOL 1,

Level 2 standard (see “Opaque Armour Specifications” section 4.0)



Engine Compartment:

• Engine compartment is also protected with ballistic steel.

• Air vent louvres are installed on the front and top of engine compartment to allow for

air ventilation through.



Turret:

• 360 Degrees Rotatable - Manually Rotatable Turret providing protection up to

STANAG 4569, AEP-55, VOL 1, Level 2 standard



Armoring and Performance Upgrade Details

Doors and Hinges:

• Entry and exit points are located on the top, rear, and both sides of the vehicle.

• 02 x doors on side for driver and co-driver and a rear door.

• All door hinges are engineered-for-purpose heavy-duty type hinges, capable of sustained

functioning of heavier armoured doors

• The hinges directly connect to the armouring steel in the doors and the armouring steel in the

pillars

• All interior door panels include reinforced robust grab handles in order to assist with the

opening and closing of the heavier armoured door

• Two interior manual locking latches are installed in all doors in order to prevent unwanted

access to the interior of the vehicle while maintaining ease of access to the vehicle

• Each and every door aperture, including the optional roof mounted turret, will be installed

with ballistic steel overlap and splash return around the entire door aperture, 360 degrees

of the aperture, to prevent any ballistic penetration and keep the armoured door in place in the event

of a large side blast.

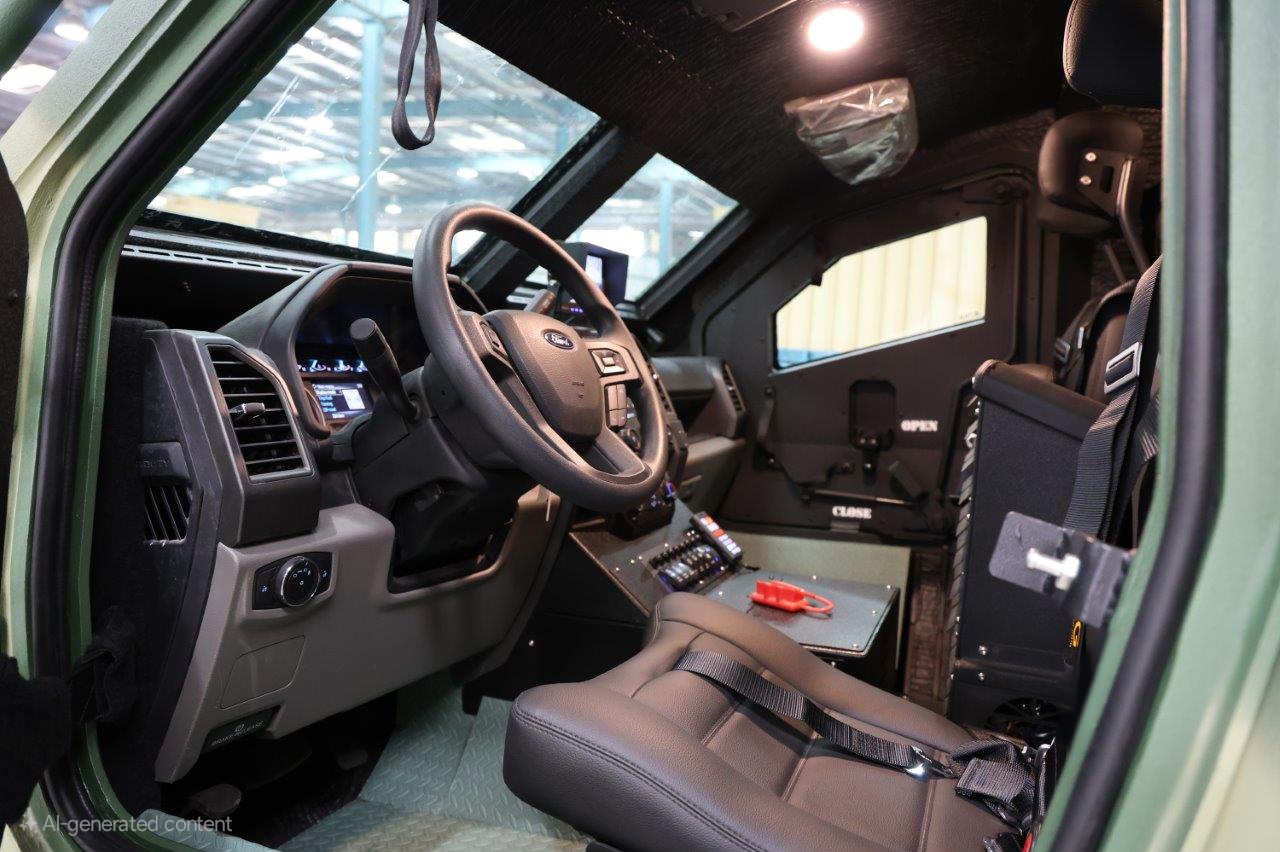

Seats and Interior Upholstery:

• Total seating for 10 personnel including driver

---

---

---
