15 x New Ford F-550 APC Armoured Level B6+ STANAG 4569 LEVEL 2 FULLY CERTIFIED

Offer: New Ford F-550 APC Armoured Level B6+

Status: New, Completed Units Available: 15 Units Availability: Immediately!



New 2025 Retail Price: $342,000 USD per unit



Special Offer Price: $300,000 USD per unit (Subject to Batch Purchase of all 15 units)



Vehicle Specifications

Model: Phantom Fuel Type: Diesel (Euro 3) Armor Level: STANAG 4569 Level 2 Drivetrain: 4x4 Horsepower (max): 330hp @2200 RPM Curb Weight: 7000 Kg Engine: Ford Power Stroke 6.7L or Cummins Combat Weight: 8000 Kg Transmission: Automatic 10 Speed Payload Capacity: 1100 Kg Top Speed: 120 km/h Turning Radius: 8m Range: 750 Km Fording Depth: 1.2m



Armoring

Armor Protection: 360 degrees protection at all points Perimeter and Floor Protection: Ballistic Protection to meet STANAG 4569 LEVEL 2



Glass Protection:



Anti-spall shield protecting occupants against shattering glass

Multiple impact protection

Finest optical quality, Minimal distortion

Minimal delamination

Minimal if any discoloration from UV rays

Thickness: 60mm STANAG 2

Additional Protection:



Battery protection: B6

Ballistic Radiator Protection: B6

Computer unit & Fuse box protection: B6

Fuel tank: armored with 10mm side, 4mm cold roll steel box construction

Bolt on box construction ballistic steel protection under passenger area and engine compartment

Front Protection B6 (Engine Compartment)

Doors Locks & Hinges:



Armor overlap at all doors to prevent penetration

5 Door layout: 4 passenger doors and 1 rear cargo door

Heavy Duty Door Hinges

Suspension & Brakes

Custom made suspension components for safety, performance, and handling

Front coil spring with shock absorbers and rear leaf spring with shock absorber

Fully upgraded Alcon Brakes System

Tire, Rims & Run-flat Tire System

All tires (including spares) fitted with heavy duty run-flat tire insert

Tires: 335/80 R20 Tubeless

Rims: Hutchinson or equivalent military type

Spare tire mounted on side of vehicle

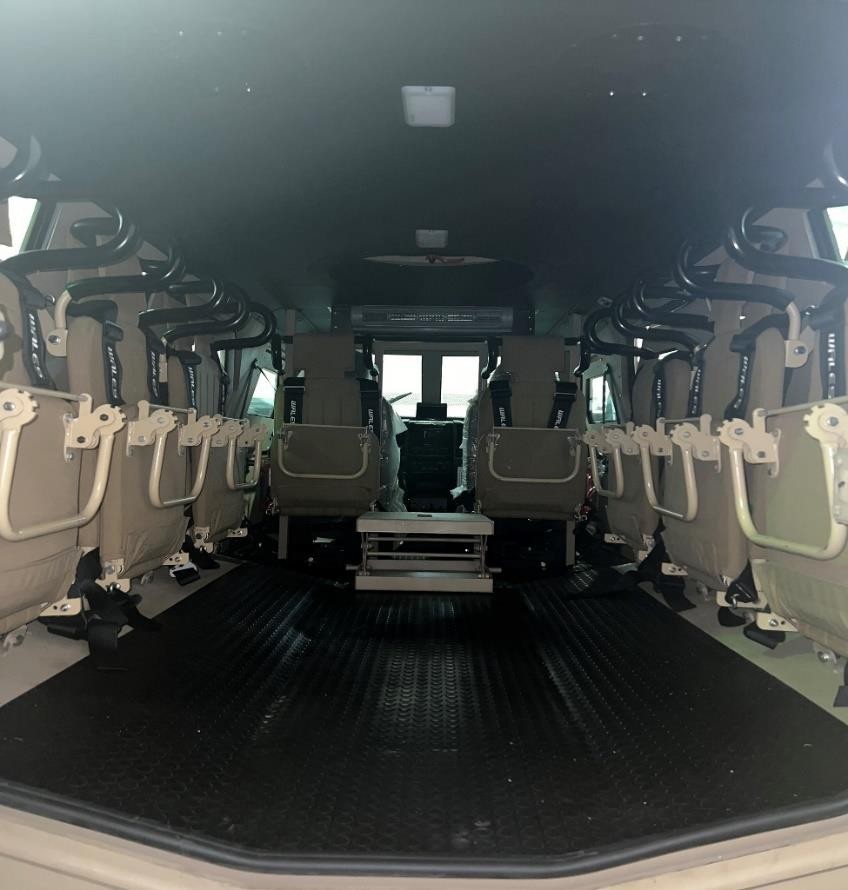

2 + 8 Seating Capacity: Driver, Commander plus 8 crew

Heat Insulation

Equipped for extreme hot and cold climatic conditions

Climate Control:



OEM system plus extra rear heavy duty air conditioner

Two exhaust fans controlled from a switch located in the driver compartment

Additional heat dissipation and removal of smoke/airborne chemicals

Storage & Other Interior Features

Storage:



Space for storage of ammunition or other equipment and gear

4 Small Fire Extinguishers

Interior Features:



Anti Slip HD black textured finish on interior rear floor

Interior light with night operation blue light

Interior control for PA system / Siren / Exterior strobe lights

Interior control system for external GO Lights

Exterior Features

Auto Engine Fire suppression system

Heavy Duty Electrical Winch

Rear Camera

Grab Handles and foot rails along the rear & both sides of the vehicle

2 Front GO lights with interior control

Front LED bar Lights plus OEM lights

Paint: TBD

8 Gun Ports

Armored Turret with multi system bracket

---

---

---
