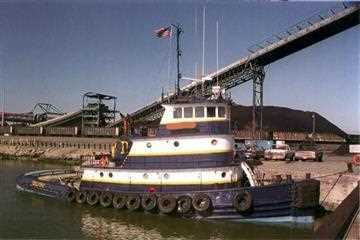

Model Bow Twin Screw Tug Boat



Built in 1968. It boasts a gross tonnage of 149 and a net tonnage of 101. The vessel measures 100 feet in length, 27 feet in width, and has a draft of 11.5 feet, with a height of eye reaching 24 feet. The wheel size features a 4-blade stainless steel configuration, with an 88-inch diameter and 66-inch pitch. The fuel capacity is substantial at 32,000 gallons, complemented by a lube oil capacity of 758 gallons, waste oil capacity of 400 gallons, and a water capacity of 5,000 gallons. Powering this vessel are two Caterpillar 3512 main engines, delivering a combined horsepower of 2400 HP. Additionally, it is equipped with two Detroit Diesel 4-71 generators, providing 75 kW at 1800 rpm for the port side and 55 kW at 1200 rpm for the starboard side. The reduction gear consists of two Lufkin RS-2118 units with a ratio of 5.222:1. For towing capabilities, the vessel is outfitted with two Patterson push gears using a 100-foot x 11/8” cable and a towing gear measuring 1200 feet x 8” nylon hawser. This extensive array of specifications showcases the Model Bow Twin Screw as an exceptional asset for marine operations.



Port 3324 7/2015 Complete Overhaul



Stbd: 17673 7/2105 Top End Overhaul



Gear Running Hours: Port: 22922 Stbd: 29184



Currently Dry Docked & Used Sparingly



EXW: North East USA



$800,000

---

---

---
