SIEMENS SGT 600 DLE - Complete CCPP - 35 MW - Ref : P/AA-87-31.3



1 Set - Siemens SGT 600 DLE,year:2011,Hours:553,Fuel:NG,10.5 KV ,50 Hz ,Dry Low Emission - Complete CCPP

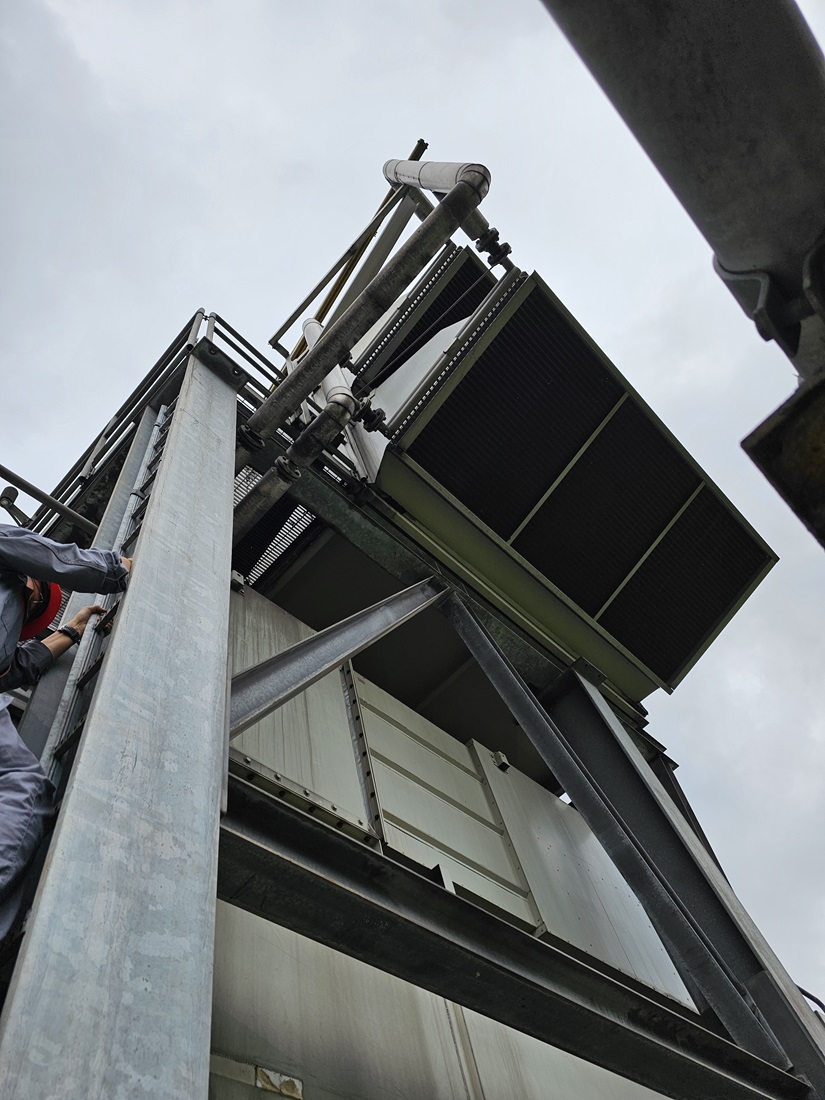

Scope:Siemens turbine+gearbox+generator+HRSG+cooler+lube+Sound-Proof+control+Steam turbine+steam turbine generator+high volt cabinet+low volt cabinet+mcc+transformer



Total Power : 25+10 = 35 MW

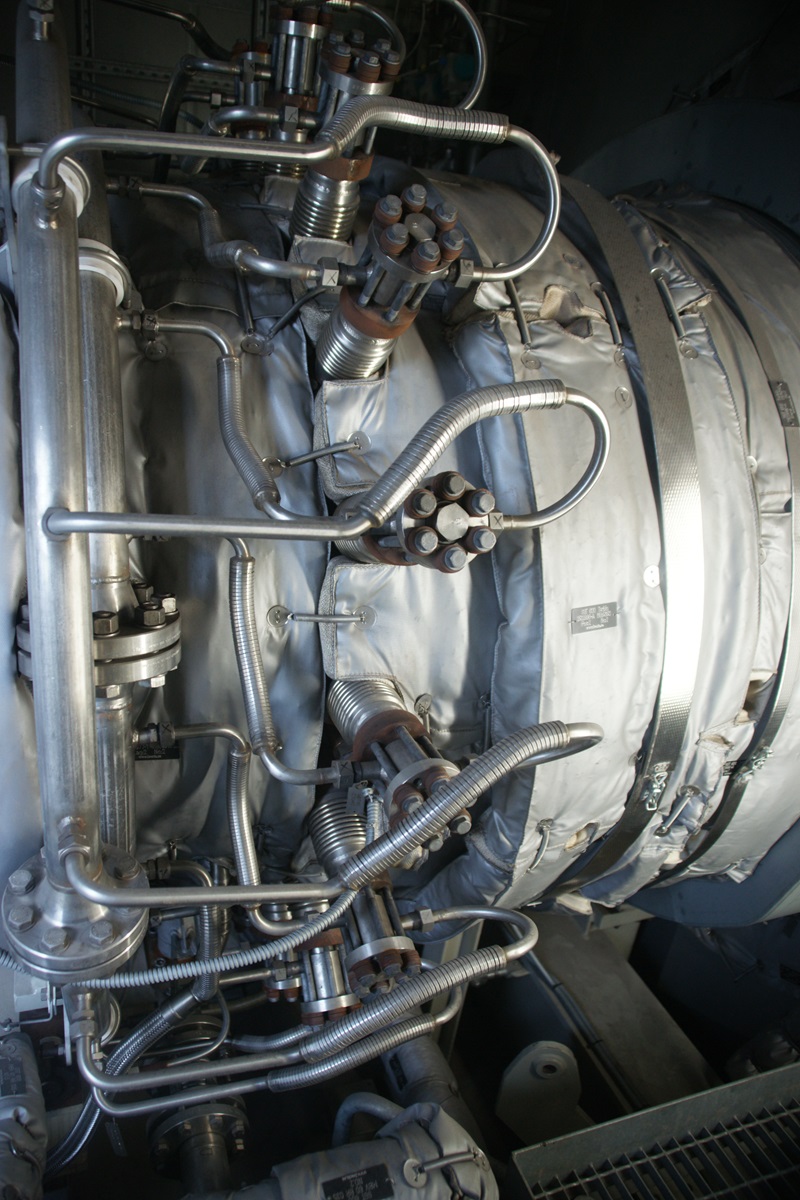

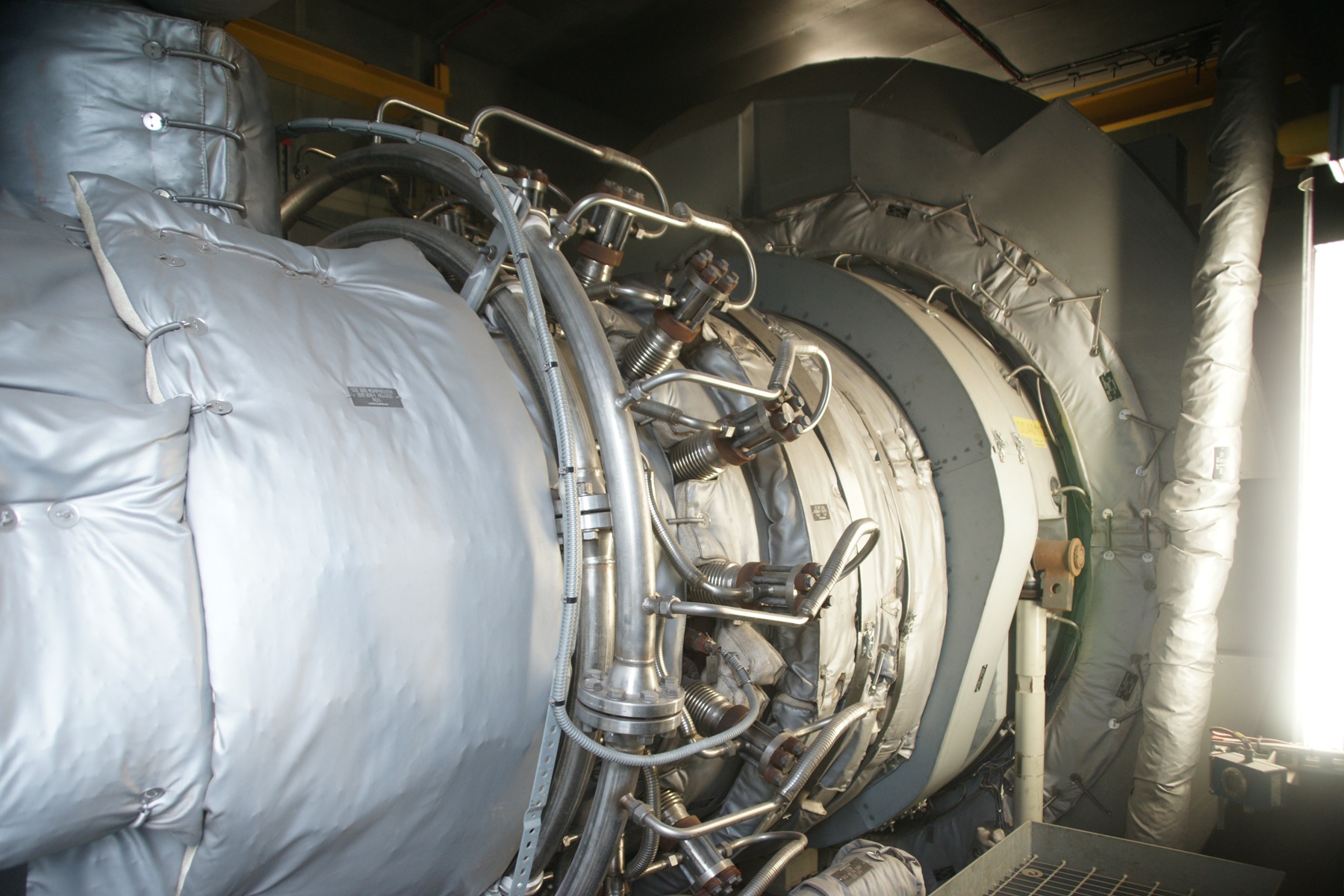

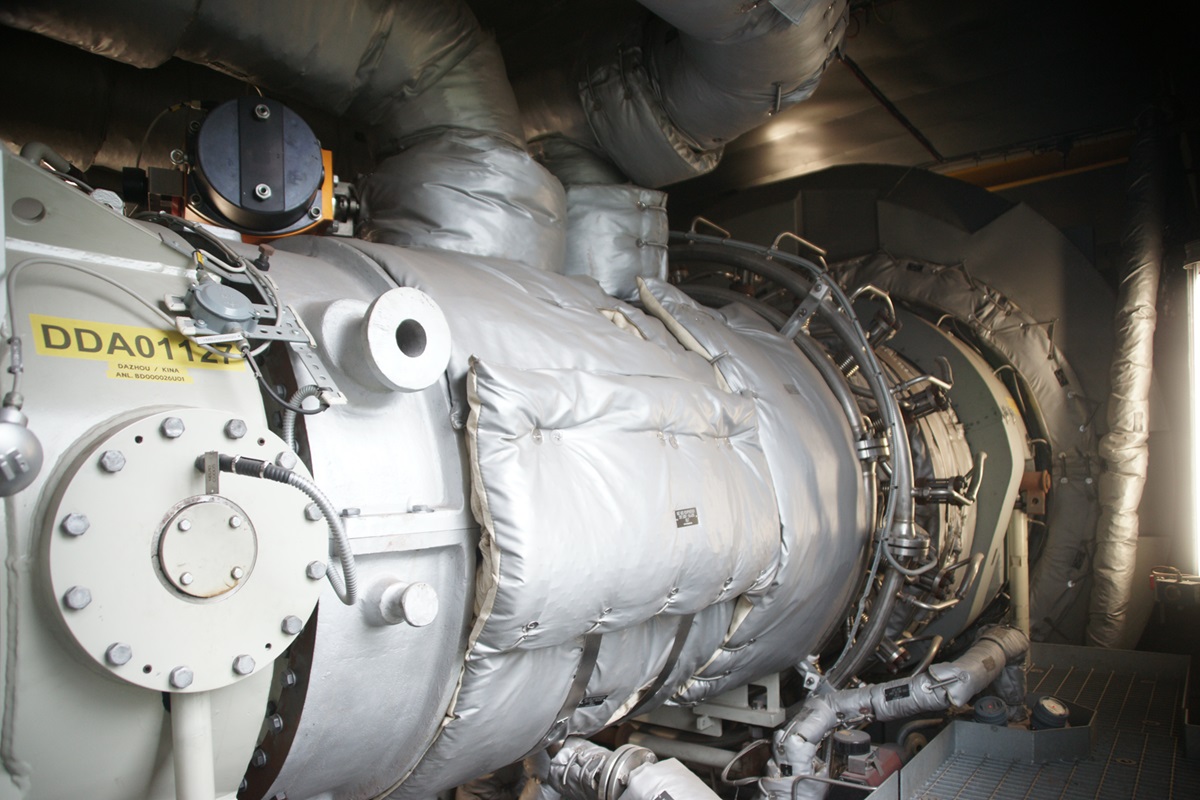

Siemens GAS Turbine



Model:SGT600DLE



Dual Shafts



Emission type:DLE(Dry Low Emission)



Made in Sewden



Power Turbine speed:7759rpm



Equiv.Working hours:553



Number of start:52 times



Total Service time:374



Equiv Operating Cycles:58



Fuel:Dual(Natural Gas),



(Gearbox Ratio:5.172,speed:7759rpm down to 1500rpm,alternator speed:1500rpm )



Quantity of Shafts:Dual Shafts(may drive for compressor)



scope of supply:



1-High Pressure Compressor,2-Combustor,3-High Pressure PT,4-PT,



5-GearBox(Voith),6-Alternator(ABB),7-Gas control part,8-Control room,9-Recovery Heat Boiler

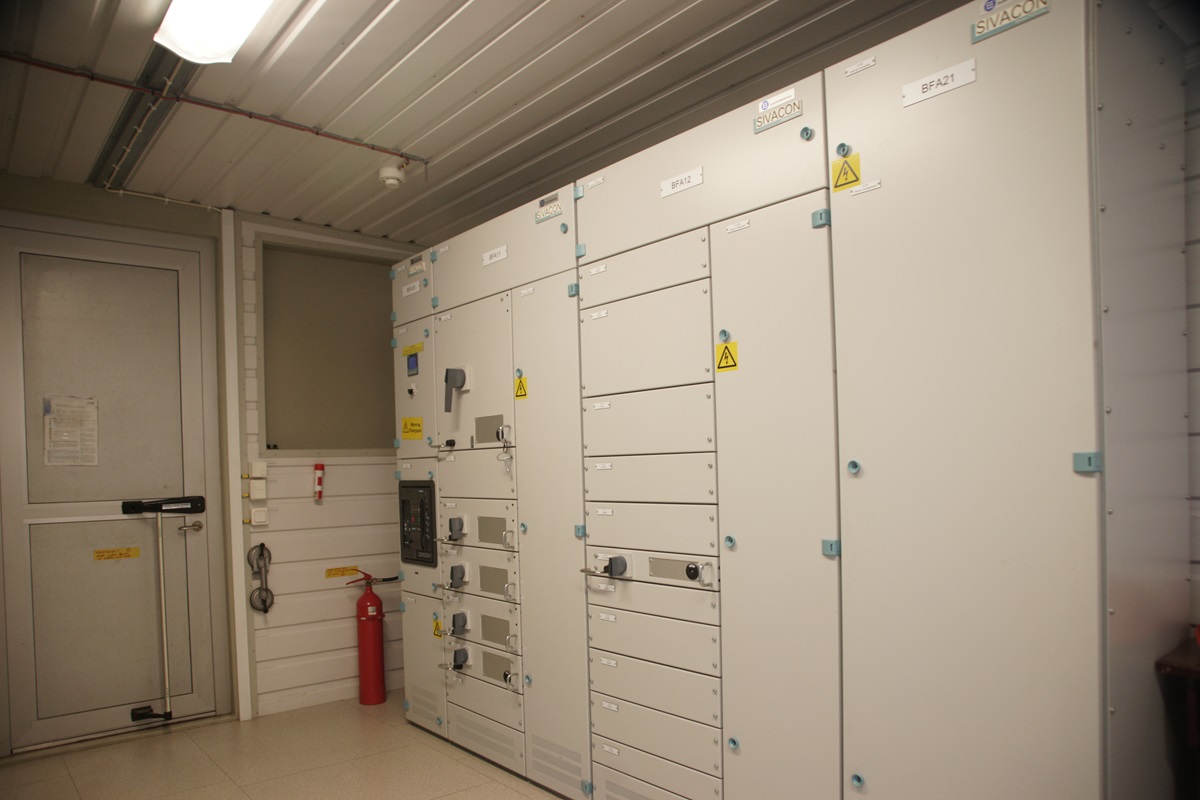

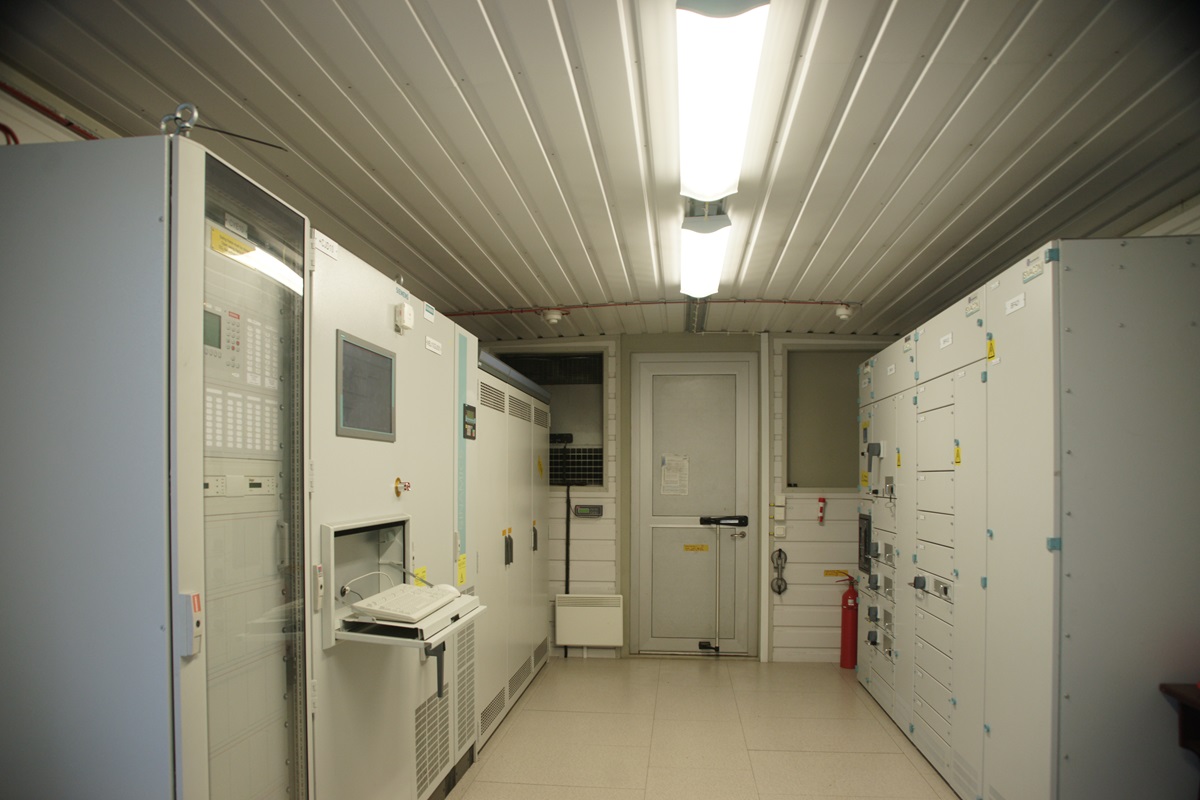

10-Original manual book,11-Chimney,12-Transformer,13-Dryer,15-Fans,16-Airconditionr,17-Control boxes

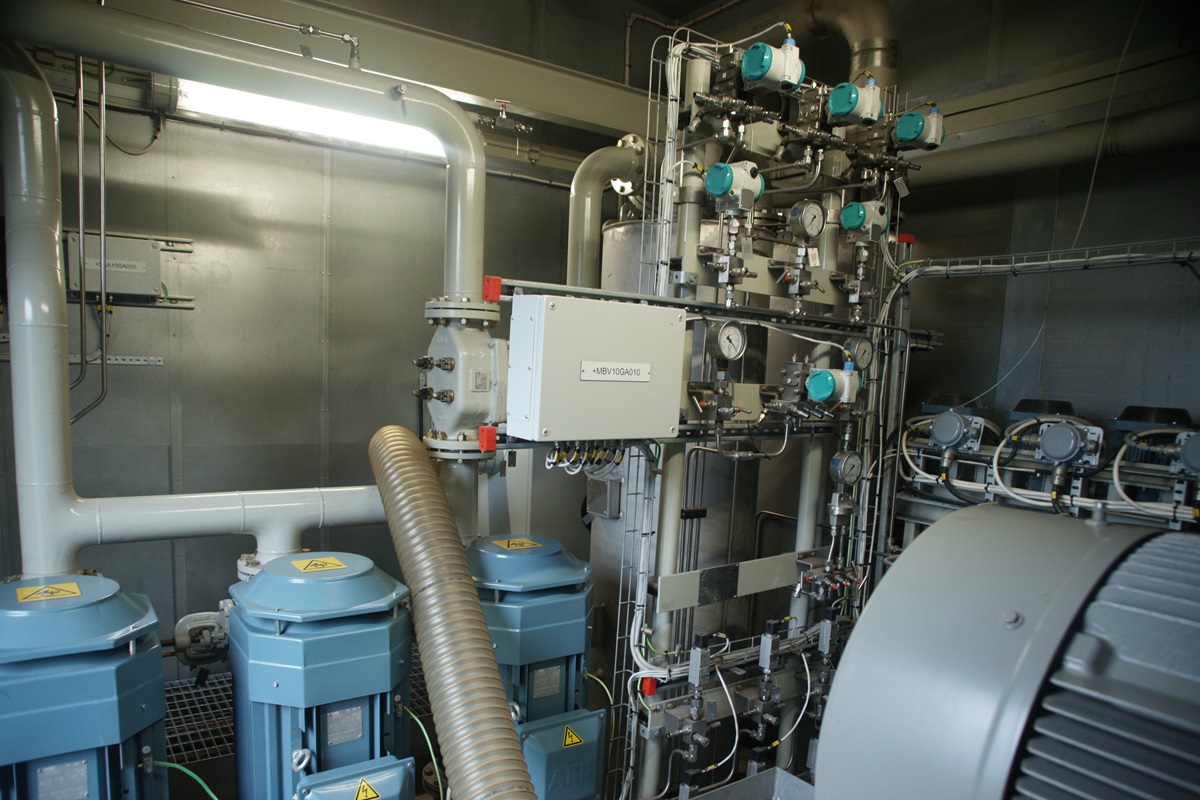

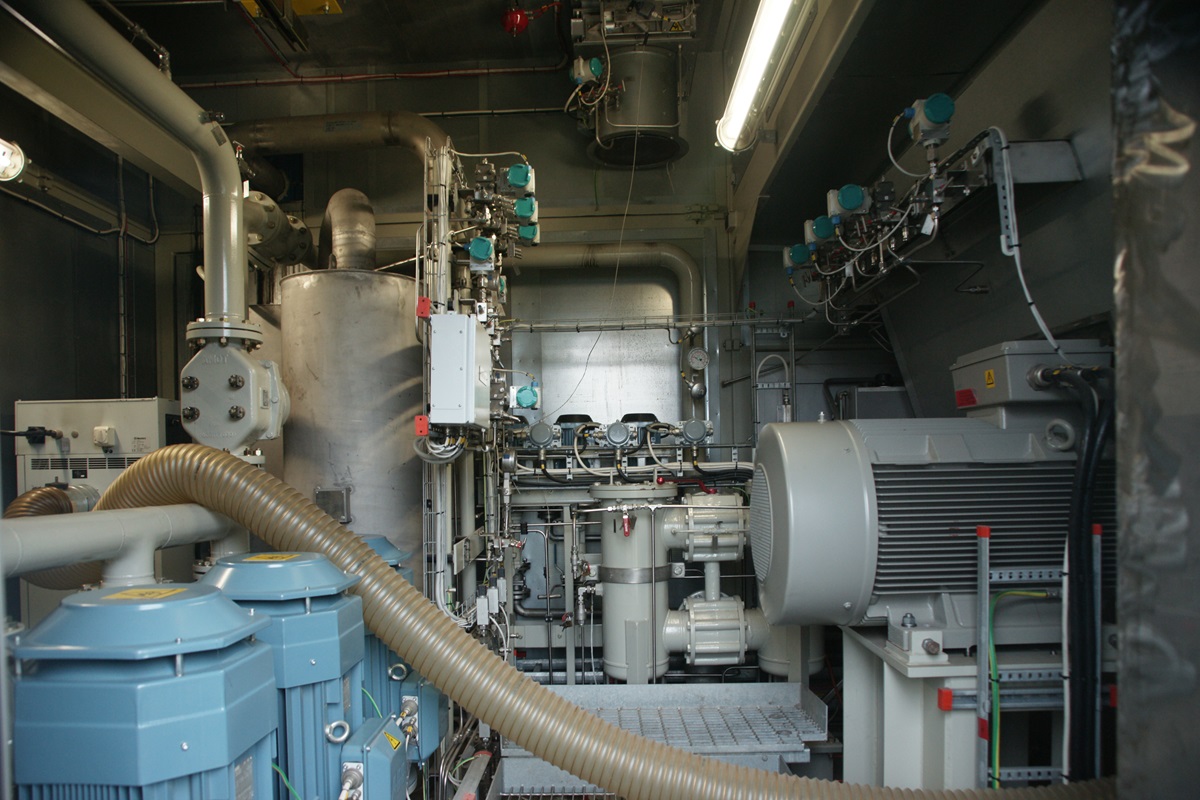

18-Control computer,19-Cable,20-Lube system,20-some new spare parts



maintenance record:



a-The maintenance mainly involves passing hot air from the dryer to the combustion chamber. We have previously tried turning the dryer. Desiccant is placed inside the steam drum of the waste heat boiler.



b-The last run was in December 2017, and it was started every three months for about a year. Finally, we communicated with Siemens to adopt a long-term maintenance method, so we did not attempt to ignite again.



Price : USD 15,950,000 FOB Shanghai , China



Immediate Delivery



LOI / POF is required for further details



Inspection : Can be arranged subject to Refundable Deposit into escrow
