Brand New GE Frame 5PA Gas Turbine Generator - 26MW

Brand New GE Frame 5PA Gas Turbine Generator with additional specifications to enhance your presentation:



Offer: GE Frame 5PA Gas Turbine Generator – 26 MW

Manufacturer: General Electric

Condition: Brand New, Never Installed

Technical Specifications:

Power Output: 26,060 kW (26 Megawatt Hour “MWh”)

Cycle Type: Simple Cycle

Fuel Type: Natural Gas

Combustion System: Dry Low NOx (DLN)

Efficiency: 27.7% (Heat rate @ site rating: 12,807 BTU/kWh)

Exhaust Temperature: 850°F

NOx Emissions: 25 ppmvd at base load

Rotational Speed: 5100 rpm

Design Standards: API 616

Starter Type: Electric Motor Starter

Gear Reducer: Rated 5100/1800 rpm

Exhaust System: Side exhaust included

Fuel System: Natural gas fuel system with operating pressure of 363 PSI

Fuel Specification: 1028 BTU (20,699 BTU/lb, LHV)

Generator Type: GE TEWAC

Generator Rating: 40,000 kVA

Generator Output: 30,000 kW

Voltage & Frequency: 13,800V / 3-phase / 60 Hz

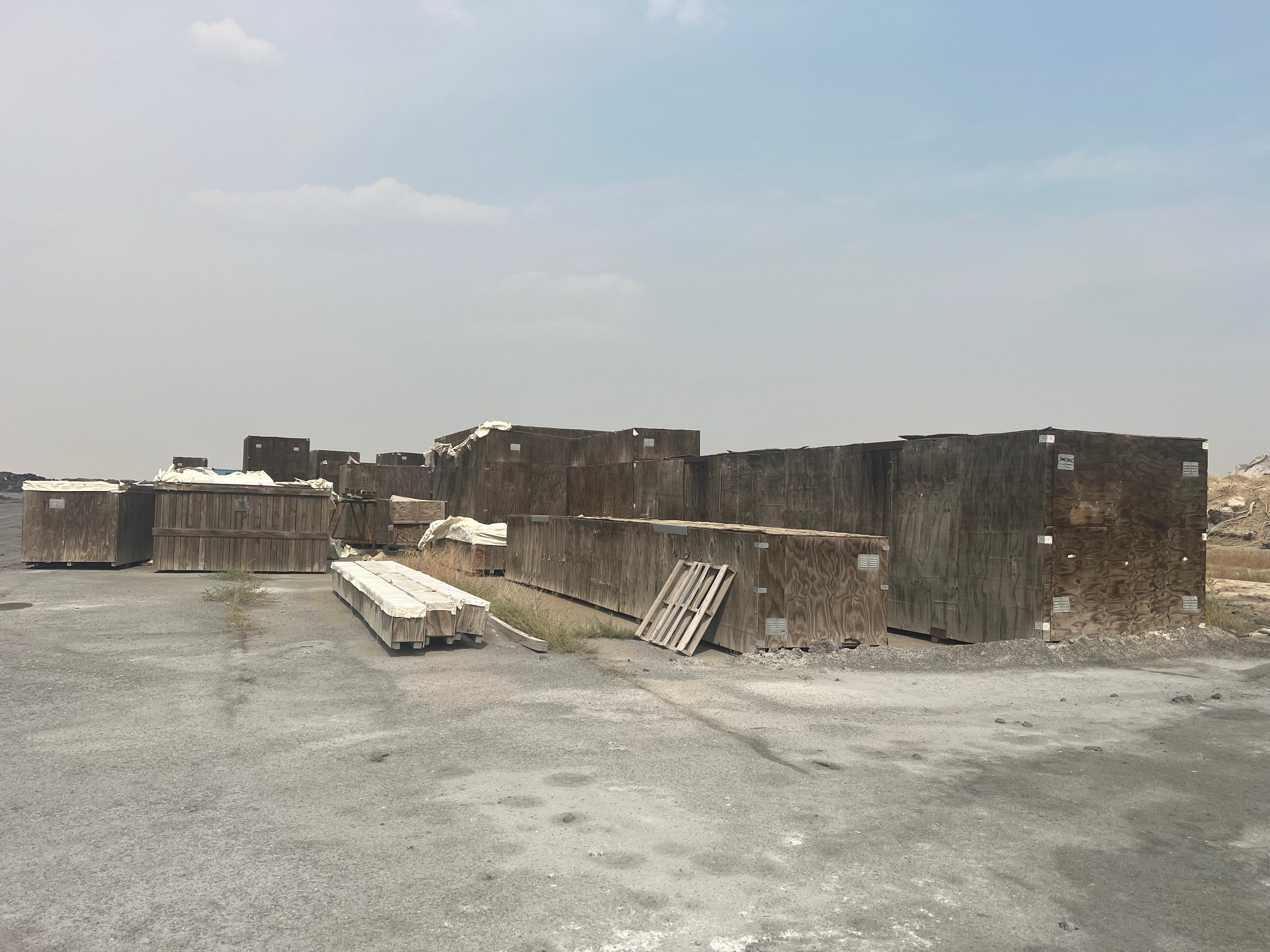

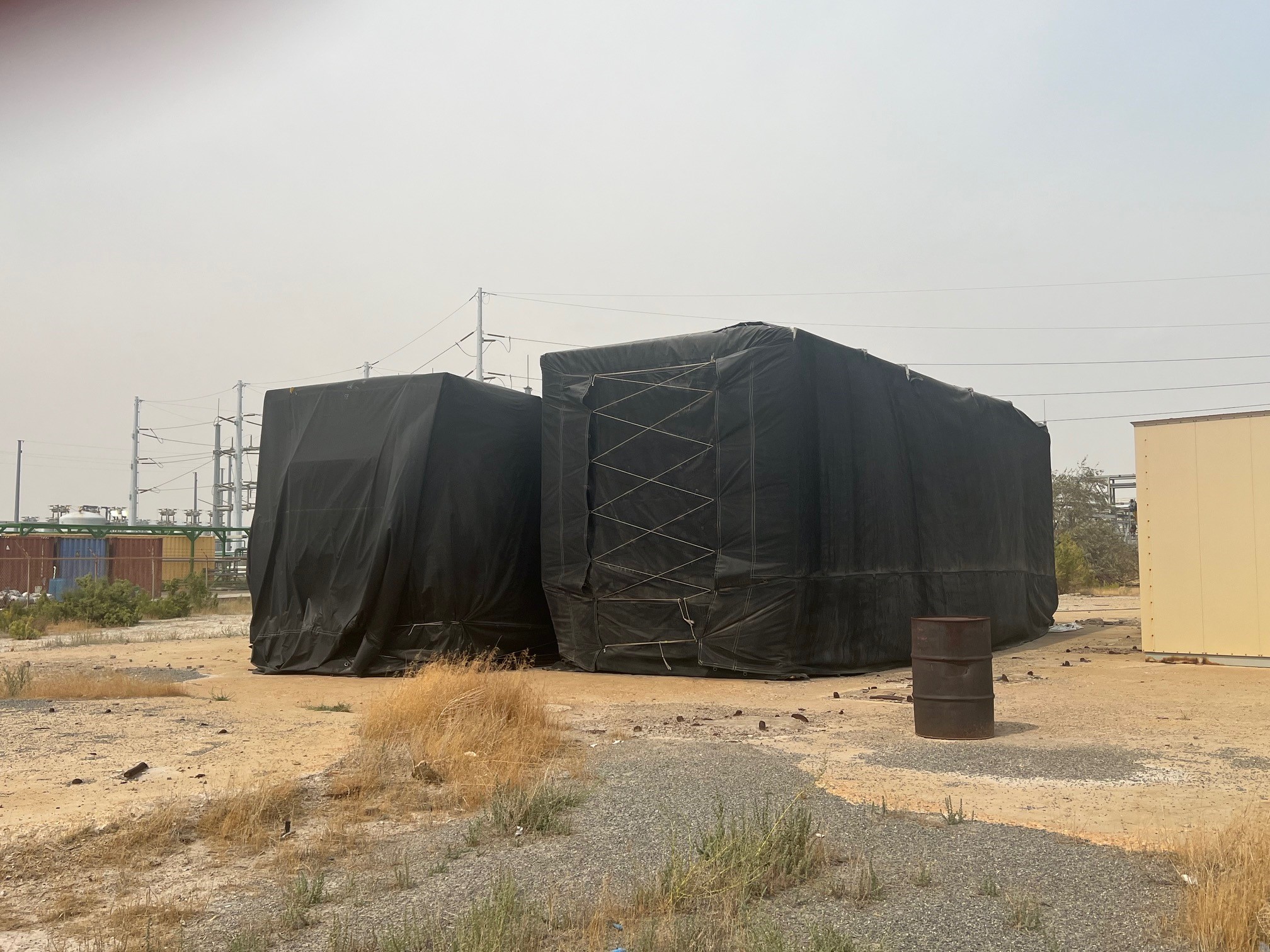

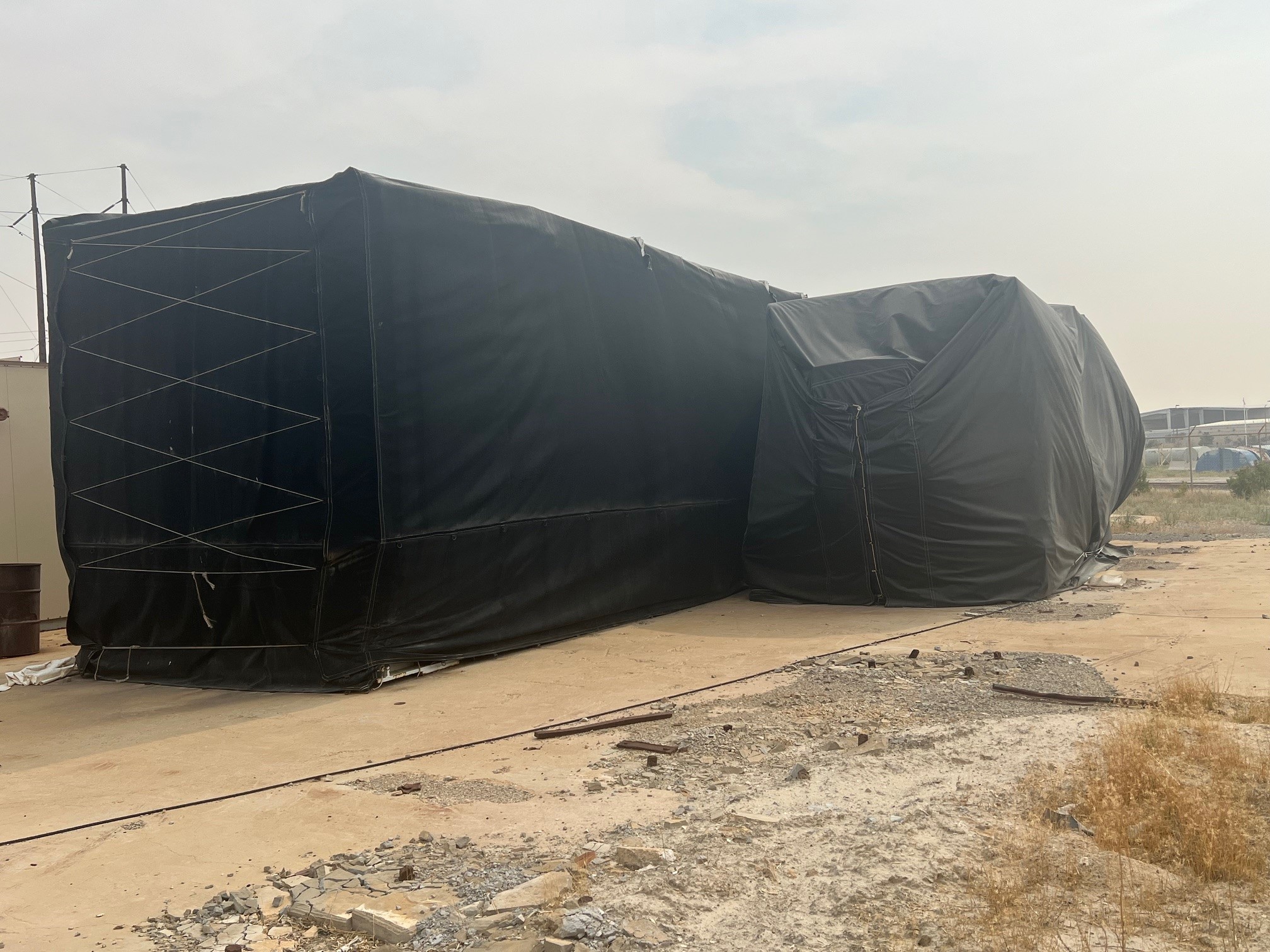

Storage: Stored per GE storage standards

Scope of Supply:

GE Turbine Skid: (39’ L x 12’ W x 13’ H, 200,000 lbs)

Generator Skid: (24’ L x 12’ W x 12’ H, 210,000 lbs)

Inlet System

Exhaust System

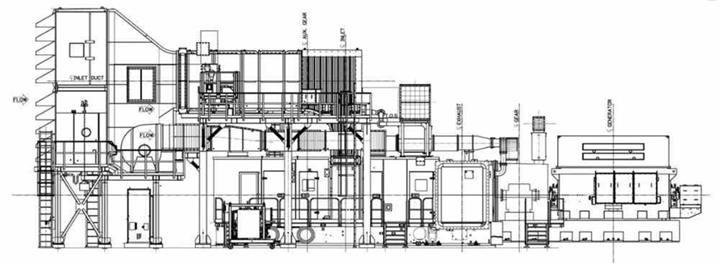

All Manuals & Drawings

Additional Benefits:

High Availability & Reliability: Over 350 units sold worldwide with an average fleet availability of 97.56% and reliability of 98.90%.

Enhanced Fuel Flexibility: No impact on combustor’s operability or integrity.

Compact Design: Single lift basement engine and auxiliaries for faster installation.

Long-Term Performance: First commercial unit exceeded 300,000 operating hours.

Pricing:

Replacement Value Today: $42 Million USD

Price Offer: $21 Million USD
