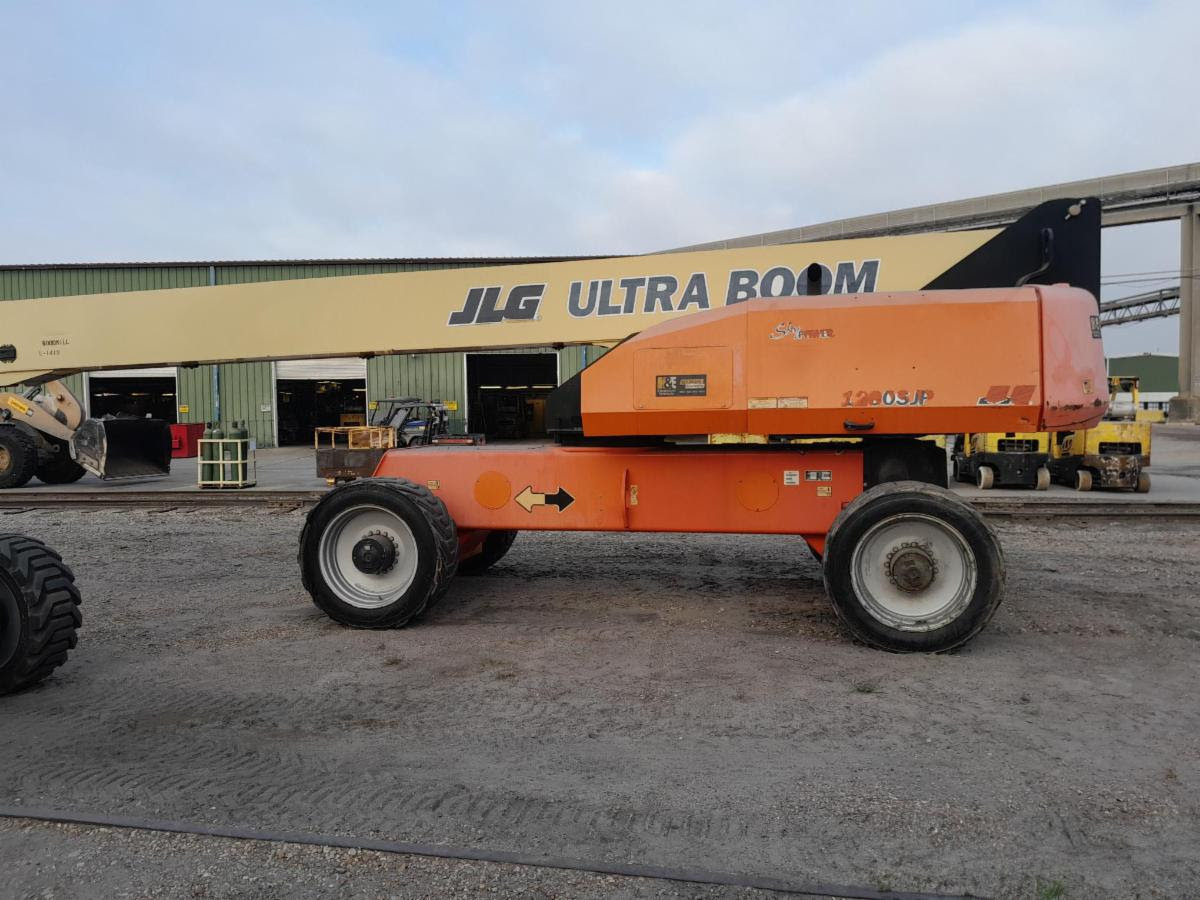

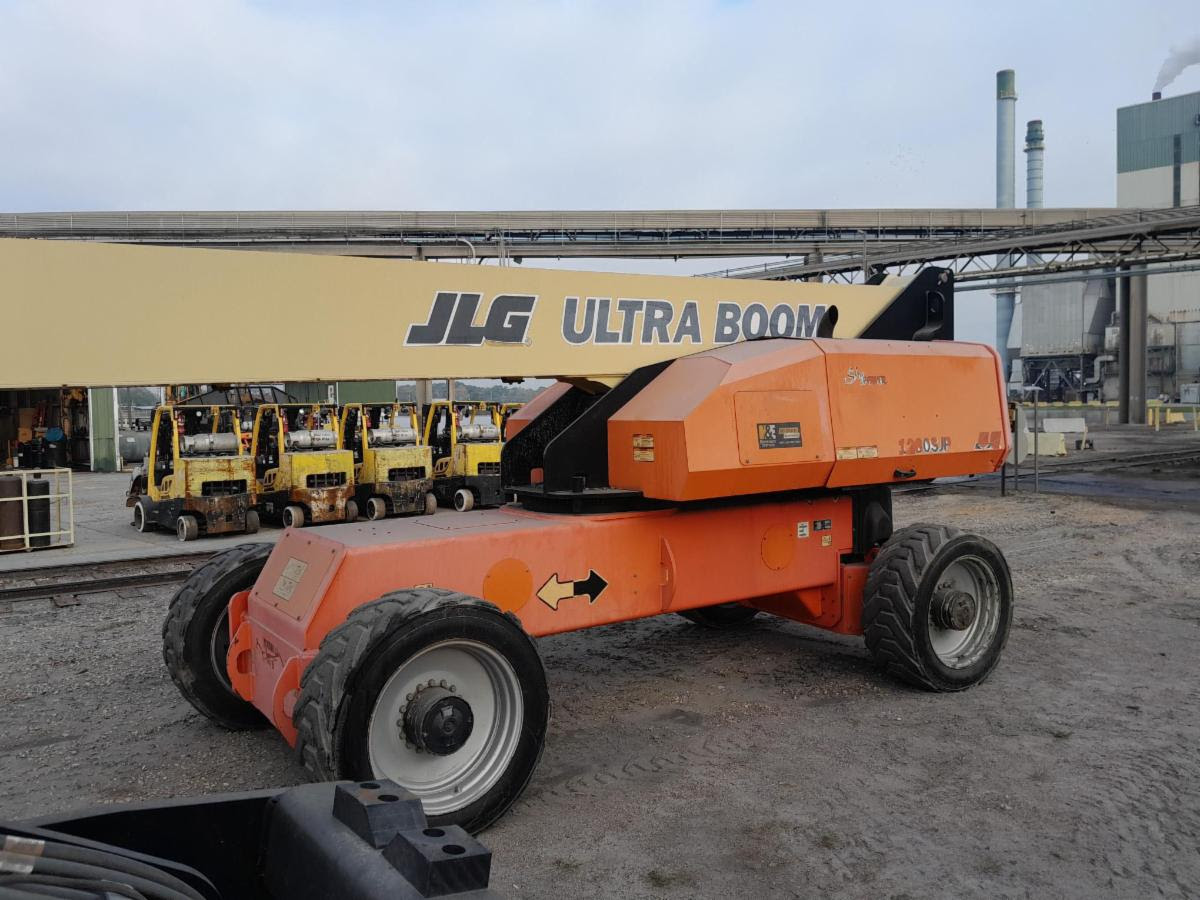

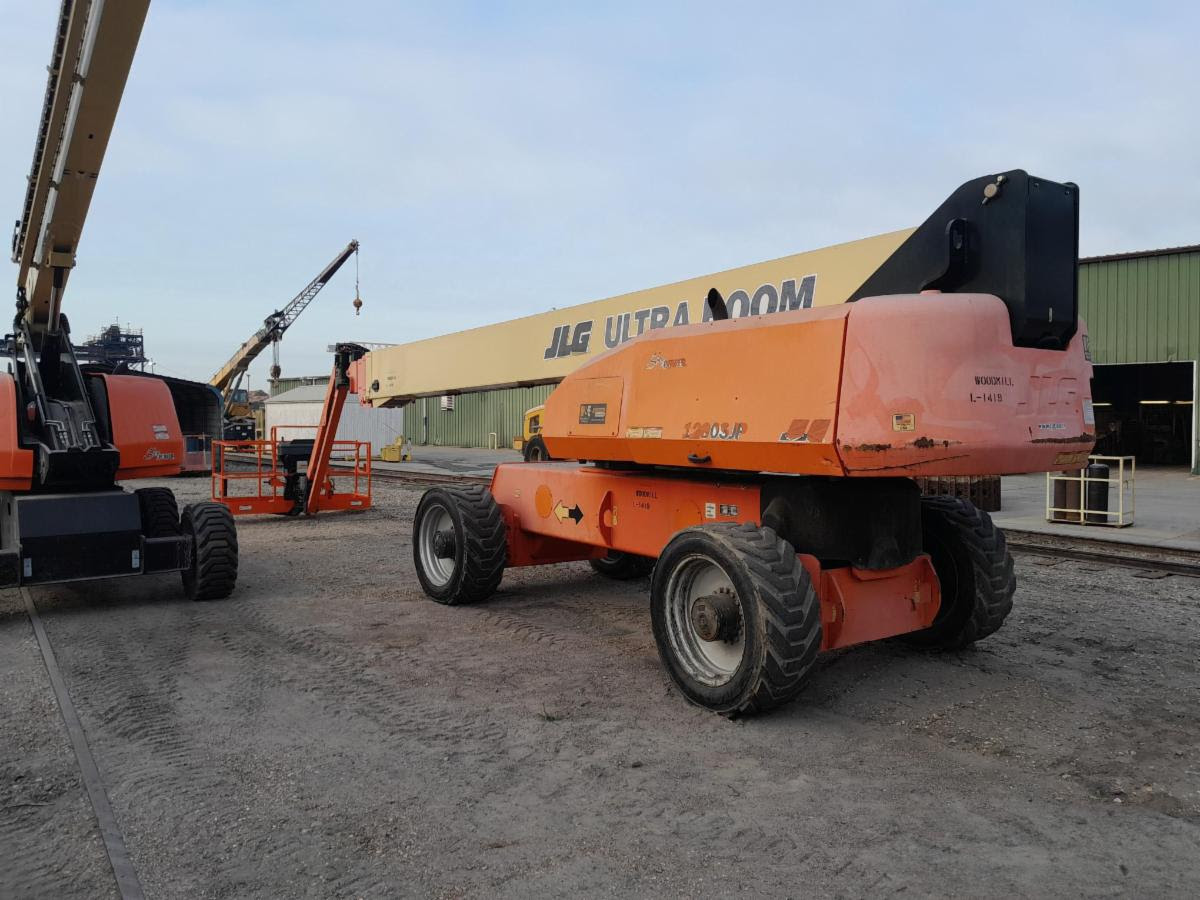

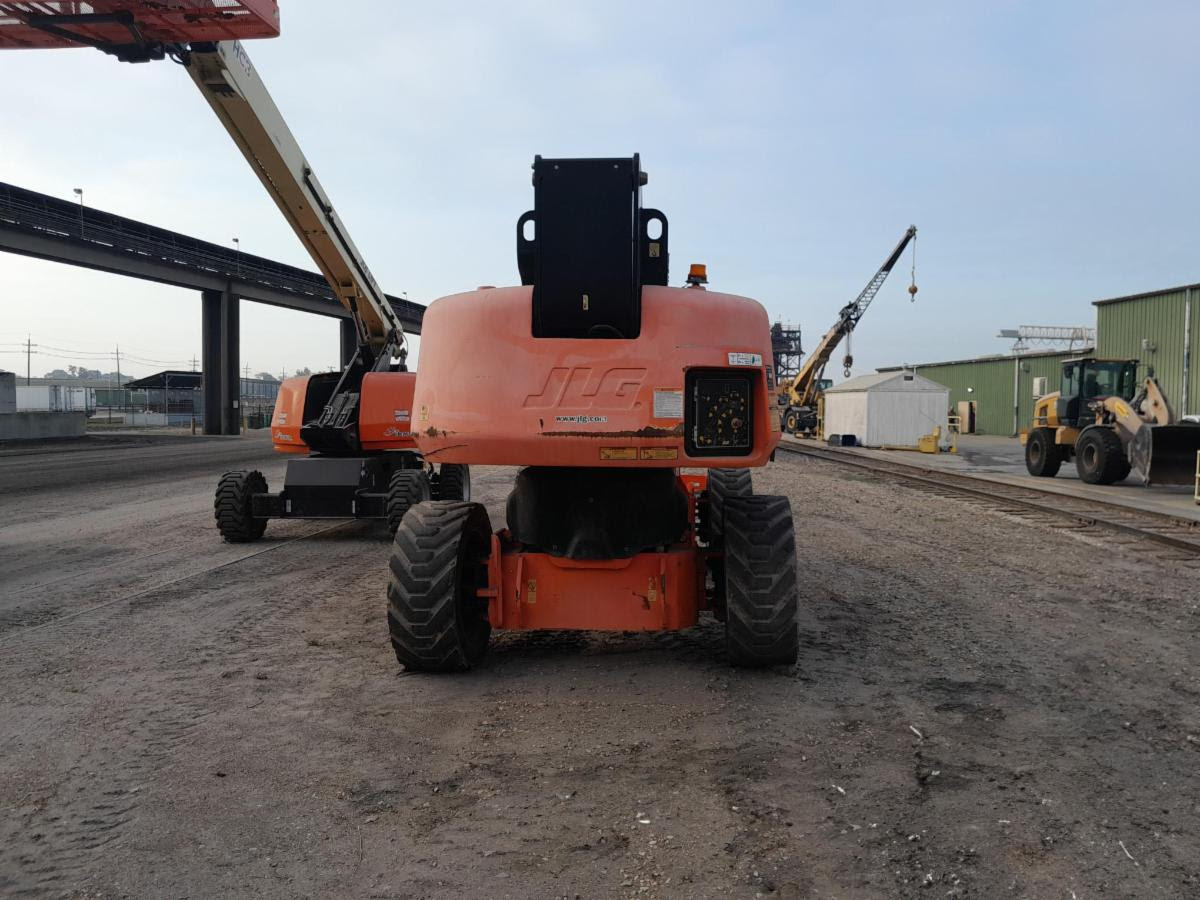

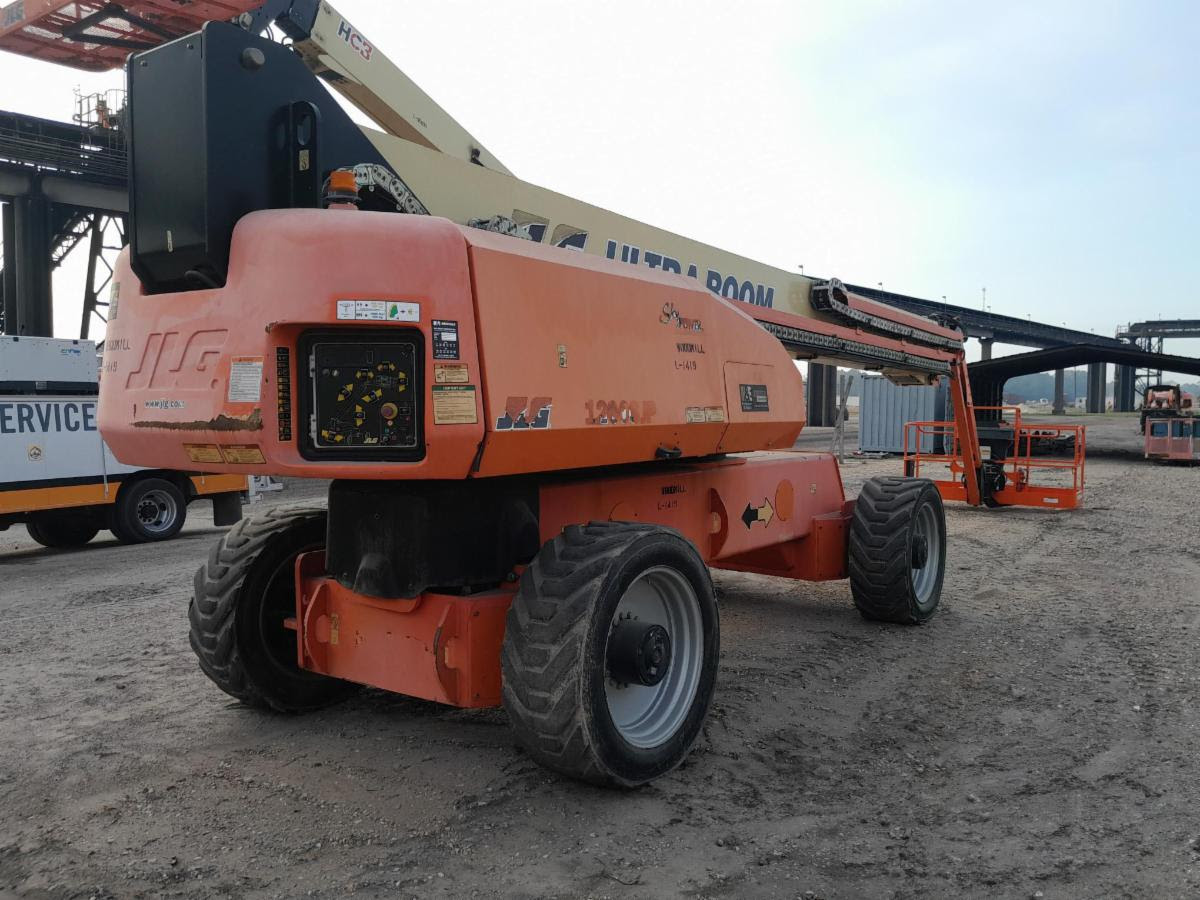

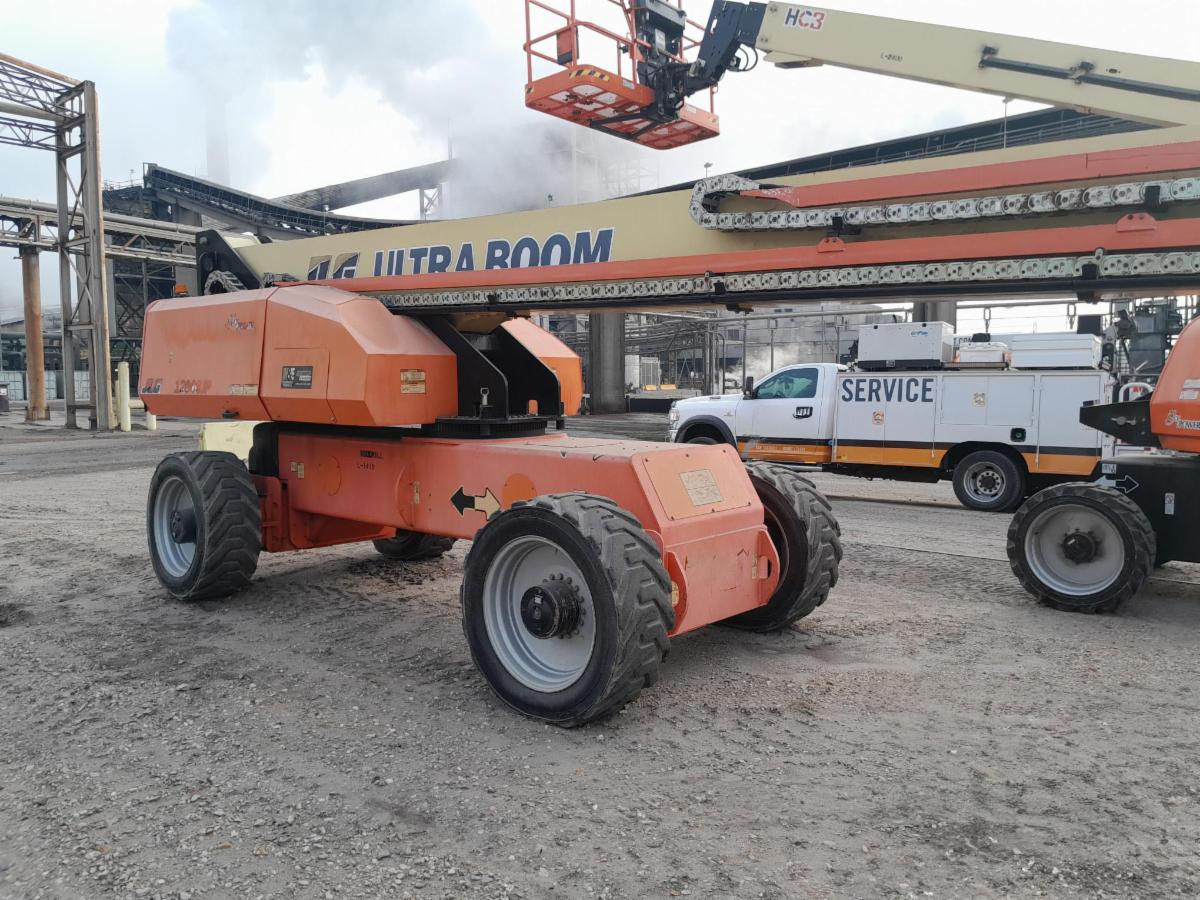

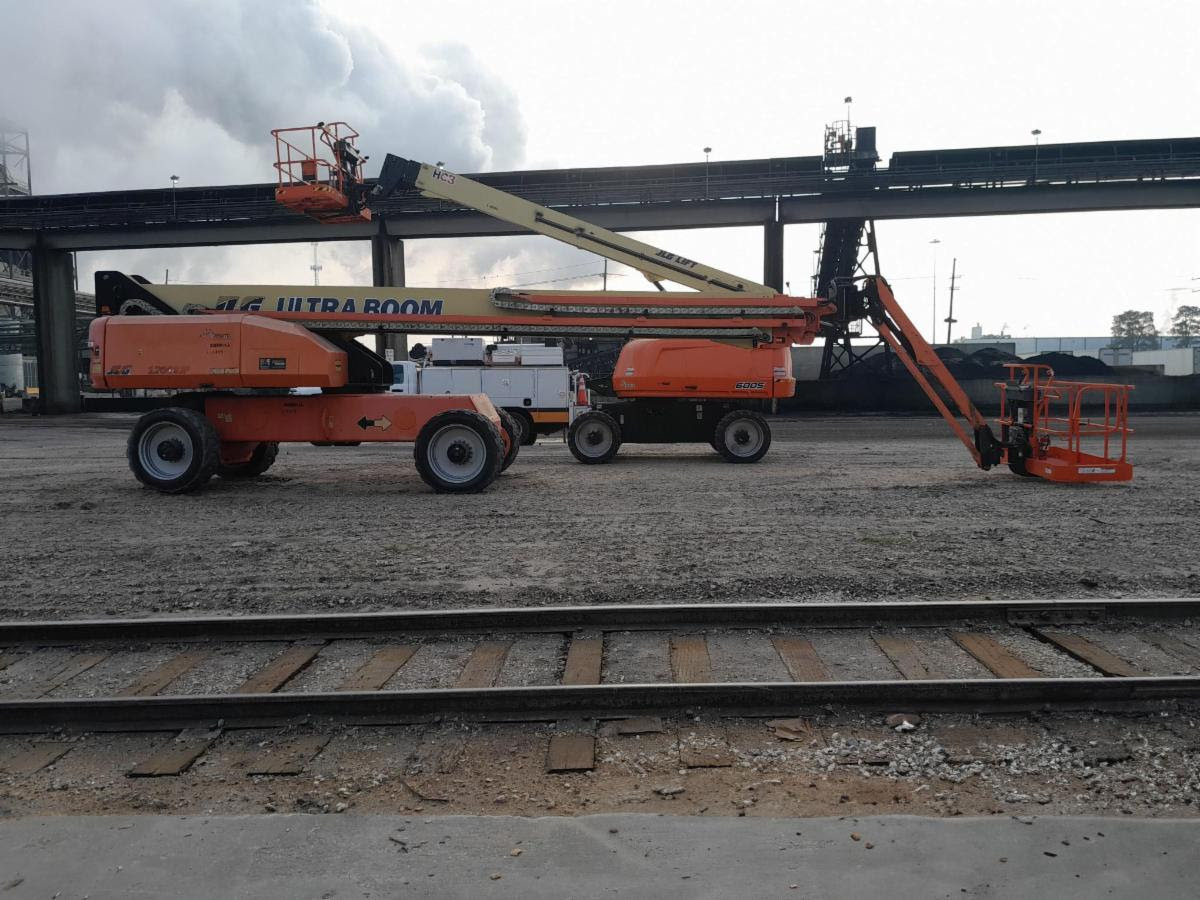

2015 JLG 1200SJP Telescopic Boom Lift



Max Platform Height: 120 ft (36.58 m) – Soar over 12 stories!



Max Horizontal Outreach: 75 ft (22.86 m) – Perfect for large job sites.



Platform Capacity: 1,000 lb (454 kg) restricted / 500 lb (227 kg) unrestricted.



Platform Dimensions: 8 ft x 3 ft (2.44 m x 0.91 m) – Spacious for workers & tools.



Power Source: Deutz TCD2.9L4 Tier 4 Final Diesel Engine (74.2 hp) – Fuel-efficient & low emissions.



Drive: 4WD with oscillating axle – Tackle rough terrain with 45% gradeability.



Speed: 3.25 mph (5.2 km/h) – Fast, safe maneuvering.



Swing: 360° continuous – Full rotation for ultimate flexibility.



JibPLUS: Side-swing jib for precise positioning.



Dimensions (Stowed):



Length: 44 ft 10 in (13.67 m)



Width: 8 ft 2 in (2.49 m) / 12 ft 6 in (3.81 m) extended



Height: 10 ft (3.05 m)



Weight: 40,900 lb (18,552 kg) – Check transport permits.



Ground Bearing Pressure: 99 psi (6.93 kg/cm²) – Ensure terrain compatibility.



Turning Radius: 19 ft 4 in (5.89 m) extended / 22 ft 6 in (6.86 m) retracted.



Features: SkyPower® generator, LED motion/amber beacon, ClearSky Smart Fleet connectivity.



Tires 70%



Hours 3,525



EXW: MI USA



$69,850

---

---

---
