The Mars 100 offered last week are now sold out.



There are two available, offered as refurbished zero hours.



2 x SOLAR MARS 100 - SOLONOX VERSION 15000

July, 2025



1. Scope of the technical proposal.



Supply Two Solar Brand Gas Turbines:



02 x Gas Turbine model MARS 100 SoloNOx - Version 15000SAN, 14800 HP. These are used equipment, zero hours - refurbished, manufactured in 2011.



MAIN PLATES, ONE OF THEM



The technical characteristics of the turbines are shown in the attached table.



YEAR



MAKE



MODEL



Frequency



Condition



Power HP



MW ISO



Quantity Available



2011



Solar



Mars 100



SoLoNOx



60 Hz



Zero Hours - Refurbished



14800



11.3



2



Manufacturer: Solar Turbines. Manufacture year: 2011.



Gas turbine model: Mars 100-Version 15000SAN. SoloNOx Gas turbine power: 14800 HP.



Gas turbine power: 11.3 MW.



Gas turbine speed RPM: NGP 11168 NPT 9500 rpm.



Fuel Type: Natural Gas Maximum Supply Pressure 500 psig (3450 kPag). Frequency: 60Hz



SCOPE of SUPPLY: Complete Ga Turbine including:

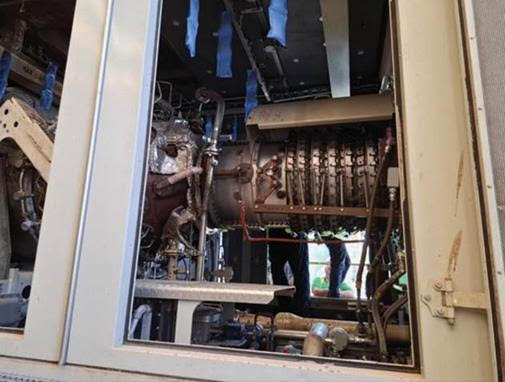

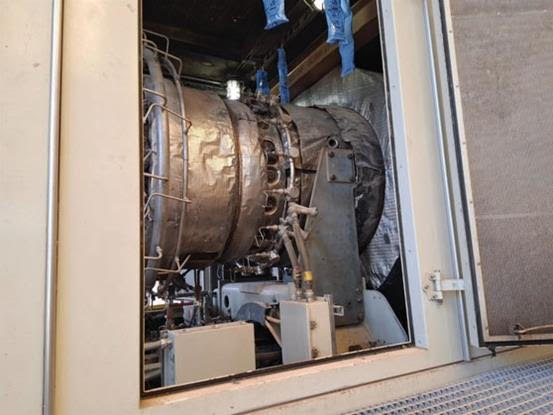

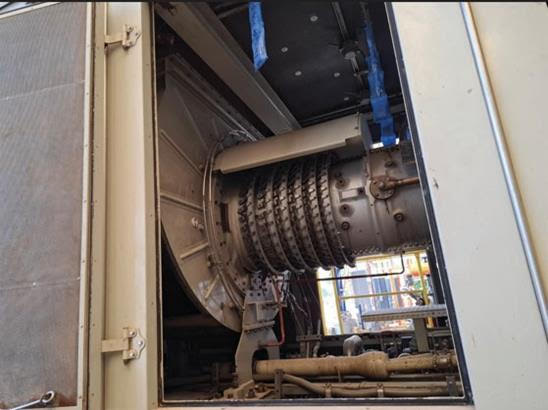

./ Gas turbine (axial compressor, combustion chamber, and power turbine).



./ Intake volute, inlet silencers



./ Exhaust volute, exhaust silencers



./ lubricating oil system, oil tank, heater, main and auxiliary oil pumps (main mechanical, AC electric pre/post, DC electric backup), filter, 120V DC starter, pressure and temperature regulator, oil mist separator, ventilation flame arrester



./ Starter motor



./ Oil pressure regulation system



./ Thermostat valve



./ Duplex filter holder with its 6-way valve



./ CO2 piping system, fire detection, and fire extinguishing system CO2



./ Instrumentation associated with the turbine (pressure transmitters, vibration modules)



./ Gas valves (primary, secondary, and PEC)



./ IGV electro-actuator



./ Oil supply and drainage hoses and pipes

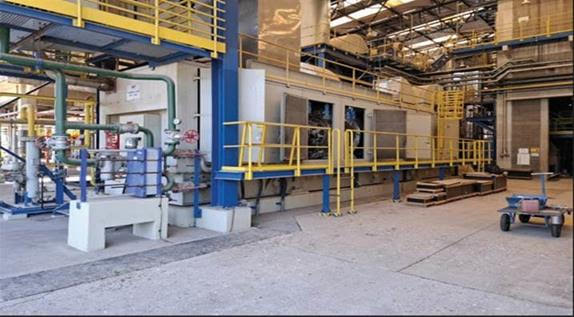

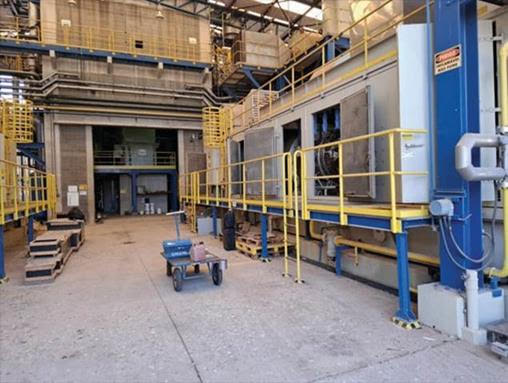

./ Enclosure with its panels and doors (enclosure)

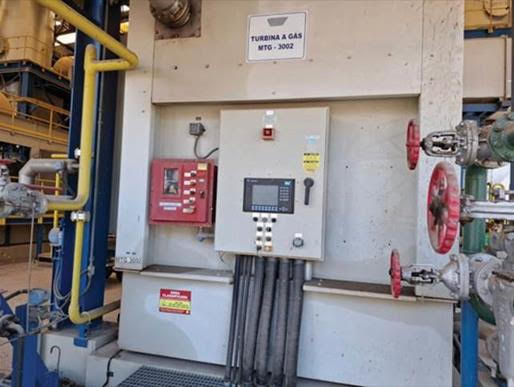

./ local control panel with its PlC



./ Cabin air intake duct with its fan, ventilation system



./ Cabin air outlet ducts, ventilation system



./ Filter house



./ Damper with shutters for cabin insulation (cabin intake and discharge)



./ Main oil tank



./ Gas, flame, and heat detectors



./ Thermocouples



./ Skid internal pipes.



./ Injectors



./ Bleed valve



./ Air and gas manifolds



./ Electric Generator



Additional Scope of Supply:



- Zero hours, refurbished.



- Type of fuel used: Natural gas.



- Type of compatible fuel: No.



- Permanent suspension of activity: March/2023.



- Reason for interruption: End of subsidy for the acquisition of fuel (natural gas).



2. Prices



- Each Solar Gas Turbine included an Electric Generator: US$6,7 50,000



- The total price for two Solar Gas Turbines is US$13 ,500,000



The Contract Price will be payable solely in US Dollars, the official currency of the United States of America.



3. Terms and conditions of payment



The following payment method is established.



A. A down payment fee of 10% payable into escrow before the inspection visit with the signed Sale Contract, is required and serves as a security deposit, which is refundable if not as presented.



B. A deposit of 70 paid with the official purchase order (P/O) five working days after the inspection visit.



C. The balance is 20% before shipping.



4. Delivery



Three months after receiving the purchase order. Solar Turbines: Disassembled, CIF - ASWP.



Offer Validity: This quotation is valid for 30 days. This offer does not include taxes. No warranty.



- Note:



Equipment can be sold separately plus 5%

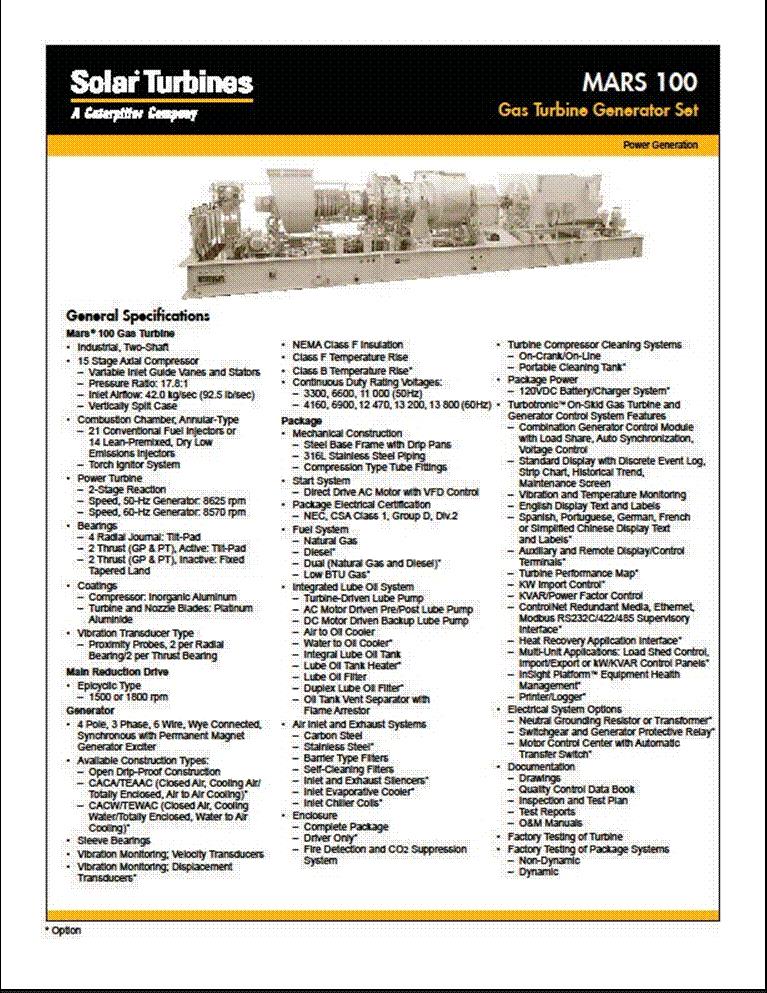

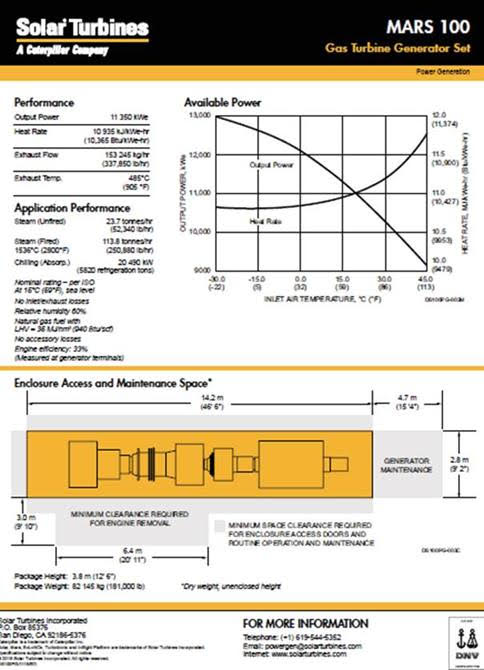

- Attachment: Solar Mars 100 Brochure

---

---

---
