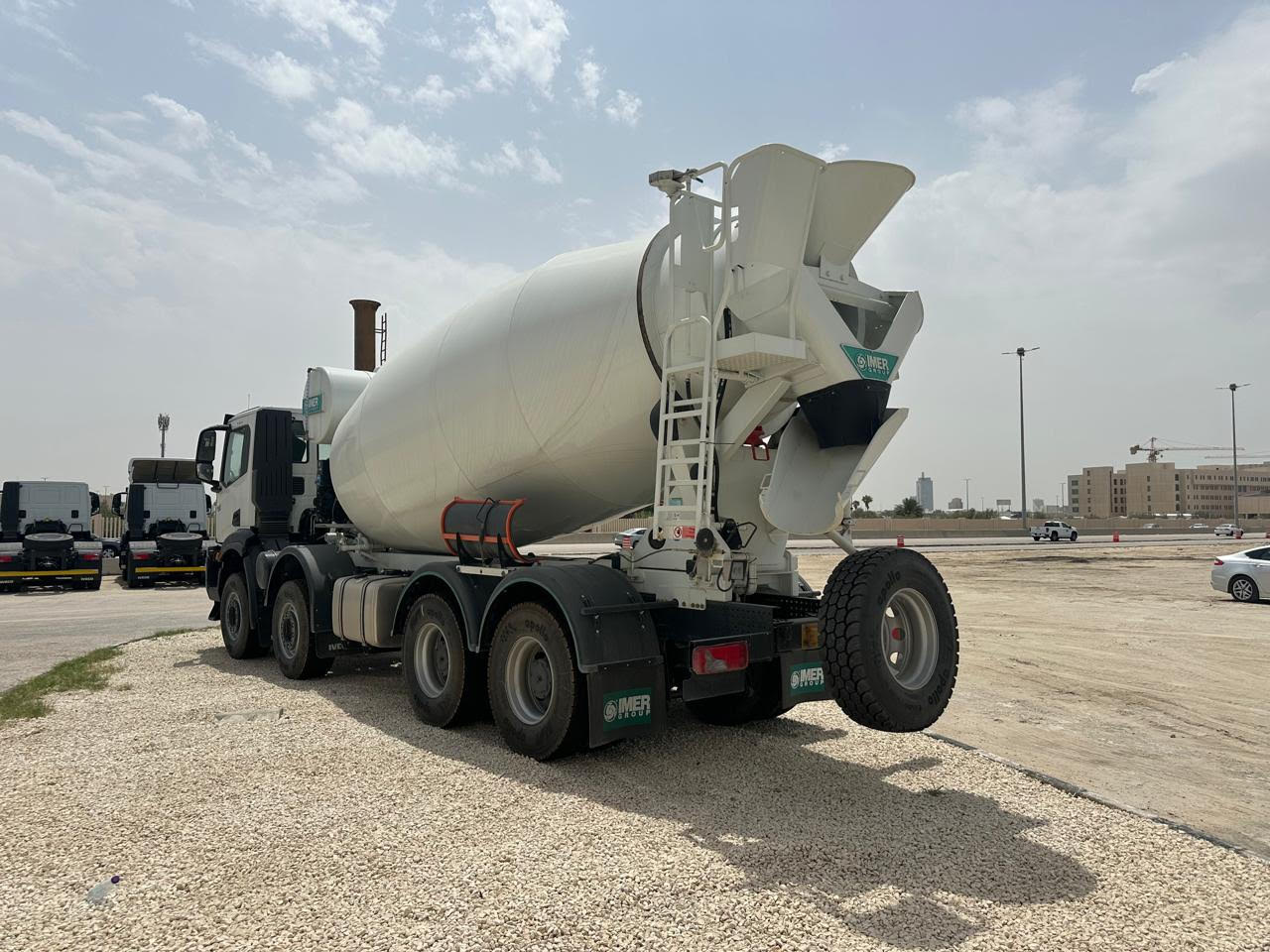

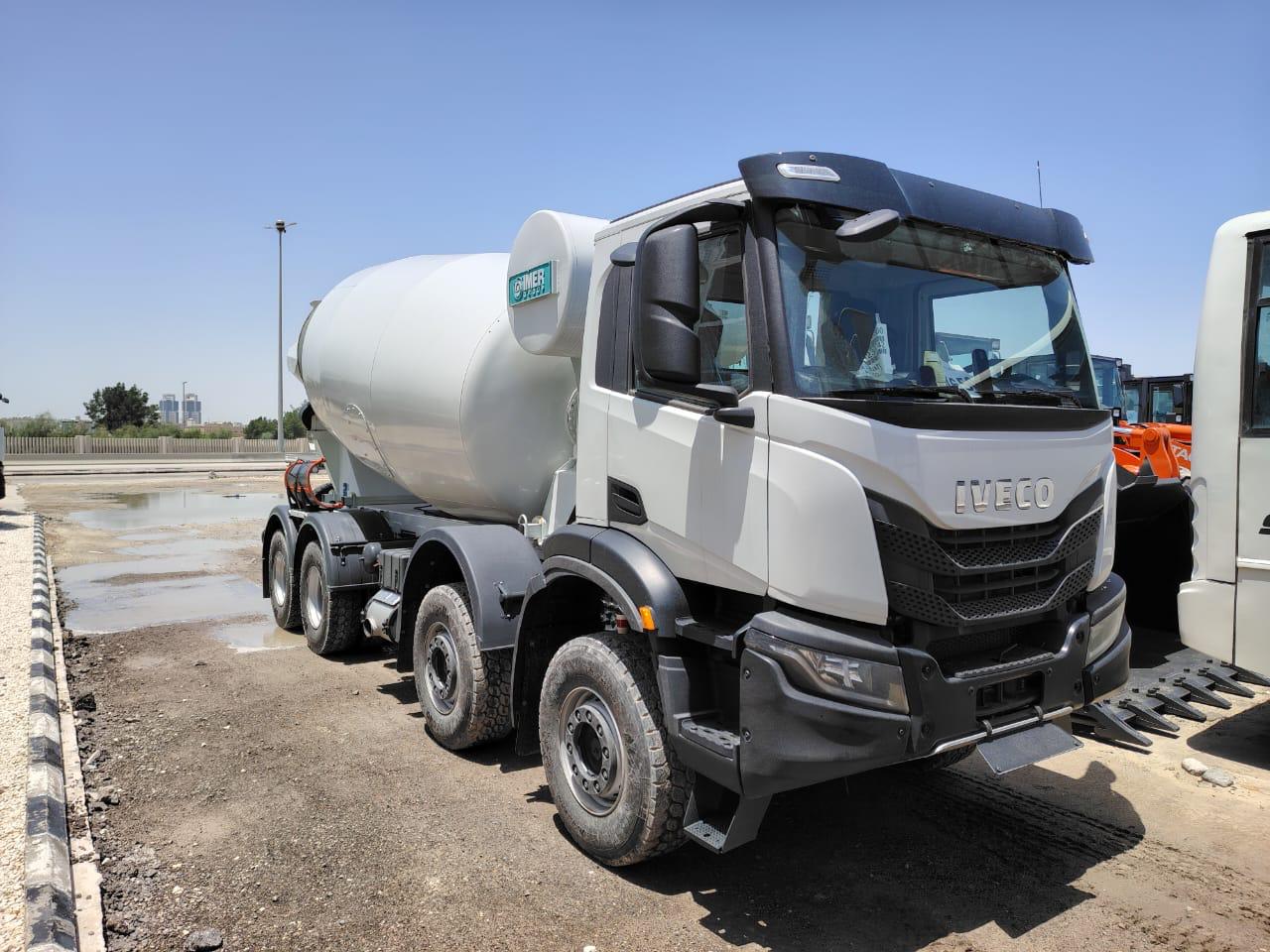

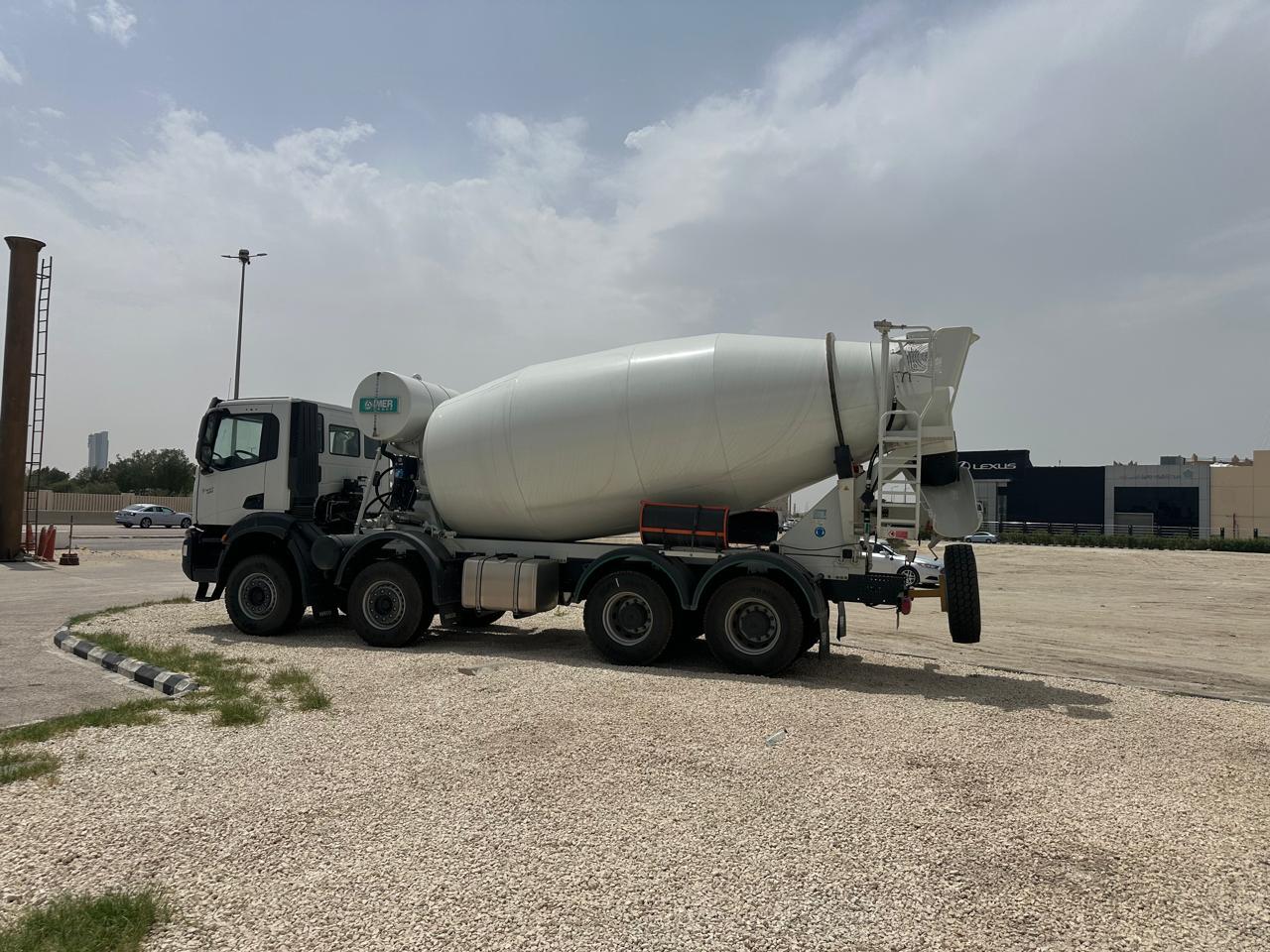

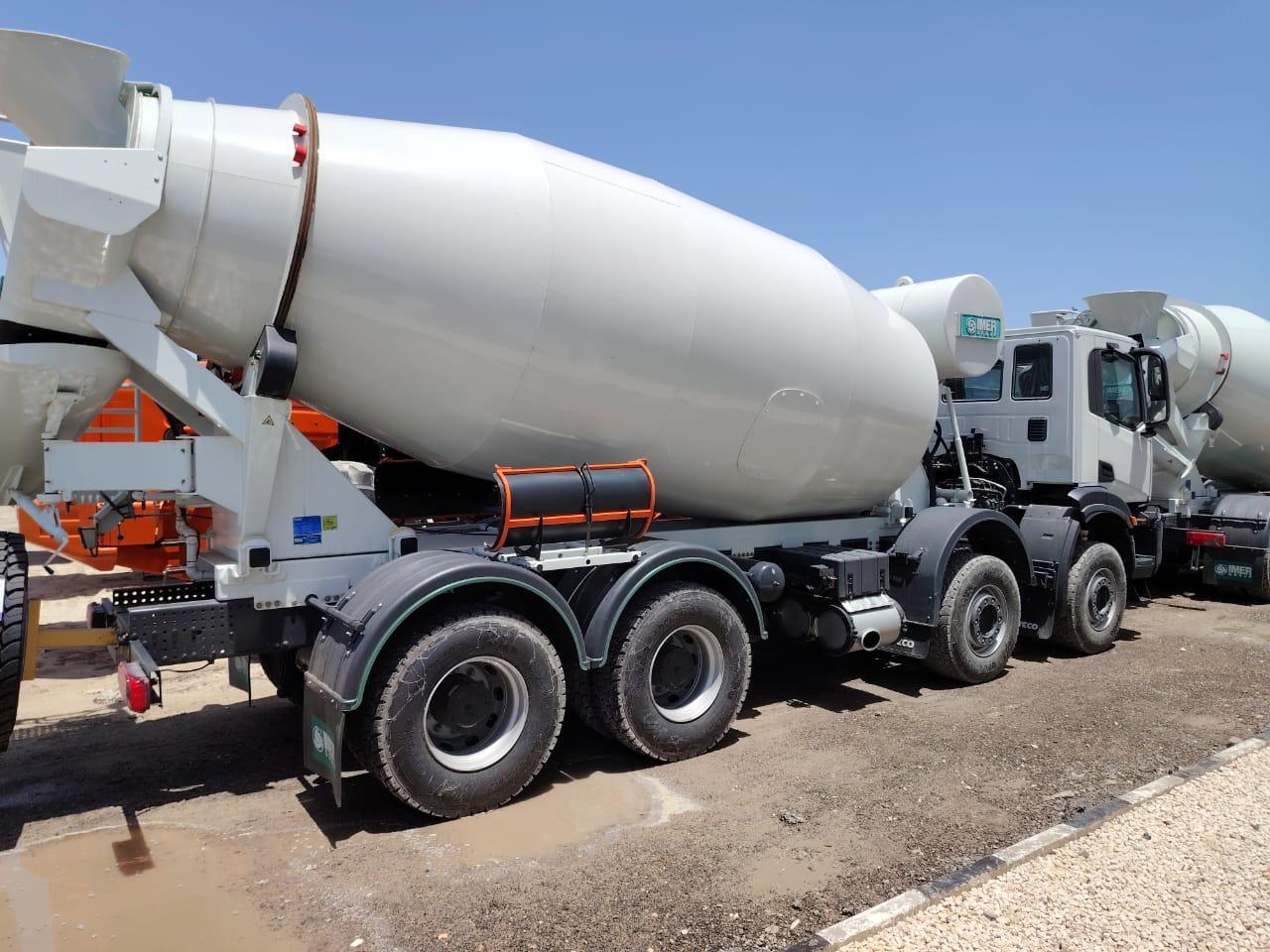

For sale new brand 8x4 Mixers



For sale new brand

Quantity : 29 units 8x4 Mixers



(T-way mounted with Imer 12 CBM Mixers )

Model : 2023

Brand : Iveco



Model year : 2023 but unused.

Engine : Iveco Cursor 13 F3HGE611 - 12.9 Liter displacement –Diesel

6 cylinders in line - Turbocharged & inter Cooling - Common

Rail High Pressure.

Max Power : 430 HP (316 kW) @1,900 rpm.

Max Torque : 2,100 Nm @ 900 rpm.

Emission Standerd : E3.

Gearbox : ZF 16TX 2240 TO (HI-TRONIX).

No. of shifts : 16 forward + 2 reverses.

Clutch : Single dry plate (17’’) 430 mm.

Wheelbase : 5,020 mm.

Front Axles : (9 – 9 – 26) Tons.

Rear Axle : 26 Ton.

Rear axle type : Hub Reduction-TP

GVW : 32-45 Ton.

Front Suspension : Reinforced Parabolic.

Rear Suspension : Mechanical (Leaf).

Axles : Front & Rear DRUM EBS+BAS

Tyers Size : (16+1) 385/65-315R22.5

Fuel tank : 390 Liters.

Color : 50105 - White IC 194.

Cab Type : Active Day.



LT 12XL.7 H with nominal capcity 12 m³ (8x4)

?

Nominal capacity: 12 m³

?

Capacity (m³): 19,93 m³

?

Capacity in water: 13,04 m³

?

Drum speed: 0 -14 rpm

?

Filling capacity: 15"

?

Unloading capacity: 15" - 40" (slump)

?

Vehicle: 8x4

?

Rollers: nr.2 x 280 mm

?

Drum walls made in 30MnB5 anti-wear resistant steel - HB 200/220 (4mm thickness)

?

Mixing blades made in 30MnB5 anti-wear resistant steel - HB 200/220 (4mm thickness)

?

Two-stage planetary gearbox.

?

Hydraulic transmission with variable displacement delivery pump

?

Oil cooler with incorporated tank and filter, thermostat with electric fan

?

Manual controls (with 2 button EDC GAS+GAS-) for "H" version

?

650l water tank (315l for LT3.7)

?

Water meter 0-500l with zero setting

?

Water pump driven by the auxiliary power take-off on the gearbox

?

Swivelling discharge chute, lifted by mechanical manual jack

?

2 polystone extension chutes (light construction)

?

Anti wear protection sheet on discharge hopper

?

Mechanical drum lock for maintenance

?

Mixer sub-frame in high limited yield steel

?

Structure sandblasted according to SA 2,5 standard, protected with antirust primer



Price : 175.000 euro Cnf middle east

---

---

---
