MTU Units 7 x 2Mw Power Plant . Client needs 15 or more 30 MW minimum of diesel gensets



Offer 30 Mw or 30,000 Kw adding this 14,000 Kw low Hours plus 16,000 Kw Brand new manufactured in Germany- Poland and delivered within 90-120 days new units .



If this Offer is of your interest, please let me know asap to reconfirm prices and deliveries of the new Units .



14 MW MGTU POWER PLANT MTU UNITS



7 X 2,000 KW UNITS



14mW MTU Package



14 mW Diesel Powered Generator Package



(7) 2 mW MTU Generators



(4) Tier 2, 16V4000 MTU



(3) Tier 1, T1637M36 MTU



13,800/7,970 VAC



3 Phase 3 Wire 60 Hz



Short Circuit Rated 18,000 ASYM



GENERATOR



KEY FEATURES



Load Break Fusible



Switches



(7) Switches



15 kV Rated



200 amps



NEMA 1



Stand-alone Switches positioned at Grade on Generator Side



15 KV DISCONNECTS



KEY FEATURES

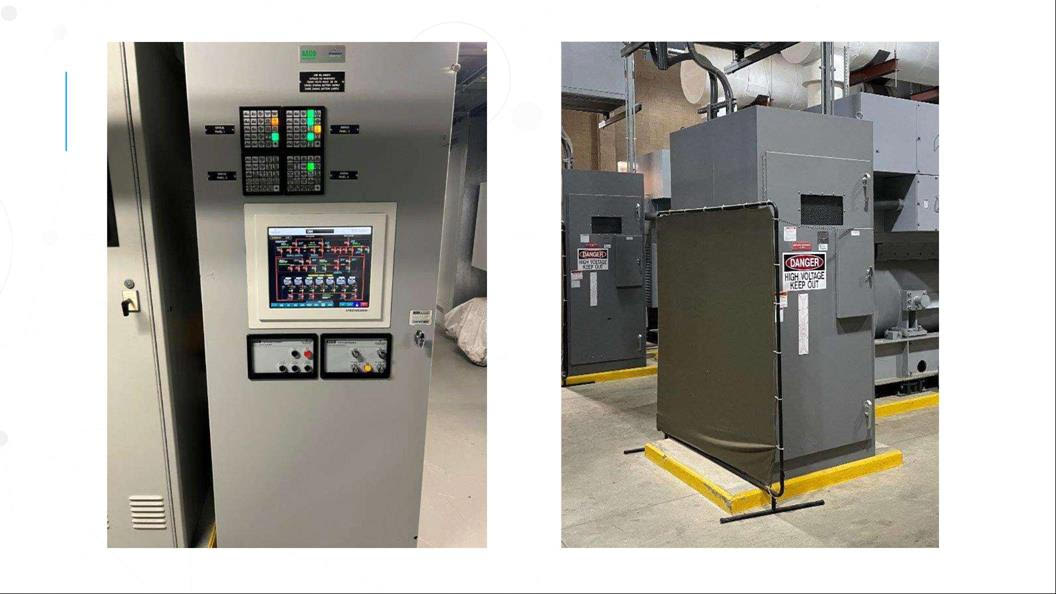

SWITCHGEAR



KEY FEATURES

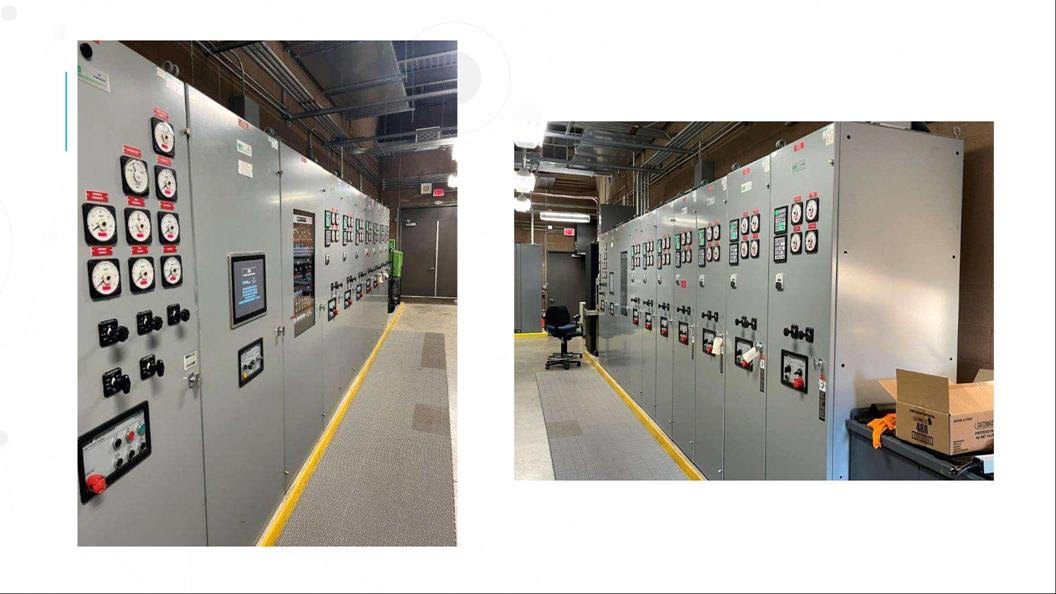

ASCO Paralleling Switchgear



Set up for (7) input Breakers from Generators to Main Buss

(5) Output Breakers

Square D mV Model VR Breakers

1200a, 60 Hz, 500 mVA rated

Each fitted with GE Multilin 750 Feeder Management Relay and integrated into the ASCO System

DC Control, trip & charge

Each Generator is connected to an ASCO Synchpower Controller

Each Generator can be controlled in manual or automatic operation

The Generator control is equipped with remoted operating panels allowing:

Syncing

Load Sharing

Load Shedding



KEY FEATURES

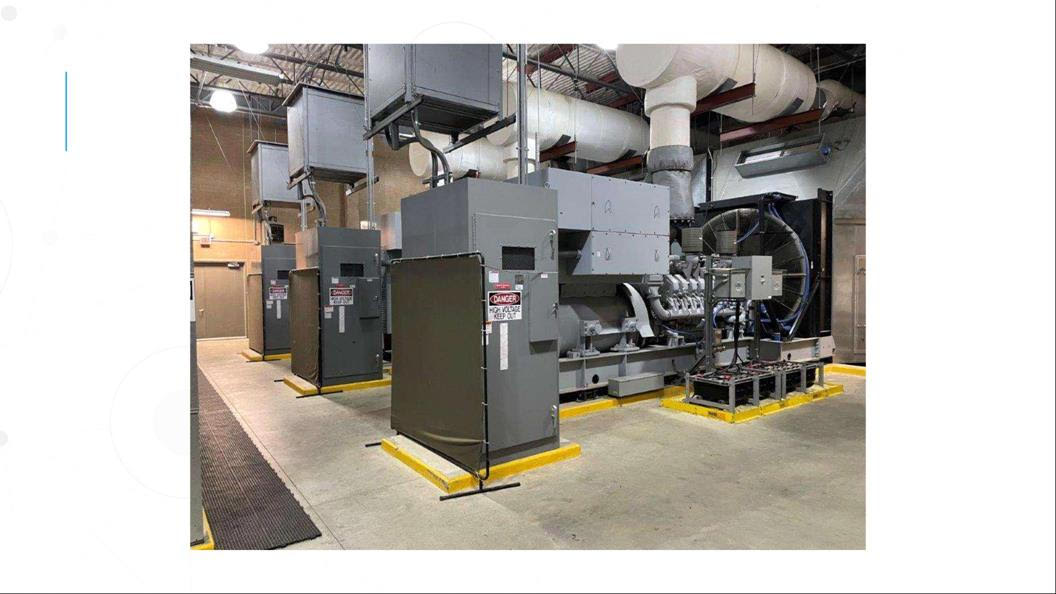

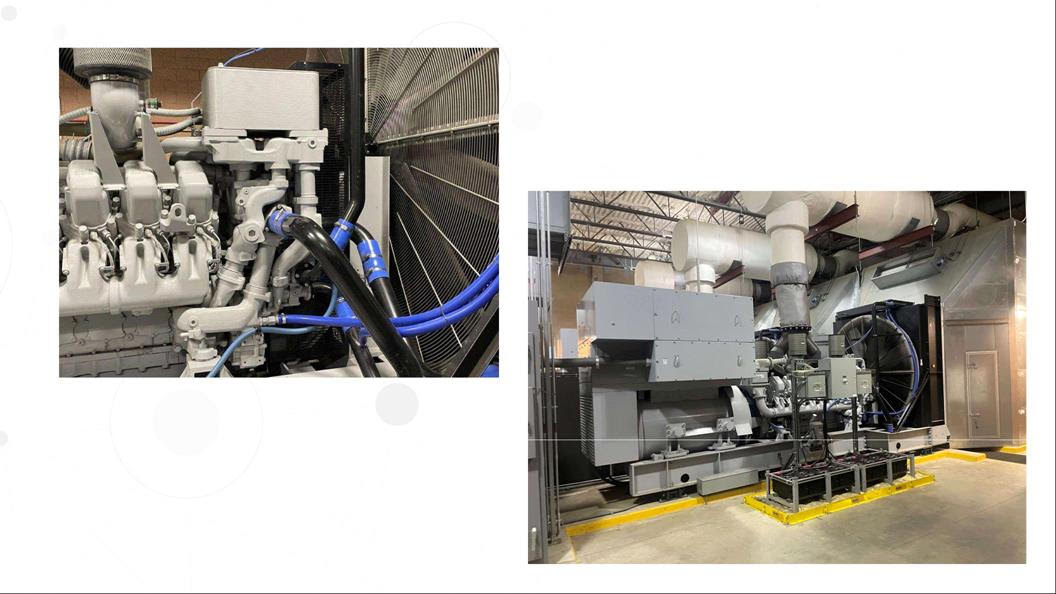

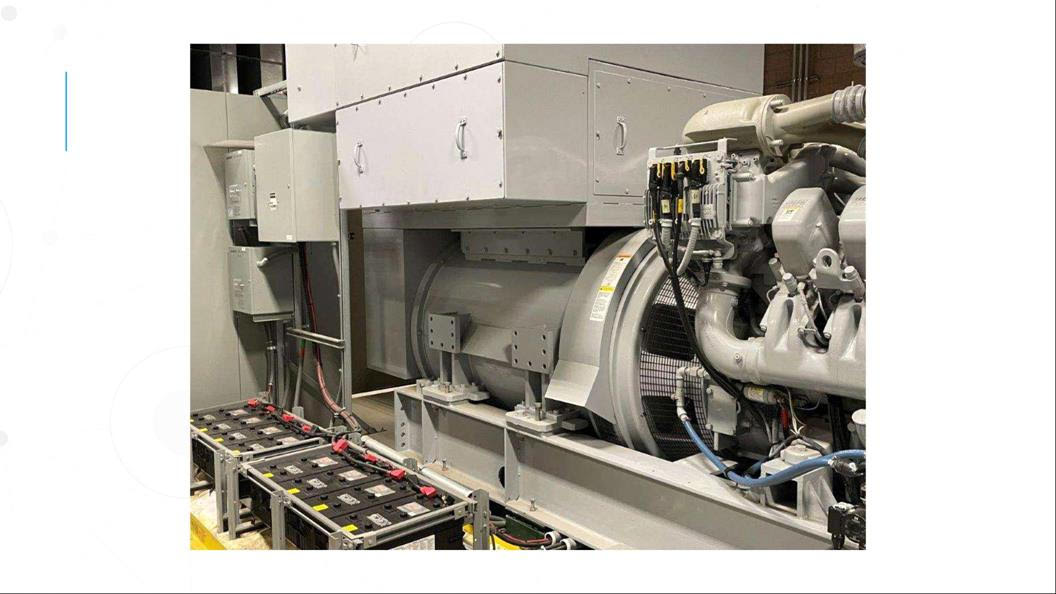

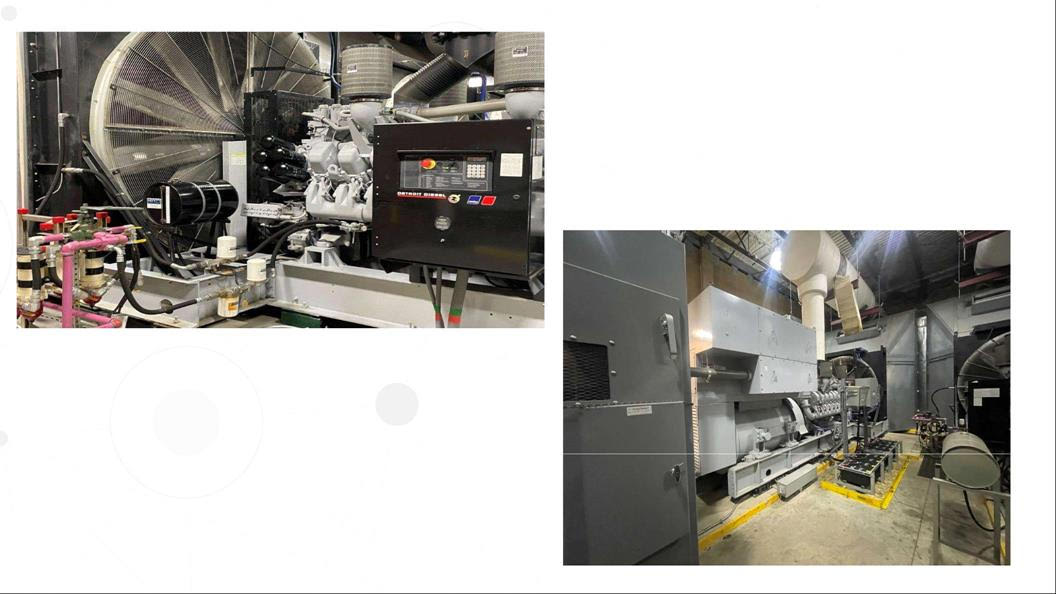

(7) 2 mW Tier 1 & 2 Diesel Generators Rated at 13.8 kV with paralleling switchgear



Tier 1 Engine Serial # s: 527-200-2694, 527-200-2708 & 527-200-2650



All less than 1800 hours



Tier 2 Engine Serial # s: 527-104-245, 527-104-246, 527-104-250 & 527-104-253



All less than 1000 hours



All 7 units parallel together using ASCO switchgear



15 kV Load Break Fused Disconnects for each Generator Located in Houston, Texas.



Price for all 7 generators and switchgear on request with named end user country
