DOME HOUSE



1：Material structure of Dome house

A: Material

Modified graphene is the main material (thickness 180mm) The detailed description is in PDF.

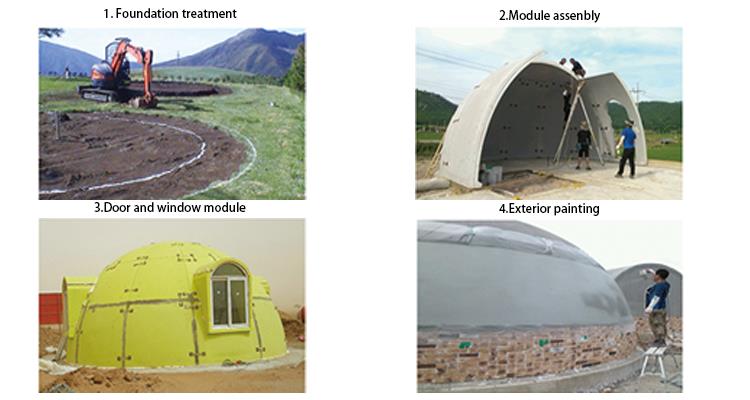

B: The modules of the dome house are all produced in the factory and assembled directly on site as shown below.

Doors and Windows need to be individually customized for purchase



Note​​​

The assembly of the module is only the first step.

First of all, at the installation site, we need to build a circular fixed foundation or a steel platform (can be moved).



Then assemble the module. After forming, strengthen the joint and do waterproof treatment.



Finally, you need to install the hanging net and apply mortar on the inner and outer walls of the house (requires 2 layers)



After the mortar is dried, Dome house is molded.



This construction cycle takes 7 days at the earliest with 4 workers.



Interior finish



The molded Dome house can be used to decorate the house like a traditional building, but be aware that the wall cannot be used to hang heavy objects.



​Structural strength and performance



​A：Insulation performance



Highly adiabatic - Conditions for adiabatic enclosure: U-value <0.15 W / (m²K), (depending on the situation <0,10 W / (m²K))

High air tightness - Air tightness: n50 <0.6h-1 under 50 Pa differential pressure

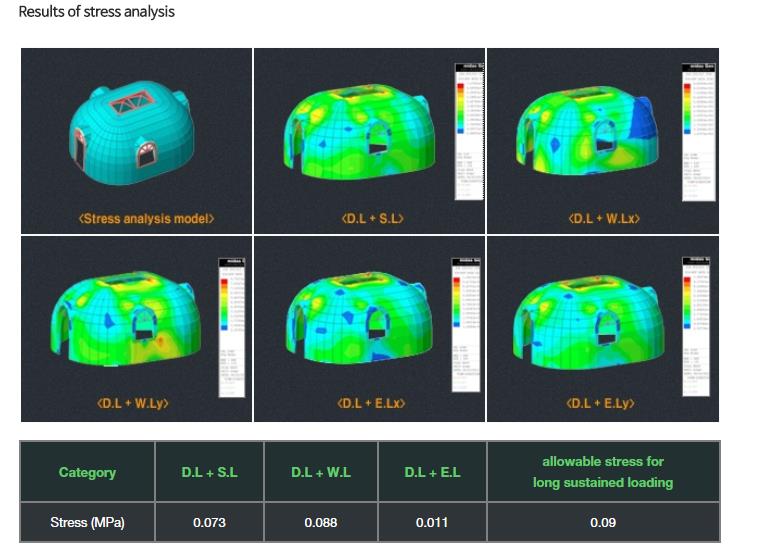

B: Structural strength



Dead load



Dead load : 140N/㎡



Construction load : 500N/㎡



Snow load



Based on 2 meters of snowfall



No snow removed by wind; considering the snow slides due to the slope



Wind load



Basic wind speed V=40m/sec

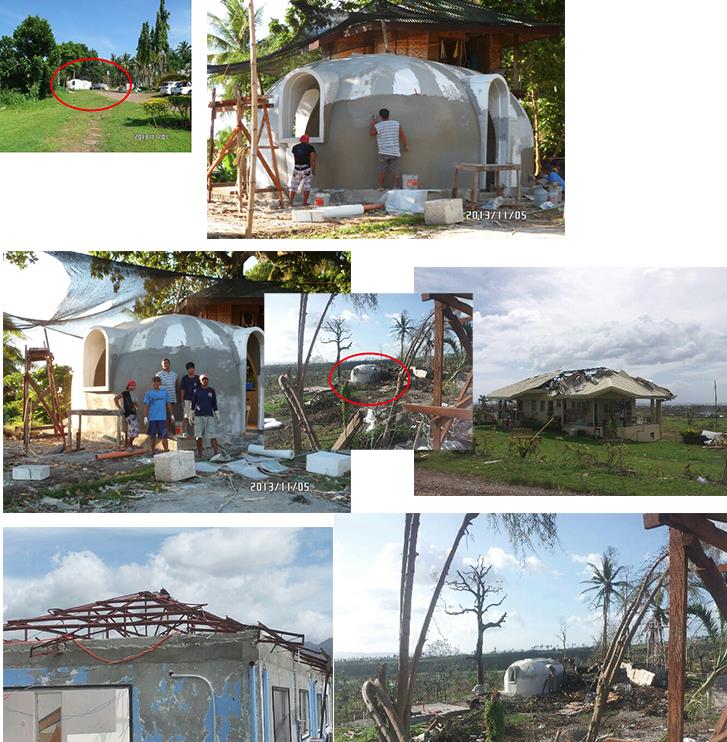

When several house surrounding this dome house in Sth America we damaged or totally destroyed the Dome house remained totally unscathed

---

---

---

---
