Brand New 2014 GE Frame 5PA Gas Turbine Generator - 26MW

Brand New GE Frame 5PA Gas Turbine Generator with additional specifications to enhance your presentation:



Offer: GE Frame 5PA Gas Turbine Generator – 26 MW

Manufacturer: General Electric

Condition: Brand New, Never Installed

Technical Specifications:

Power Output: 26,060 kW (26 Megawatt Hour “MWh”)

Cycle Type: Simple Cycle

Fuel Type: Natural Gas

Combustion System: Dry Low NOx (DLN)

Efficiency: 27.7% (Heat rate @ site rating: 12,807 BTU/kWh)

Exhaust Temperature: 850°F

NOx Emissions: 25 ppmvd at base load

Rotational Speed: 5100 rpm

Design Standards: API 616

Starter Type: Electric Motor Starter

Gear Reducer: Rated 5100/1800 rpm

Exhaust System: Side exhaust included

Fuel System: Natural gas fuel system with operating pressure of 363 PSI

Fuel Specification: 1028 BTU (20,699 BTU/lb, LHV)

Generator Type: GE TEWAC

Generator Rating: 40,000 kVA

Generator Output: 30,000 kW

Voltage & Frequency: 13,800V / 3-phase / 60 Hz

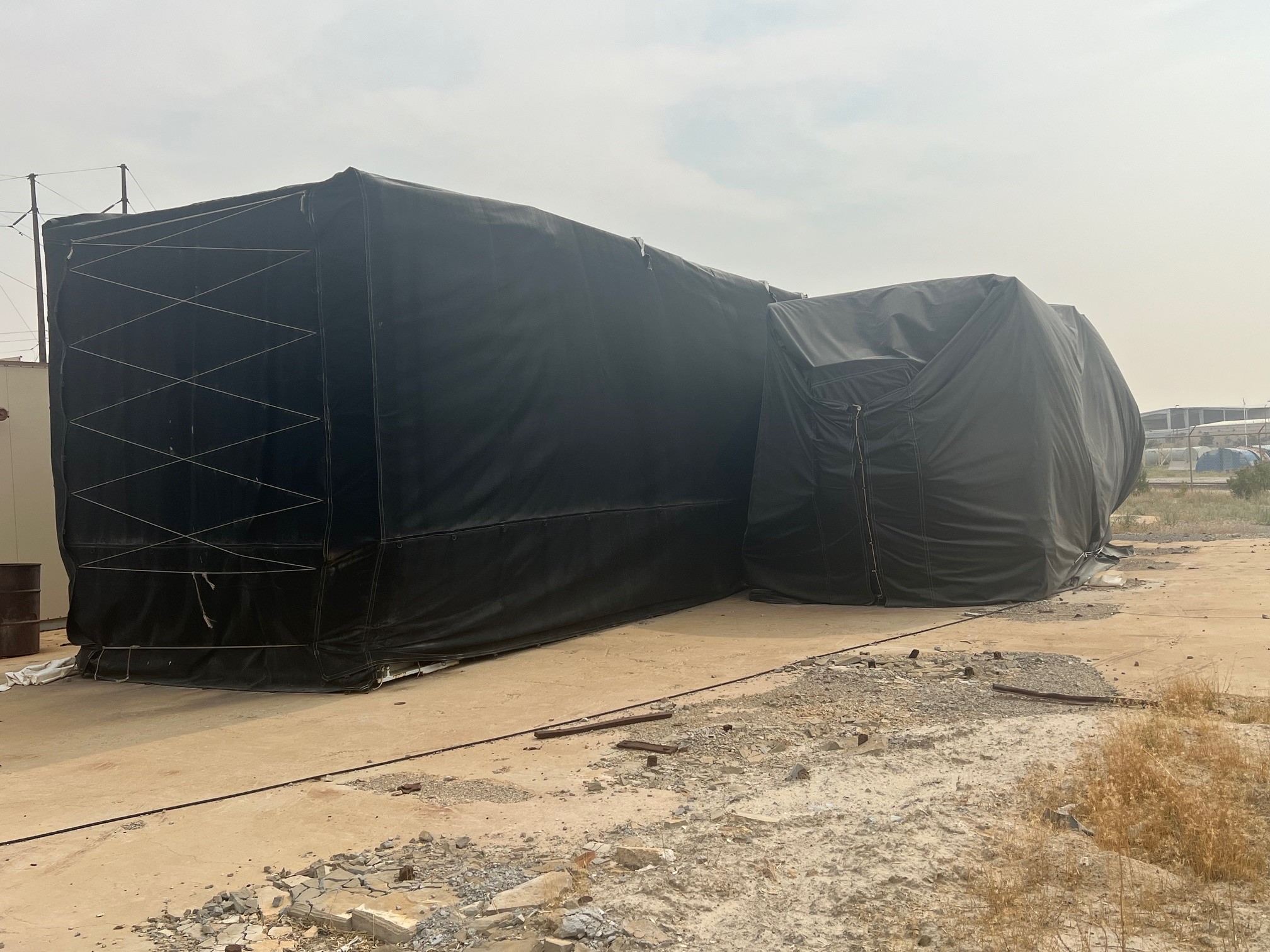

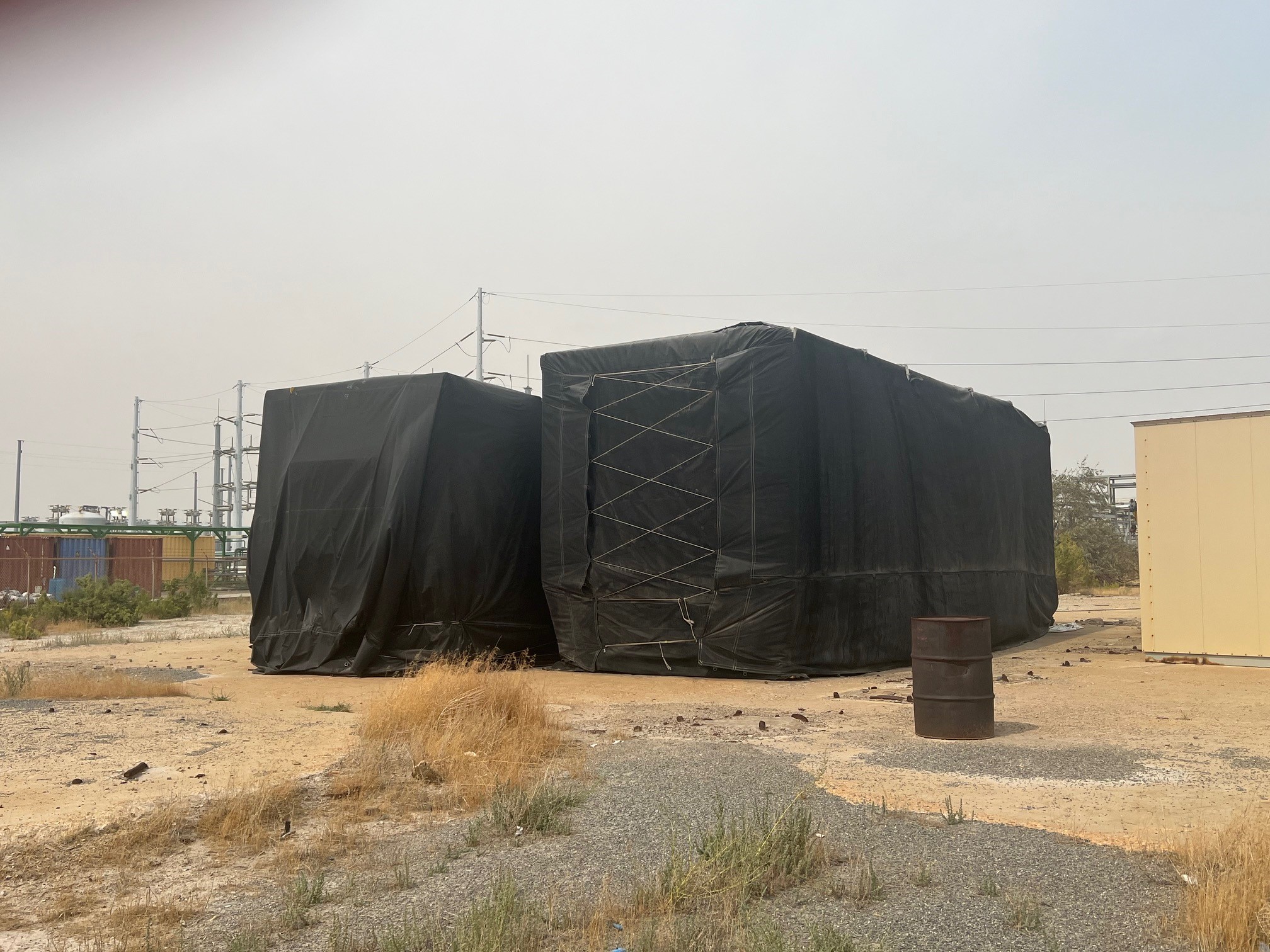

Storage: Stored per GE storage standards

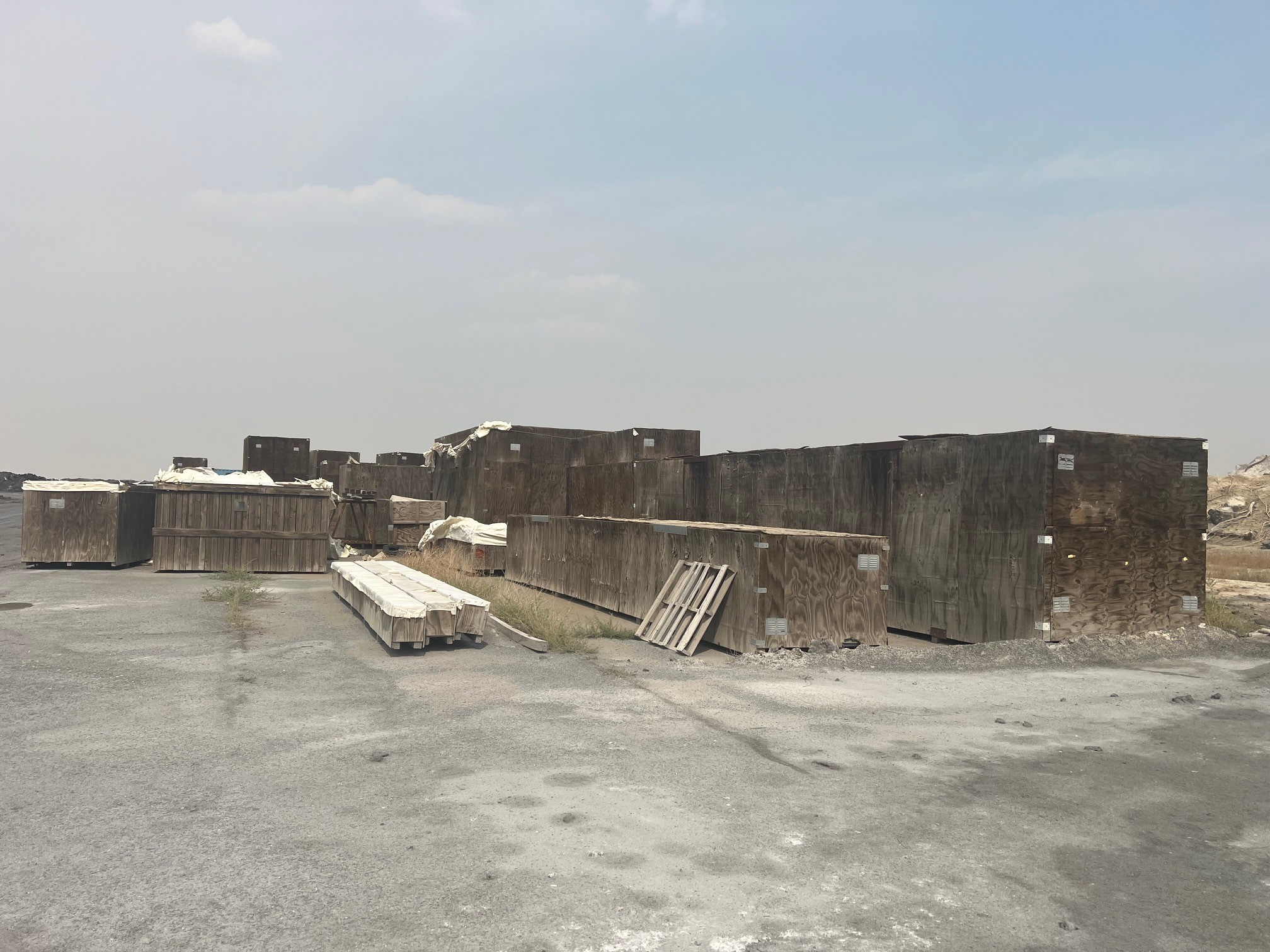

Scope of Supply:

GE Turbine Skid: (39’ L x 12’ W x 13’ H, 200,000 lbs)

Generator Skid: (24’ L x 12’ W x 12’ H, 210,000 lbs)

Inlet System

Exhaust System

All Manuals & Drawings

Additional Benefits:

High Availability & Reliability: Over 350 units sold worldwide with an average fleet availability of 97.56% and reliability of 98.90%.

Enhanced Fuel Flexibility: No impact on combustor’s operability or integrity.

Compact Design: Single lift basement engine and auxiliaries for faster installation.

Long-Term Performance: First commercial unit exceeded 300,000 operating hours.

Pricing:

Replacement Value Today: $42 Million USD

REDUCED TO SELL

Price is $9,950,000



2014 GE Frame 5PA 26MW 60

Please find reply from seller as below



Where will it be delivered to ?



This turbine is located in the West Central USA. It is being sold “As is, where Is”. It is not near port but we can arrange to get it shipped if requested to do so. We obtained a freight quote to ship this to a Southeast USA port for another client that did not proceed. That quote was $220,000. Please keep in mind that this had to be trucked a long distance. This is also big equipment and requires 2 Heavy lift trailers since the Turbine and the Generator each weigh about 200,000 lbs. Shipping will also require 3 or 4 Flatbed trailers for ducting and other auxiliary equipment. We will get you the best quote possible but it depends on port we are delivering to and ships and space available at the time.

What accessories are available,

This is the Standard Delivery package from GE. List is attached and is complete.

Where is it now,

West Central USA

When can it be delivered,

Immediate



We will need 10% Refundable deposit into escrow put a hold on unit and before inspection. I will send you Deposit agreement if ready to proceed. Inspection can be arranged very quickly

Equipment will have to be fully paid for before shipment.

The information does not state

Which generator brand/manufacturer

In the Scope of Supply. It is Brush Generator

---

---

---

---
